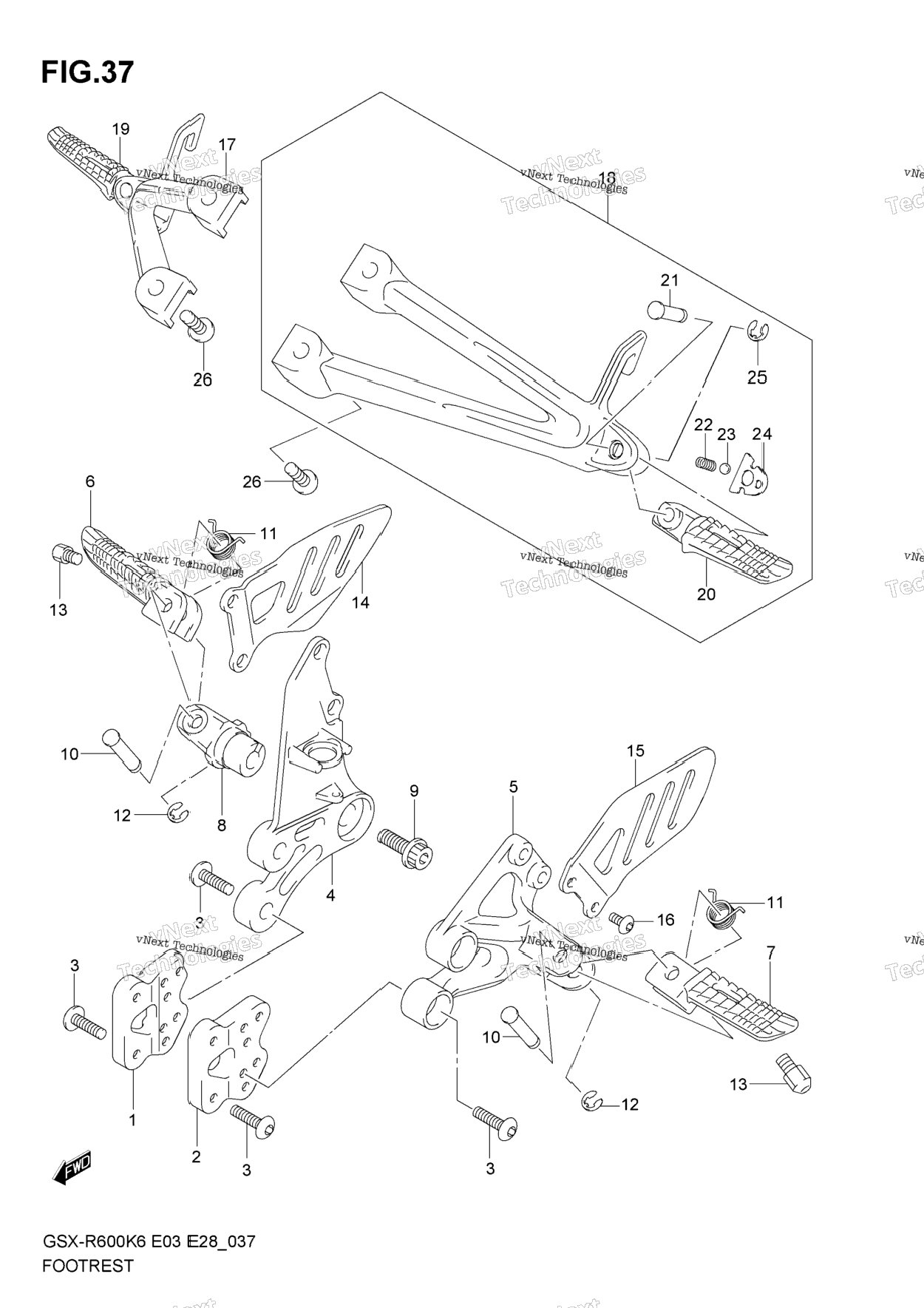

| 1 | 43541-01H00 | BRACKET, FRONT FOOTREST NO.1 RH | 1 шт. | — | |
|
| 2 | 43551-01H01 | BRACKET, FRONT FOOTREST NO.1 LH | 1 шт. | — | |
|
| 4 | 43511-01H01 | BRACKET, FRONT FOOTREST NO.2 RH | 1 шт. | — | |
|
| 5 | 43521-01H00 | BRACKET, FRONT FOOTREST NO.2 LH | 1 шт. | — | |
|
| 6 | 43516-41G00 | BAR, FOOTREST RH | 1 шт. | — | |
|
| 7 | 43526-41G00 | BAR, FOOTREST LH | 1 шт. | — | |
|
| 8 | 43531-41G00 | HOLDER, FOOTREST BAR RH | 1 шт. | — | |
|
| 9 | 09106-10064-A05 | BOLT, RH | 1 шт. | — | |
|
| 10 | 09208-08010-A05 | PIN | 2 шт. | — | |
|
| 11 | 09448-14037-A05 | SPRING | 2 шт. | — | |
|
| 13 | 43576-07D01-A05 | BOLT, BANK SENSOR | 2 шт. | — | |
|
| 14 | 43571-01H00 | GUARD, FOOTREST RH | 1 шт. | — | |
|
| 15 | 43576-41G00 | GUARD, FOOTREST LH | 1 шт. | — | |
|
| 16 | 43577-35F00 | SCREW, LH | 2 шт. | — | |
|
| 17 | 43600-01H00-E00 | FOOTREST ASSY, PILLION RH | 1 шт. | — | |
|
| 18 | 43700-01H00-E00 | FOOTREST ASSY, PILLION LH Includes Item(s) 19 - 25 | 1 шт. | — | |
|
| 19 | 43611-41G00 | BAR, RH | 1 шт. | — | |
|
| 20 | 43621-41G00 | BAR, LH | 1 шт. | — | |
|
| 21 | 09208-08011-A05 | PIN | 2 шт. | — | |
|
| 22 | 09440-05005 | SPRING | 2 шт. | — | |
|
| 23 | 06111-07004 | BALL | 2 шт. | — | |
|
| 24 | 43816-01H01 | PLATE | 2 шт. | — | |
|
| 25 | 08332-1106A | E-RING | 2 шт. | — | |
|
| 25 | 08332-1106A | E-RING | 2 шт. | — | |
|
| 26 | 09106-08181 | BOLT | 8 шт. | — | |
|
| 26 | 09106-08181 | BOLT | 4 шт. | — | |
|
