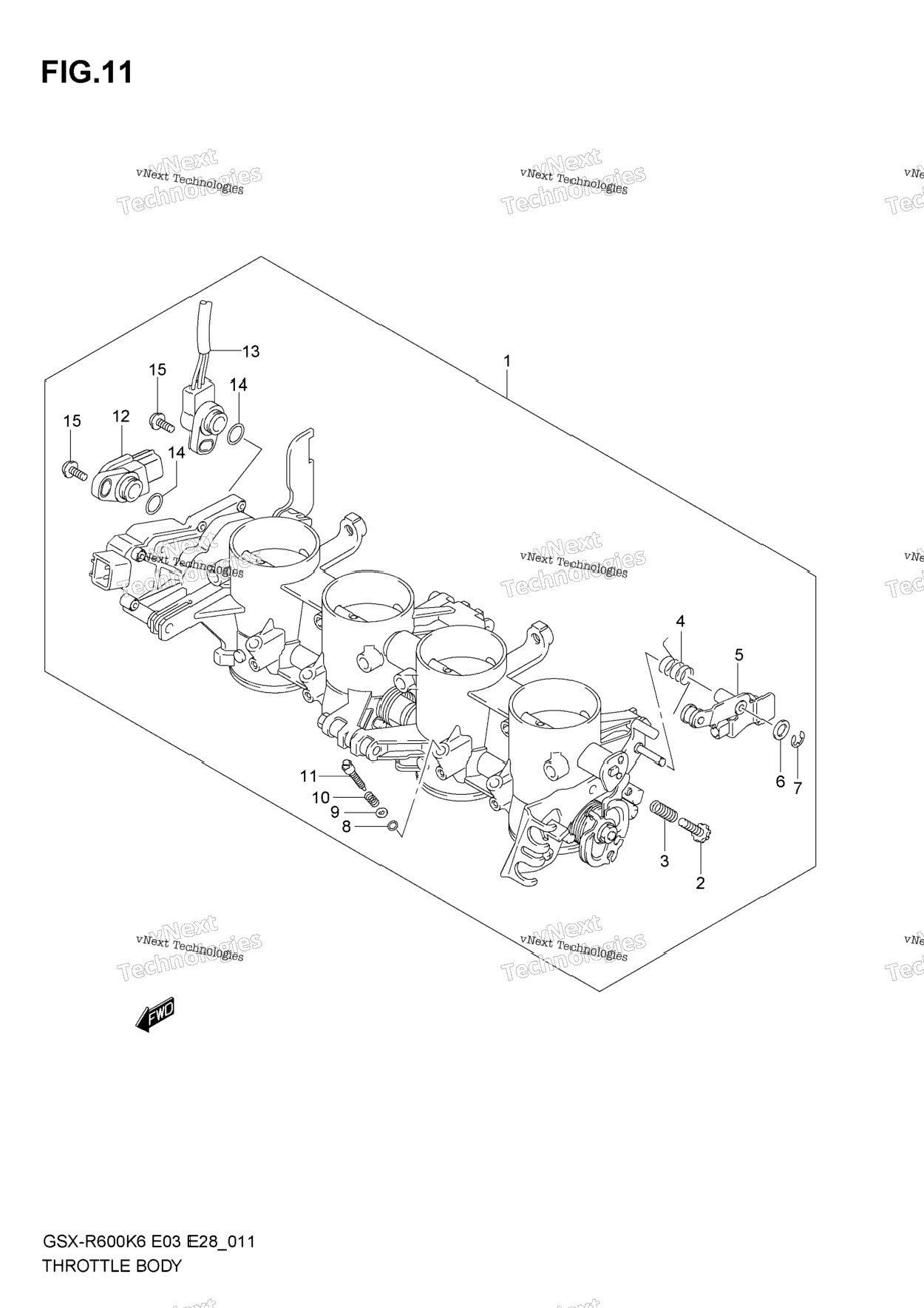

| 1 | 13405-01H00 | BODY ASSY, THROTTLE E3/E28 | 1 шт. | — | |
|
| 2 | 13405-01H10 | BODY ASSY, THROTTLE E33; Includes Item(s) 2 - 15 | 1 шт. | — | |
|
| 3 | 13267-20E20 | SCREW | 1 шт. | — | |
|
| 4 | 13268-054A0 | SPRING | 1 шт. | — | |
|
| 5 | 13426-29G00 | TORSION SPRING | 1 шт. | — | |
|
| 6 | 13420-44G00 | LEVER ASSY | 1 шт. | — | |
|
| 7 | 13427-29G00 | PACKING | 1 шт. | — | |
|
| 8 | 13424-29G00 | E RING | 1 шт. | — | |
|
| 9 | 13295-29900 | O RING | 4 шт. | — | |
|
| 10 | 13606-47A00 | WASHER | 4 шт. | — | |
|
| 11 | 13268-48700 | .SPRING, THROTTLE SCREW | 4 шт. | — | |
|
| 12 | 13269-33E00 | SCREW | 4 шт. | — | |
|
| 13 | 13580-29G00 | SENSOR ASSY | 1 шт. | — | |
|
| 14 | 13580-40F30 | SENSOR ASSY | 1 шт. | — | |
|
| 15 | 13575-29G00 | O RING | 2 шт. | — | |
|
| 16 | 13605-02F00 | SCREW | 2 шт. | — | |
|
