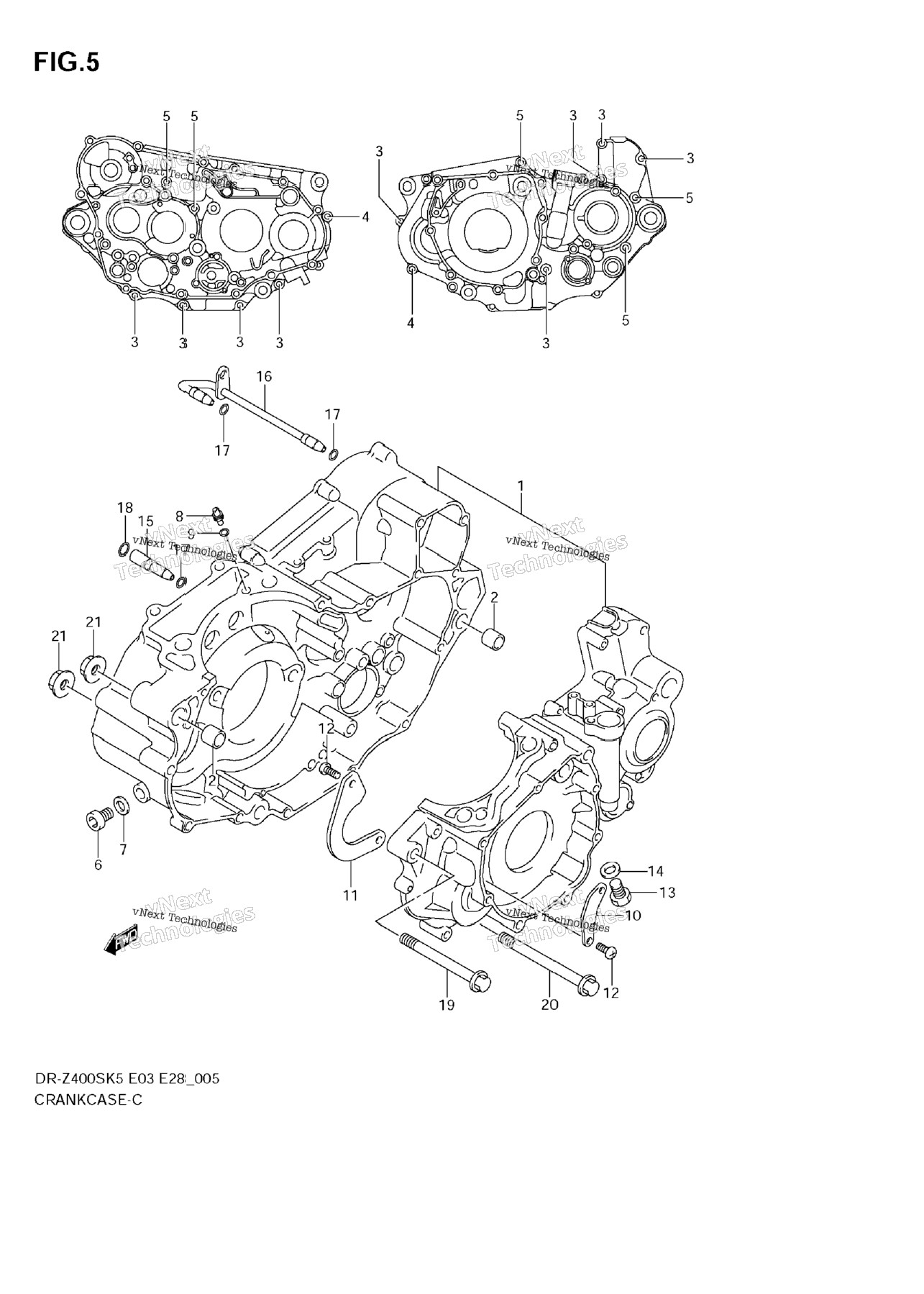

| 1 | 11301-29851 | CRANKCASE SET MODEL K5 | 1 шт. | — | |
|
| 1 | 11301-29852 | CRANKCASE SET MODEL K6 | 1 шт. | — | |
|
| 1 | 11301-29853 | CRANKCASE SET MODEL K7/K8/K9; Includes Item(s) 2 - 12 | 1 шт. | — | |
|
| 2 | 04211-13189 | PIN | 2 шт. | — | |
|
| 3 | 01547-0640B | BOLT MODEL K5/K6 | 9 шт. | — | |
|
| 3 | 01547-0640A | BOLT MODEL K7/K8/K9 | 9 шт. | — | |
|
| 4 | 01547-0655B | BOLT MODEL K5/K6 | 2 шт. | — | |
|
| 4 | 01547-0655A | BOLT MODEL K7/K8/K9 | 2 шт. | — | |
|
| 5 | 01547-0670B | BOLT MODEL K5/K6 | 5 шт. | — | |
|
| 5 | 01547-0670A | BOLT MODEL K7/K8/K9 | 5 шт. | — | |
|
| 6 | 09248-10010 | PLUG (10X10) | 1 шт. | — | |
|
| 7 | 09168-10002 | GASKET (10X14X3.6) | 1 шт. | — | |
|
| 8 | 09493-80005 | JET (#80) | 1 шт. | — | |
|
| 9 | 09280-04004 | O RING (D:1.2,ID:4) | 1 шт. | — | |
|
| 10 | 11323-29F00 | .SEPARATOR CRANKCASE OIL NO.1 | 1 шт. | — | |
|
| 11 | 11324-29F00 | .SEPARATOR CRANKCASE OIL NO.2 | 1 шт. | — | |
|
| 12 | 09125-06110 | SCREW, SEPARATOR | 4 шт. | — | |
|
| 13 | 09247-12011 | PLUG, OIL DRAIN | 1 шт. | — | |
|
| 14 | 09168-12002 | GASKET | 1 шт. | — | |
|
| 15 | 11451-29F00 | PIPE OIL INNER NO.1 | 1 шт. | — | |
|
| 16 | 11460-29F00 | PIPE T/M OIL INNER NO.2 | 1 шт. | — | |
|
| 17 | 09280-05004 | O-RING (D:1.9 ID:4.8) | 3 шт. | — | |
|
| 18 | 09280-07004 | O-RING (D:1.9 ID:6.8) | 1 шт. | — | |
|
| 19 | 09103-10110 | BOLT (10X100) | 1 шт. | — | |
|
| 20 | 09103-10063 | BOLT (10X115) | 1 шт. | — | |
|
| 21 | 09159-10058 | NUT MODEL K5/K6/K7 | 2 шт. | — | |
|
| 21 | 09159-10115 | NUT MODEL K8/K9 | 2 шт. | — | |
|
