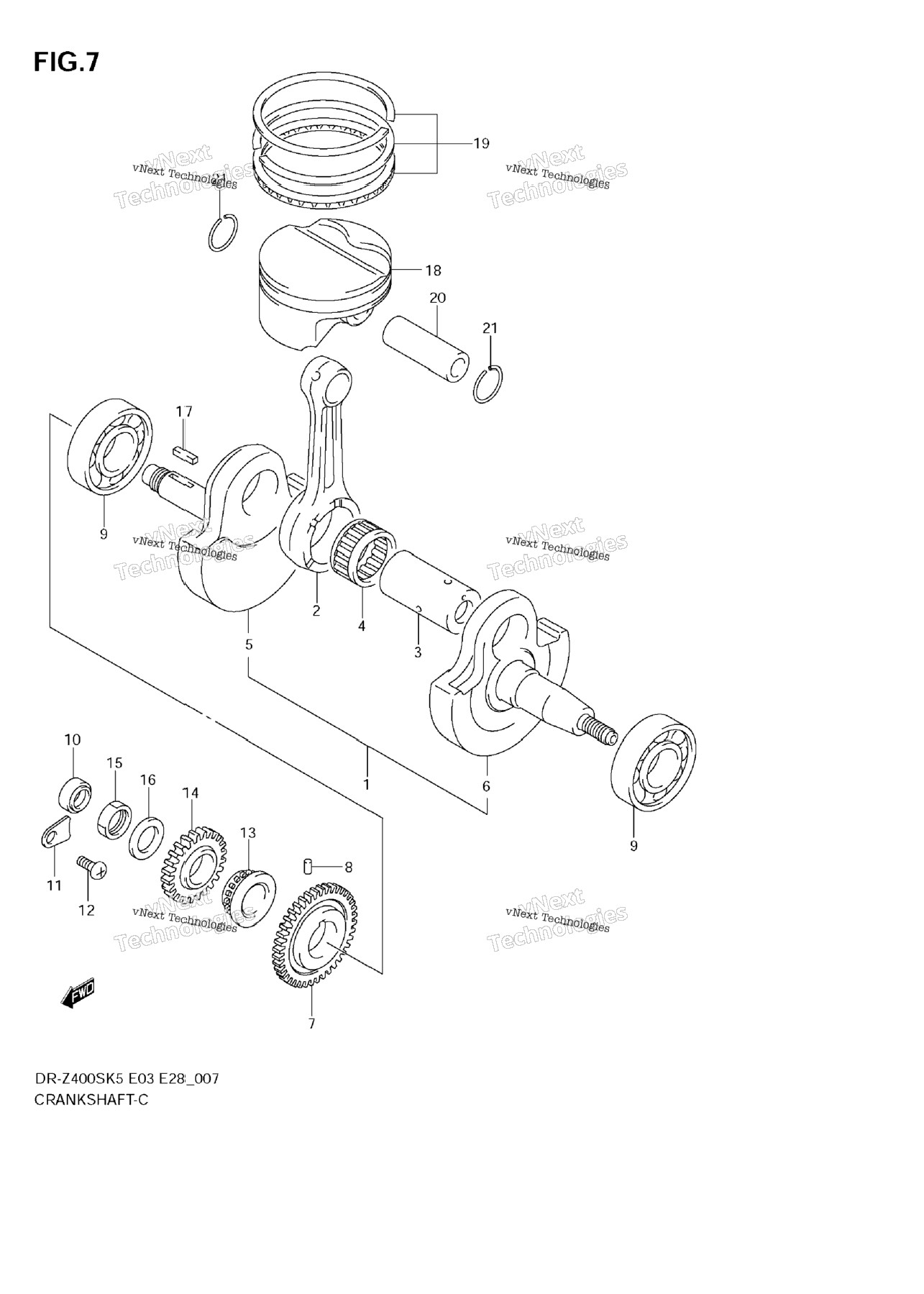

| 1 | 12200-07G00 | CRANKSHAFT ASSY MODEL K5/K6/K7 | 1 шт. | — | |
|
| 1 | 12200-07G02 | CRANKSHAFT ASSY MODEL K8/K9; Includes Item(s) 2 - 6 | 1 шт. | — | |
|
| 2 | 12160-29F01-0B0 | ROD, CONNECTING | 1 шт. | — | |
|
| 3 | 12210-29F10 | PIN | 1 шт. | — | |
|
| 4 | 09263-35035-0B0 | BEARING MODEL K5/K6/K7 | 1 шт. | — | |
|
| 4 | 09263-35044-0B0 | BEARING MODEL K8/K9 | 1 шт. | — | |
|
| 5 | 12221-07G01 | .CRANKSHAFT R | 0 шт. | — | |
|
| 6 | 12261-07G00 | .CRANKSHAFT L | 0 шт. | — | |
|
| 7 | 12661-29F00 | GEAR CRANK BALANCER DRIVE (NT | 1 шт. | — | |
|
| 8 | 09261-05005 | PIN | 1 шт. | — | |
|
| 9 | 09262-30100 | BEARING | 2 шт. | — | |
|
| 10 | 09282-14003 | SEAL OIL (14X24X6) | 1 шт. | — | |
|
| 11 | 24742-18A00 | RETAINER BEARING | 1 шт. | — | |
|
| 12 | 02112-0612B | SCREW | 1 шт. | — | |
|
| 13 | 12731-29F10 | SPROCKET CAM CHAIN DRIVE (NT: | 1 шт. | — | |
|
| 14 | 21111-29F10 | GEAR PRIMARY DRIVE (NT:25) | 1 шт. | — | |
|
| 15 | 09140-18012 | NUT | 1 шт. | — | |
|
| 16 | 09164-18008 | LOCK WASHER | 1 шт. | — | |
|
| 17 | 09421-05002 | KEY, GEAR | 1 шт. | — | |
|
| 18 | 12111-29F00-0F0 | PISTON | 1 шт. | — | |
|
| 19 | 12140-29F00 | RING SET PISTON | 1 шт. | — | |
|
| 20 | 12151-24F10 | PIN PISTON | 1 шт. | — | |
|
| 21 | 09381-20004 | CIRCLIP | 2 шт. | — | |
|
