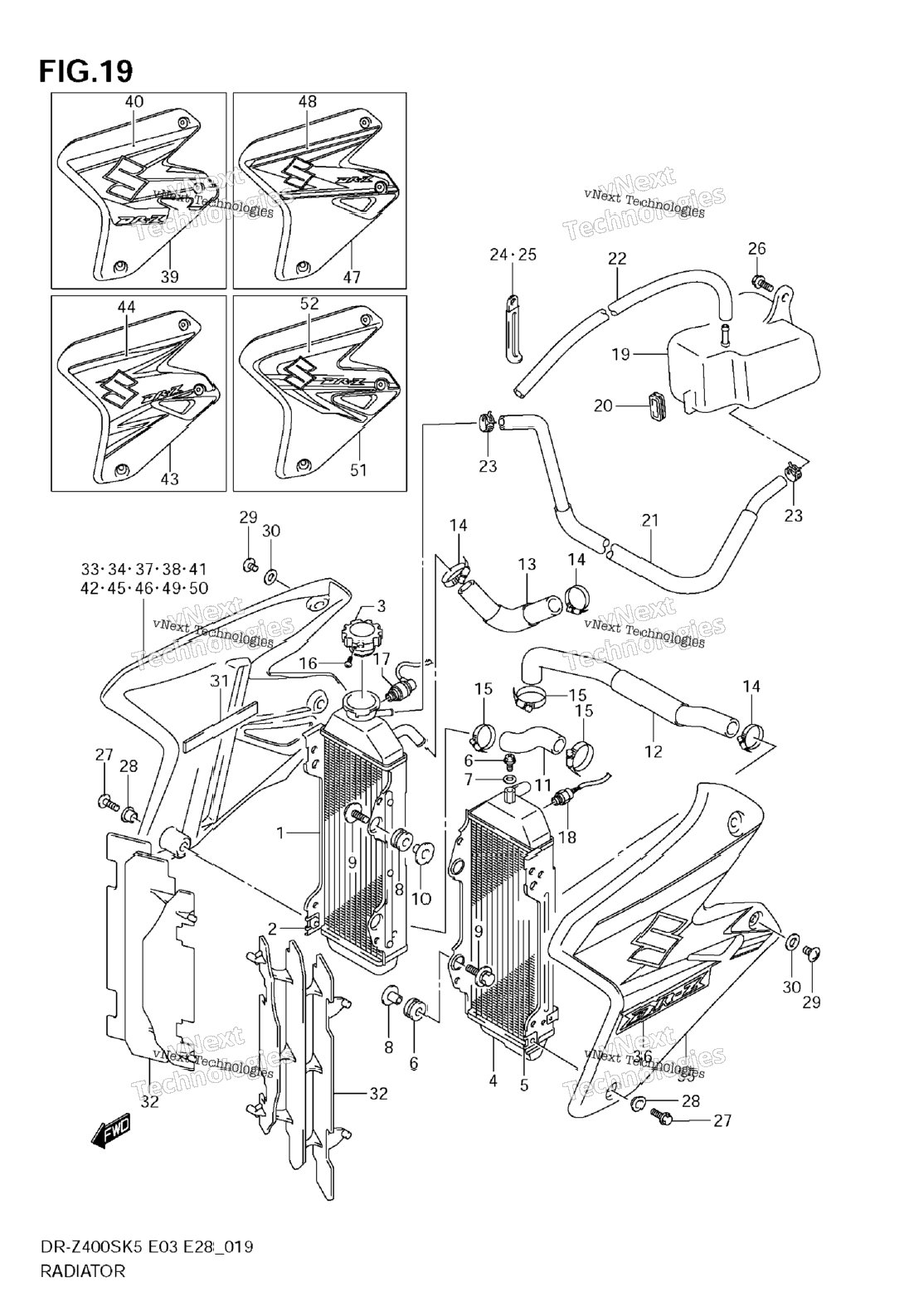

| 1 | 17710-29F11 | RADIATOR, RH MODEL K5/K6/K7 | 1 шт. | — | |
|
| 2 | 17710-29F40 | RADIATOR WATER R MODEL K8/K9; Includes Item(s) 2 | 1 шт. | — | |
|
| 3 | 09148-06015 | NUT | 1 шт. | — | |
|
| 4 | 17730-19D11 | CAP RADIATOR (1.1) | 1 шт. | — | |
|
| 5 | 17720-29F12 | RADIATOR, LH MODEL K5/K6/K7 | 1 шт. | — | |
|
| 6 | 17720-29F40 | RADIATOR WATER L MODEL K8/K9; Includes Item(s) 5 | 1 шт. | — | |
|
| 7 | 09148-06015 | NUT | 1 шт. | — | |
|
| 8 | 17568-50F00 | BOLT, AIR RELEASE | 1 шт. | — | |
|
| 9 | 09168-06026 | GASKET, AIR RELEASE | 1 шт. | — | |
|
| 10 | 17787-19A00 | CUSHION RADIATOR LWR | 4 шт. | — | |
|
| 11 | 09116-06147 | BOLT (6X25) | 4 шт. | — | |
|
| 12 | 09180-06243 | SPACER | 4 шт. | — | |
|
| 13 | 17851-29F10 | HOSE RADIATOR INLET | 1 шт. | — | |
|
| 14 | 17852-29F30 | HOSE RADIATOR OUTLET | 1 шт. | — | |
|
| 15 | 17853-29F10 | HOSE RADIATOR JOINT | 1 шт. | — | |
|
| 16 | 09402-28513 | CLAMP | 3 шт. | — | |
|
| 17 | 09402-32512 | CLAMP | 3 шт. | — | |
|
| 18 | 17733-03D10 | SCREW RADIATOR CAP | 1 шт. | — | |
|
| 19 | 34850-03D00 | SWITCH ASSY, WATER TEMP MODEL K5/K6/K7 | 1 шт. | — | |
|
| 20 | 34850-29F00 | SWITCH ASSY WATER TEMP MODEL K8/K9 | 1 шт. | — | |
|
| 21 | 17680-24A30 | SWITCH FAN | 1 шт. | — | |
|
| 22 | 17911-29F11 | TANK RESERVOIR | 1 шт. | — | |
|
| 23 | 17913-29F00 | CUSHION RESERVOIR TANK | 1 шт. | — | |
|
| 24 | 17981-29F01 | HOSE RESERVOIR TANK INLET | 1 шт. | — | |
|
| 25 | 09352-50901-00B | HOSE, OVERFLOW L:2000!650 | 1 шт. | — | |
|
| 26 | 09401-08411 | CLIP | 2 шт. | — | |
|
| 27 | 09404-08205 | CLAMP, RESERVOIR HOSE | 1 шт. | — | |
|
| 28 | 09404-06429 | CLAMP, RESERVOIR INLET HOSE | 1 шт. | — | |
|
| 29 | 01550-0612B | BOLT | 1 шт. | — | |
|
| 30 | 02142-06163 | SCREW MODEL K5 | 2 шт. | — | |
|
| 31 | 09103-06274 | SCREW, 6X12 MODEL K6/K7/K8/K9 | 2 шт. | — | |
|
| 32 | 09169-06060 | WASHER MODEL K5 | 2 шт. | — | |
|
| 33 | 09169-06053 | WASHER MODEL K6/K7/K8/K9 | 2 шт. | — | |
|
| 34 | 02142-06083 | SCREW, TANK SIDE MODEL K5 | 4 шт. | — | |
|
| 35 | 09103-06275 | SCREW, 6X12 MODEL K6/K7/K8/K9 | 4 шт. | — | |
|
| 36 | 09160-06124 | WASHER (6.5X14X1.6) MODEL K5 | 4 шт. | — | |
|
| 37 | 09160-06125 | WASHER (6.5X14X1.6) MODEL K6/K7/K8/K9 | 4 шт. | — | |
|
| 38 | 47451-38A01 | CUSHION TOOL HOLDER | 1 шт. | — | |
|
| 39 | 17831-37E11 | LOUVER RADIATOR | 1 шт. | — | |
|
| 40 | 17760-29F70-YJ4 | COVER, RADIATOR RH (BLUE) MODEL K5 FOR N9J | 0 шт. | — | |
|
| 41 | 17760-29F70-YU1 | COVER, RADIATOR RH (YELLOW) MODEL K5 FOR YU1; Includes Item(s) 34 - 34 | 0 шт. | — | |
|
| 42 | 68665-29F70-YHU | TAPE, RADIATOR COVER RH MODEL K5 FOR N9J | 0 шт. | — | |
|
| 43 | 68665-29F70-YHB | TAPE, RADIATOR COVER RH MODEL K5 FOR YU1 | 0 шт. | — | |
|
| 44 | 17770-29F70-YJ4 | COVER, RADIATOR LH (BLUE) MODEL K5 FOR N9J | 0 шт. | — | |
|
| 45 | 17770-29F70-YU1 | COVER, RADIATOR LH (YELLOW) MODEL K5 FOR YU1; Includes Item(s) 36 - 36 | 0 шт. | — | |
|
| 46 | 68675-29F70-YHU | TAPE, RADIATOR COVER LH MODEL K5 FOR N9J | 0 шт. | — | |
|
| 47 | 68675-29F70-YHB | TAPE, RADIATOR COVER LH MODEL K5 FOR YU1 | 0 шт. | — | |
|
| 48 | 17760-29F90-YJ4 | COVER, RADIATOR RH (BLUE) MODEL K6 FOR N9J | 0 шт. | — | |
|
| 49 | 17760-29F90-YU1 | COVER, RADIATOR RH (YELLOW) MODEL K6 FOR YU1; Includes Item(s) 38 - 38 | 0 шт. | — | |
|
| 50 | 68665-29F90-CLV | TAPE, RADIATOR COVER RH MODEL K6 FOR N9J | 0 шт. | — | |
|
| 51 | 68665-29F90-CET | TAPE, RADIATOR COVER RH MODEL K6 FOR YU1 | 0 шт. | — | |
|
| 52 | 17770-29F90-YJ4 | COVER, RADIATOR LH (BLUE) MODEL K6 FOR N9J | 0 шт. | — | |
|
| 53 | 17770-29F90-YU1 | COVER, RADIATOR LH (YELLOW) MODEL K6 FOR YU1; Includes Item(s) 40 - 40 | 0 шт. | — | |
|
| 54 | 68675-29F90-CLV | TAPE, RADIATOR COVER LH MODEL K6 FOR N9J | 0 шт. | — | |
|
| 55 | 68675-29F90-CET | TAPE, RADIATOR COVER LH MODEL K6 FOR YU1 | 0 шт. | — | |
|
| 56 | 17760-29FA0-YLW | COVER, RADIATOR RH (BLUE) MODEL K7 FOR N9J | 0 шт. | — | |
|
| 57 | 17760-29FA0-YU1 | COVER, RADIATOR RH (YELLOW) MODEL K7 FOR YU1; Includes Item(s) 42 - 42 | 1 шт. | — | |
|
| 58 | 68665-29FA0-DUR | TAPE, RADIATOR COVER RH MODEL K7 FOR N9J | 0 шт. | — | |
|
| 59 | 68665-29FA0-DRA | TAPE, RADIATOR COVER RH MODEL K7 FOR YU1 | 1 шт. | — | |
|
| 60 | 17770-29FA0-YLW | COVER, RADIATOR LH (BLUE) MODEL K7 FOR N9J | 0 шт. | — | |
|
| 61 | 17770-29FA0-YU1 | COVER, RADIATOR LH (YELLOW) MODEL K7 FOR YU1; Includes Item(s) 44 - 44 | 1 шт. | — | |
|
| 62 | 68675-29FA0-DUR | TAPE, RADIATOR COVER LH MODEL K7 FOR N9J | 0 шт. | — | |
|
| 63 | 68675-29FA0-DRA | TAPE, RADIATOR COVER LH MODEL K7 FOR YU1 | 1 шт. | — | |
|
| 64 | 17760-29FC0-019 | COVER, RADIATOR RH (BLACK) MODEL K8 FOR 019 | 0 шт. | — | |
|
| 65 | 17760-29FC0-YLW | COVER, RADIATOR RH (BLUE) MODEL K8 FOR YKY; Includes Item(s) 46 - 46 | 0 шт. | — | |
|
| 66 | 68665-29FD0-EVF | TAPE, RADIATOR RH MODEL K8 FOR 019 | 0 шт. | — | |
|
| 67 | 68665-29FD0-EVK | TAPE, RADIATOR RH MODEL K8 FOR YKY | 0 шт. | — | |
|
| 68 | 17770-29FC0-019 | COVER, RADIATOR LH (BLACK) MODEL K8 FOR 019 | 1 шт. | — | |
|
| 69 | 17770-29FC0-YLW | COVER, RADIATOR LH (BLUE) MODEL K8 FOR YKY; Includes Item(s) 48 - 48 | 0 шт. | — | |
|
| 70 | 68675-29FD0-EVF | TAPE, RADIATOR COVER LH MODEL K8 FOR 019 | 0 шт. | — | |
|
| 71 | 68675-29FD0-EVK | TAPE, RADIATOR COVER LH MODEL K8 FOR YKY | 0 шт. | — | |
|
| 72 | 17760-29FG0-019 | COVER, RADIATOR RH (BLACK) MODEL K9 | 0 шт. | — | |
|
| 73 | 17760-29FG0-30H | COVER, RADIATOR RH (WHITE) MODEL K9; Includes Item(s) 50 - 50 | 0 шт. | — | |
|
| 74 | 68665-29FG0-GFJ | TAPE, RADIATOR COVER RH MODEL K9 FOR 019 | 0 шт. | — | |
|
| 75 | 68665-29FG0-GFK | TAPE, RADIATOR COVER RH MODEL K9 FOR 30H | 0 шт. | — | |
|
| 76 | 17770-29FG0-019 | COVER, RADIATOR LH (BLACK) MODEL K9 | 0 шт. | — | |
|
| 77 | 17770-29FG0-30H | COVER, RADIATOR LH (WHITE) MODEL K9; Includes Item(s) 52 - 52 | 0 шт. | — | |
|
| 78 | 68675-29FG0-GFJ | TAPE, RADIATOR COVER LH MODEL K9 FOR 019 | 0 шт. | — | |
|
| 79 | 68675-29FG0-GFK | TAPE, RADIATOR COVER LH MODEL K9 FOR 30H | 0 шт. | — | |
|
