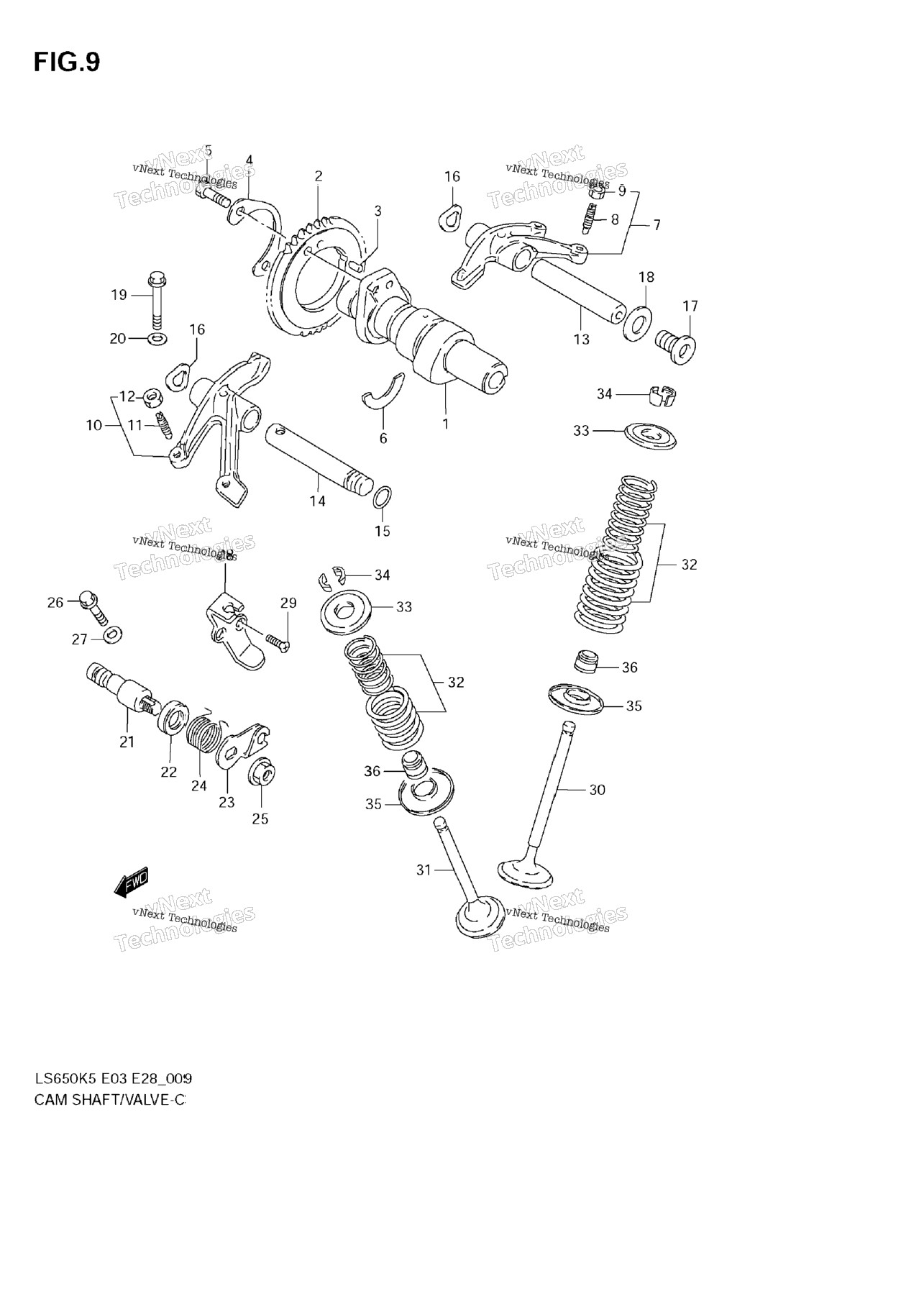

| 1 | 12711-24B11 | CAM SHAFT | 1 шт. | — | |
|
| 2 | 12741-24B00 | SPROCKET (NT:38) | 1 шт. | — | |
|
| 3 | 09261-05009 | PIN | 1 шт. | — | |
|
| 4 | 12747-44001 | WASHER | 1 шт. | — | |
|
| 5 | 09111-06053 | BOLT (6X16) | 2 шт. | — | |
|
| 6 | 09390-25003 | C RING | 1 шт. | — | |
|
| 7 | 12840-24B10 | ARM, VALVE ROCKER INTAKE Includes Item(s) 8 - 9 | 1 шт. | — | |
|
| 10 | 12850-24B10 | ARM, VALVE ROCKER EXHAUST Includes Item(s) 11 - 12 | 1 шт. | — | |
|
| 11 | 12842-32411 | .SCREW, TAPPET ADJUSTING | 2 шт. | — | |
|
| 11 | 12842-32411 | .SCREW, TAPPET ADJUSTING | 2 шт. | — | |
|
| 12 | 12843-32400 | .NUT, ADJUSTING SCREW | 2 шт. | — | |
|
| 12 | 12843-32400 | .NUT, ADJUSTING SCREW | 2 шт. | — | |
|
| 13 | 12861-12D00 | SHAFT, ROCKER ARM INTAKE L:73 | 1 шт. | — | |
|
| 14 | 12871-14A00 | SHAFT, ROCKER ARM EXHAUST L:78.5 | 1 шт. | — | |
|
| 15 | 09280-09005 | .O RING (D:1.9,ID:8.6) | 1 шт. | — | |
|
| 16 | 09164-12018 | WASHER | 2 шт. | — | |
|
| 17 | 09248-14005 | PLUG, ROCKER ARM SHAFT | 1 шт. | — | |
|
| 18 | 09168-14002 | .GASKET (13.8X18.8X4.8) | 1 шт. | — | |
|
| 19 | 02162-0630B | BOLT, SHAFT EXHAUST | 0 шт. | — | |
|
| 21 | 12941-24B01 | SHAFT, DECOMP | 1 шт. | — | |
|
| 22 | 09282-10012 | OIL SEAL (10X20X6) | 1 шт. | — | |
|
| 23 | 12942-24B00 | LEVER, DECOMP SHAFT | 0 шт. | — | |
|
| 24 | 09448-17020 | SPRING | 0 шт. | — | |
|
| 25 | 08316-1008B | .NUT | 1 шт. | — | |
|
| 26 | 09103-06090 | BOLT (6X16) | 1 шт. | — | |
|
| 27 | 09168-06023 | GASKET | 1 шт. | — | |
|
| 27 | 09168-06023 | GASKET | 1 шт. | — | |
|
| 28 | 12944-24B00 | HOLDER, DECOMP CABLE | 1 шт. | — | |
|
| 29 | 02122-0510B | SCREW | 0 шт. | — | |
|
| 30 | 12911-24B01 | VALVE, INTAKE | 2 шт. | — | |
|
| 31 | 12912-24B01 | VALVE, EXHAUST | 2 шт. | — | |
|
| 32 | 12920-37402 | SPRING SET, VALVE | 4 шт. | — | |
|
| 33 | 12931-45001 | RETAINER, SPRING | 4 шт. | — | |
|
| 34 | 12932-82000 | COTTER, VALVE | 8 шт. | — | |
|
| 35 | 12933-37400 | SEAT, SPRING | 4 шт. | — | |
|
| 36 | 09289-07002 | OIL SEAL (7X14.4X9) | 4 шт. | — | |
|
