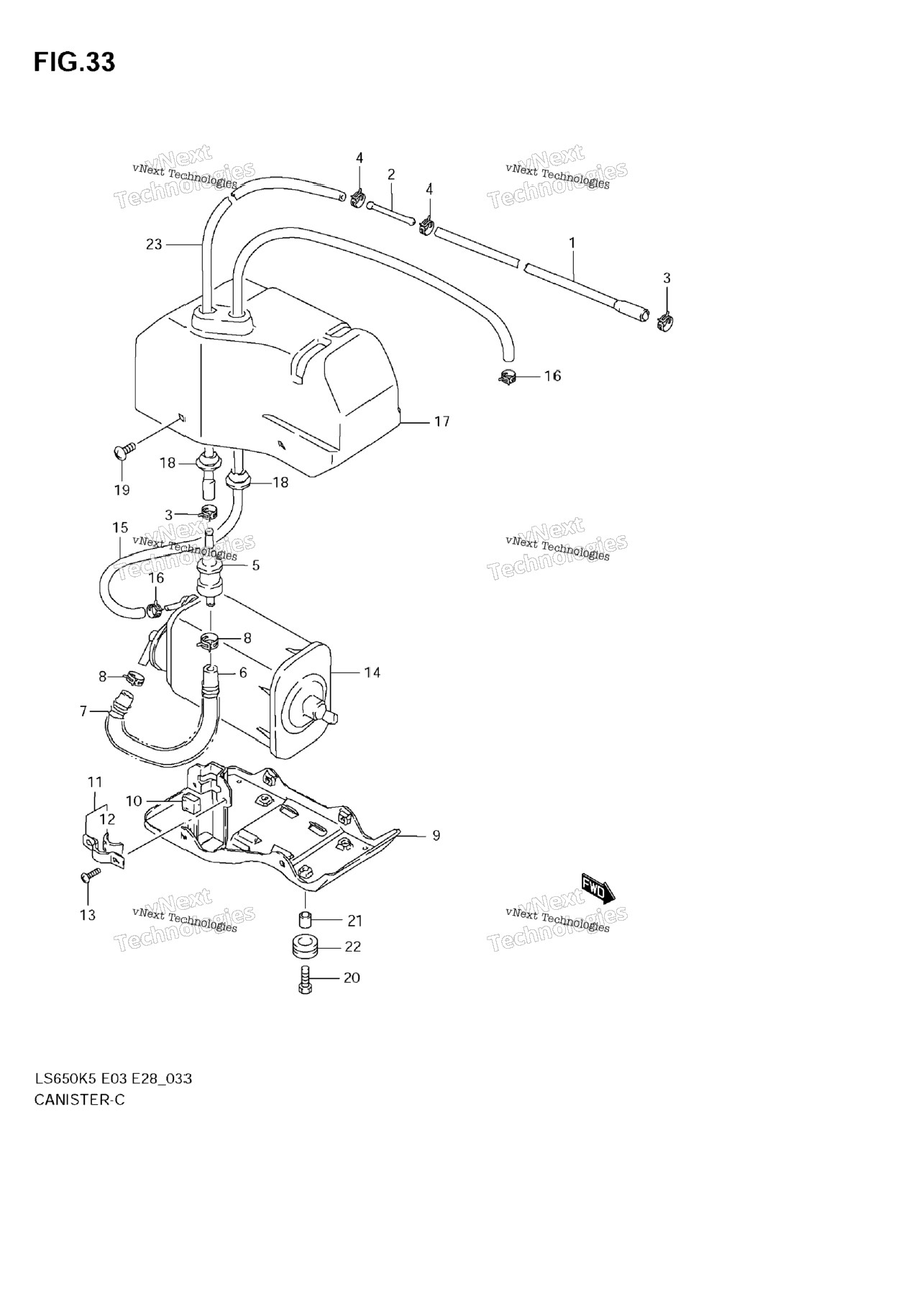

| 1 | 44998-24BA0 | HOSE, NO.3 MODEL K8/K9 | 1 шт. | — | |
|
| 2 | 09364-04002 | JOINT | 0 шт. | — | |
|
| 3 | 09401-08411 | CLIP | 2 шт. | — | |
|
| 5 | 44240-38A00 | VALVE, BREATHER | 1 шт. | — | |
|
| 6 | 09343-05403 | HOSE, NO.1 MODEL K5/K6/K7 | 1 шт. | — | |
|
| 6 | 44996-24BA0 | HOSE, NO.1 MODEL K8/K9 | 0 шт. | — | |
|
| 7 | 09440-13041 | SPRING | 1 шт. | — | |
|
| 8 | 09401-11413 | CLIP | 2 шт. | — | |
|
| 9 | 44880-24B00 | PLATE, FITTING Includes Item(s) 10 | 0 шт. | — | |
|
| 11 | 44892-24A00 | PLATE FUEL TANK BREATHER NO.2 Includes Item(s) 12 | 1 шт. | — | |
|
| 12 | 44894-24A00 | CUSHION (10X30X2) | 1 шт. | — | |
|
| 12 | 44894-24A00 | CUSHION (10X30X2) | 1 шт. | — | |
|
| 13 | 02142-0410B | SCREW | 0 шт. | — | |
|
| 14 | 17210-24B00 | CANISTER ASSY | 0 шт. | — | |
|
| 15 | 44999-24BA0 | HOSE, NO.4 MODEL K8/K9 | 0 шт. | — | |
|
| 16 | 09401-06405 | CLIP | 2 шт. | — | |
|
| 16 | 09401-06405 | CLIP | 2 шт. | — | |
|
| 17 | 44991-24B00 | COVER, CANISTER | 0 шт. | — | |
|
| 18 | 09308-07004 | GROMMET | 2 шт. | — | |
|
| 19 | 02142-0610B | SCREW | 4 шт. | — | |
|
| 20 | 09116-06168 | BOLT, LOWER | 4 шт. | — | |
|
| 21 | 09180-06260 | SPACER | 4 шт. | — | |
|
| 22 | 09320-08021 | CUSHION | 4 шт. | — | |
|
| 23 | 44911-43500 | HOSE, NO.2 MODEL K5/K6/K7 | 0 шт. | — | |
|
| 23 | 44997-24BA0 | HOSE, NO.2 MODEL K8/K9 | 0 шт. | — | |
|
| 23 | 44911-43500 | HOSE, NO.3 MODEL K5/K6/K7 | 0 шт. | — | |
|
| 23 | 44911-43500 | HOSE, NO.4 MODEL K5/K6/K7 | 0 шт. | — | |
|
