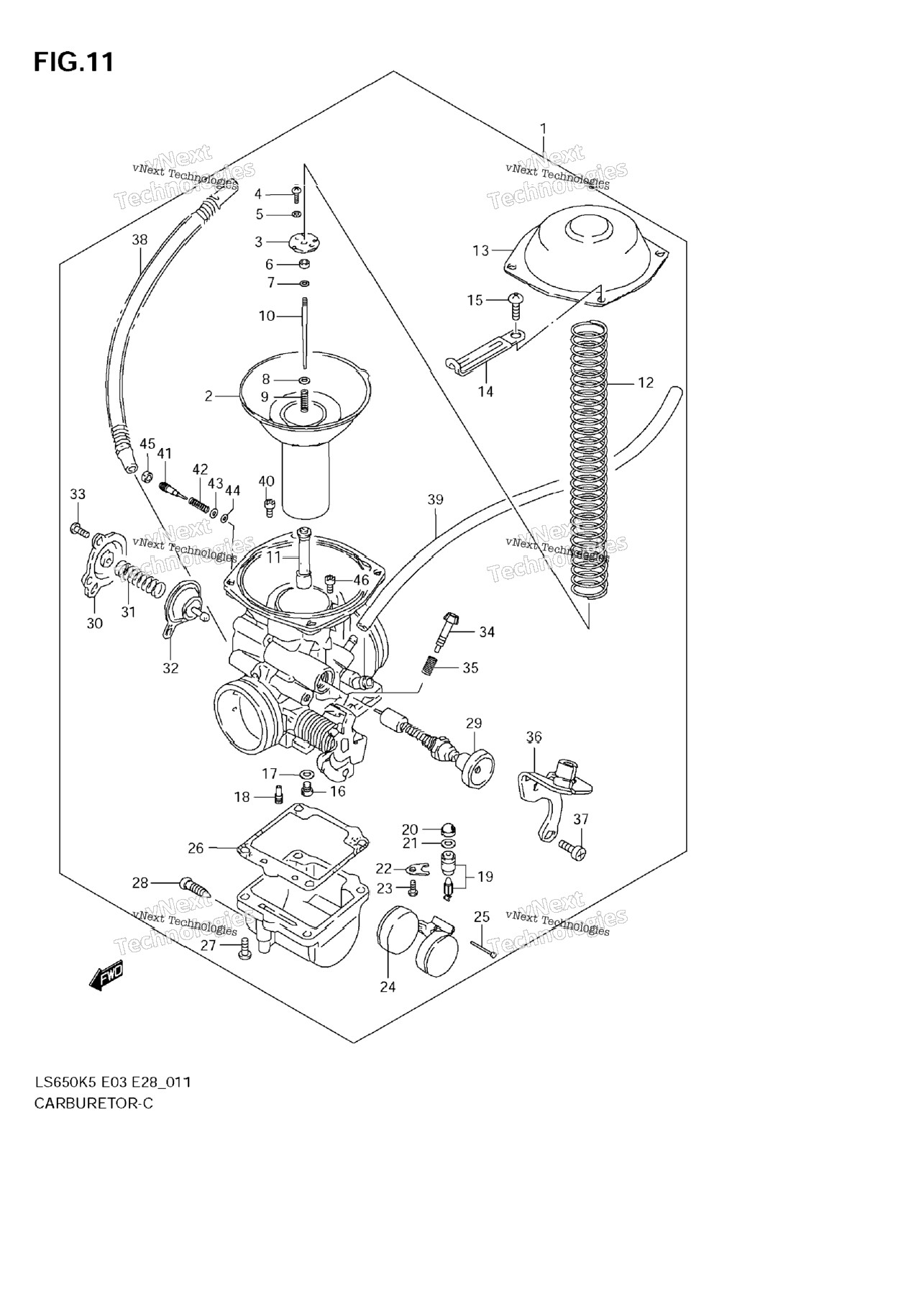

| 1 | 13200-24CA0 | CARBURETOR ASSY MODEL K5/K6/K7 E33 | 0 шт. | — | |
|
| 1 | 13200-24C90 | CARBURETOR ASSY MODEL K5/K6/K7 E3,E28 | 0 шт. | — | |
|
| 1 | 13200-24C51 | CARBURETOR ASSY MODEL K8/K9 E33; Includes Item(s) 2 - 46 | 1 шт. | — | |
|
| 1 | 13200-24C41 | CARBURETOR ASSY MODEL K8/K9 E3,E28 | 1 шт. | — | |
|
| 2 | 13500-24B40 | DIAPHRAGM ASSY | 1 шт. | — | |
|
| 3 | 13389-37400 | PLATE | 1 шт. | — | |
|
| 4 | 02112-03063 | SCREW | 2 шт. | — | |
|
| 5 | 08321-2103B | LOCK WASHER | 2 шт. | — | |
|
| 6 | 13387-44030 | RING | 1 шт. | — | |
|
| 7 | 13394-31210 | E RING | 1 шт. | — | |
|
| 8 | 13382-44030 | WASHER | 1 шт. | — | |
|
| 9 | 13388-44030 | SPRING | 1 шт. | — | |
|
| 10 | 13383-24C40 | NEEDLE, JET (5C39) | 1 шт. | — | |
|
| 11 | 09494-00861 | JET, NEEDLE (X-7M) | 1 шт. | — | |
|
| 12 | 13503-24B00 | SPRING | 1 шт. | — | |
|
| 13 | 13502-37400 | COVER | 1 шт. | — | |
|
| 14 | 09404-06433 | CLAMP | 1 шт. | — | — |
|
| 16 | 09491-29013 | JET, MAIN (145) | 1 шт. | — | |
|
| 17 | 13382-03110 | WASHER | 1 шт. | — | |
|
| 18 | 09492-52010 | JET, PILOT (52.5) | 1 шт. | — | |
|
| 19 | 13370-24C80 | VALVE ASSY, NEEDLE | 1 шт. | — | |
|
| 20 | 13376-19F00 | FILTER | 1 шт. | — | |
|
| 21 | 13374-35C00 | O RING | 1 шт. | — | |
|
| 22 | 13373-39110 | PLATE | 1 шт. | — | |
|
| 23 | 02112-04063 | SCREW | 1 шт. | — | |
|
| 24 | 13250-37400 | FLOAT | 1 шт. | — | |
|
| 25 | 13254-92311 | PIN, FLOAT | 1 шт. | — | |
|
| 26 | 13251-38300 | GASKET | 1 шт. | — | |
|
| 27 | 02112-0516B | .SCREW | 4 шт. | — | |
|
| 28 | 13247-13A00 | .SCREW,DRAIN | 1 шт. | — | |
|
| 29 | 13411-24C00 | PLUNGER ASSY | 1 шт. | — | |
|
| 30 | 13484-38A10 | COVER | 1 шт. | — | |
|
| 31 | 13481-24B00 | SPRING | 1 шт. | — | |
|
| 32 | 13480-05A10 | DIAPHRAGM ASSY | 1 шт. | — | |
|
| 33 | 02112-0410B | SCREW | 3 шт. | — | |
|
| 34 | 13267-25D00 | ADJUSTER | 1 шт. | — | |
|
| 35 | 13271-93011 | SPRING | 1 шт. | — | |
|
| 36 | 13621-24B01 | BRACKET | 1 шт. | — | |
|
| 37 | 02112-0510B | SCREW | 2 шт. | — | |
|
| 37 | 02112-0510B | SCREW | 4 шт. | — | |
|
| 38 | 13318-24C00 | HOSE ASSY | 1 шт. | — | |
|
| 39 | 09352-50823-600 | HOSE (5X8.2X600) L:600!250 | 2 шт. | — | |
|
| 40 | 09491-46005 | JET, PILOT AIR NO.2 (230) | 1 шт. | — | |
|
| 41 | 13269-37400 | SCREW, PILOT (1,1/8) | 1 шт. | — | |
|
| 42 | 13268-47070 | .SPRING | 1 шт. | — | |
|
| 43 | 13291-29900 | WASHER | 1 шт. | — | |
|
| 44 | 13295-29900 | O RING | 1 шт. | — | |
|
| 45 | 13281-05A00 | PLUG | 1 шт. | — | |
|
| 46 | 09491-45002 | JET, PILOT AIR (45) | 1 шт. | — | |
|
