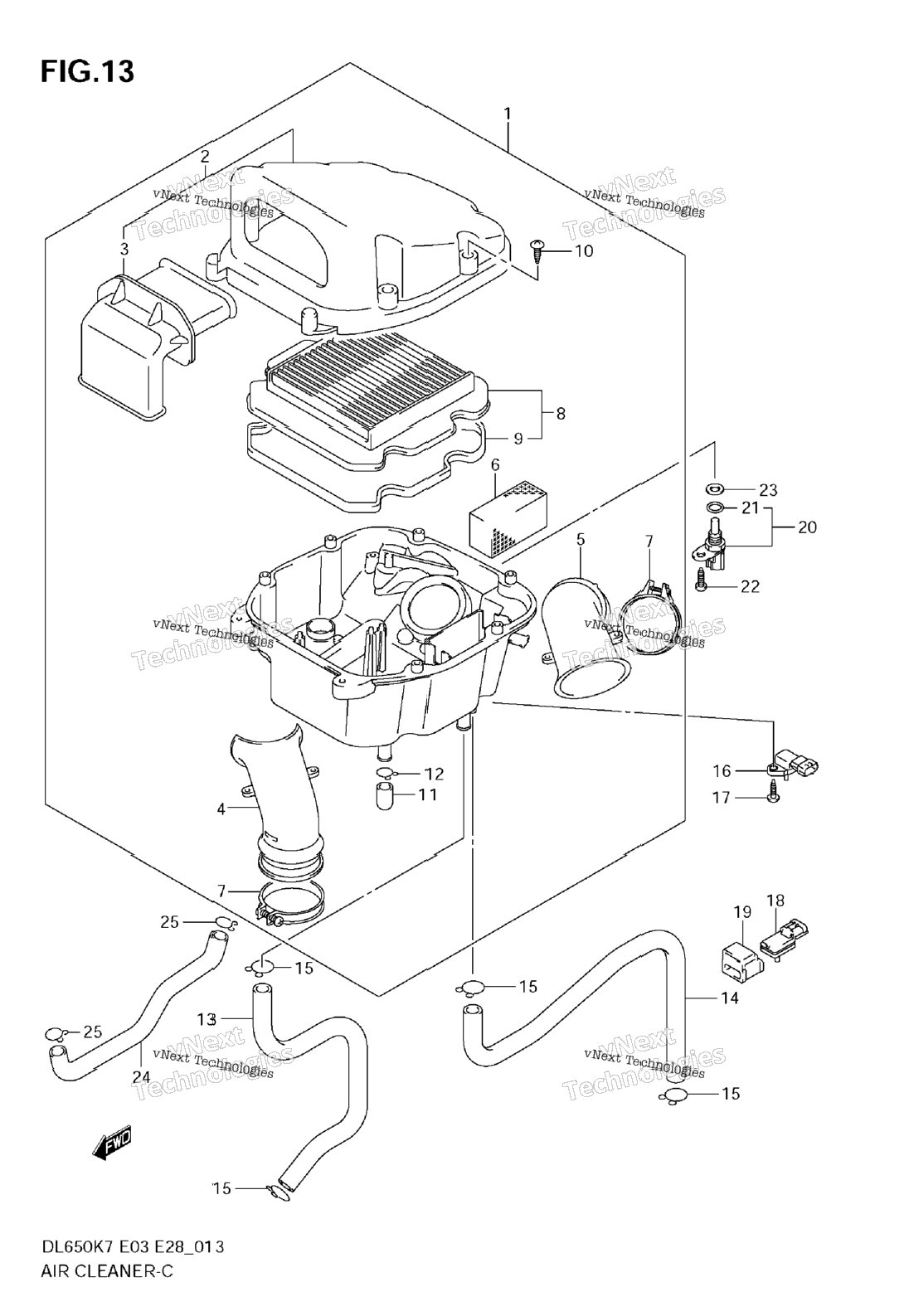

| 1 | 13700-27G10 | CLEANER ASSY, AIR Includes Item(s) 2 - 12 | 0 шт. | — | |
|
| 2 | 13740-27G00 | CAP, AIR CLEANER | 0 шт. | — | |
|
| 3 | 13891-27G00 | TUBE, INLET | 1 шт. | — | |
|
| 4 | 13881-27G10 | TUBE, OUTLET A | 1 шт. | — | |
|
| 5 | 13882-27G10 | TUBE, OUTLET B | 1 шт. | — | |
|
| 6 | 13788-27G10 | FILTER, BREATHER | 1 шт. | — | |
|
| 7 | 13826-17G00 | CLAMP, OUTLET TUBE REAR | 2 шт. | — | |
|
| 8 | 13780-27G10 | FILTER, AIR CLEANER | 1 шт. | — | |
|
| 9 | 13746-06G00 | GASKET | 1 шт. | — | |
|
| 10 | 03141-0516A | SCREW | 8 шт. | — | |
|
| 11 | 13878-10G00 | PLUG | 1 шт. | — | |
|
| 12 | 09401-14301 | CLIP | 1 шт. | — | |
|
| 13 | 13851-27G00 | TUBE, BREATHER CRANKCASE | 0 шт. | — | |
|
| 14 | 13852-27G10 | TUBE, BREATHER CRANKCASE | 0 шт. | — | |
|
| 15 | 09401-15101 | CLIP | 4 шт. | — | |
|
| 16 | 18590-17G01 | SENSOR, BOOST RH | 1 шт. | — | |
|
| 17 | 03541-0516A | SCREW | 1 шт. | — | |
|
| 18 | 18591-41F00 | SENSOR, BOOST LH | 1 шт. | — | |
|
| 19 | 18595-41F00 | HOLDER | 0 шт. | — | |
|
| 20 | 13650-41F10 | SENSOR,AIR TEMP Includes Item(s) 21 | 1 шт. | — | |
|
| 21 | 13655-41F10 | O-RING | 0 шт. | — | |
|
| 22 | 03511-0516A | SCREW | 1 шт. | — | |
|
| 23 | 09168-12017 | GASKET | 1 шт. | — | |
|
| 24 | 13865-27G00 | HOSE, ISC VALVE | 0 шт. | — | |
|
| 25 | 09401-15101 | CLIP | 2 шт. | — | |
|
