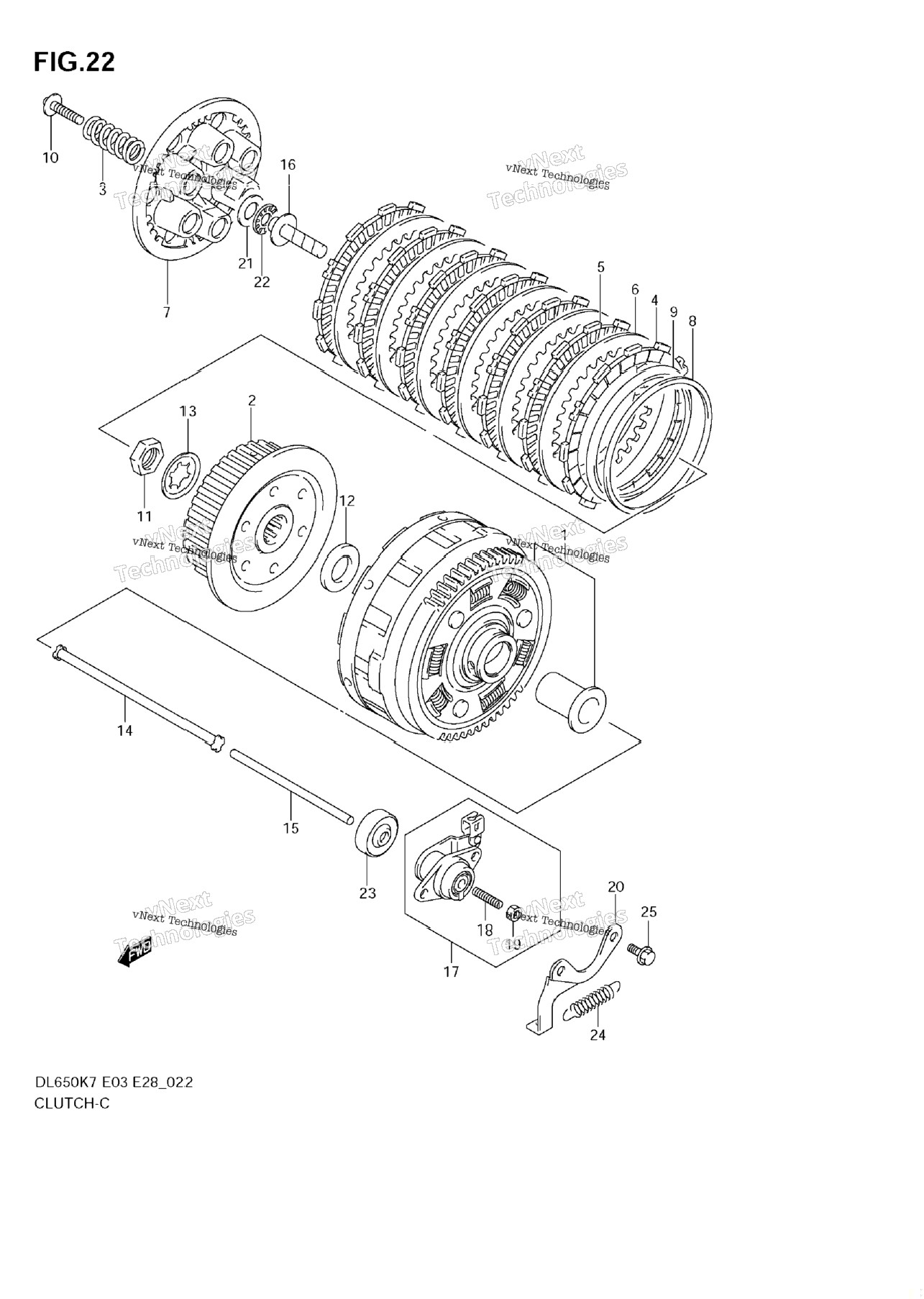

| 1 | 21200-17860 | GEAR ASSY, PRIMARY DRIVEN | 1 шт. | — | |
|
| 2 | 21411-44101 | HUB, CLUTCH SLEEVE | 1 шт. | — | |
|
| 3 | 21413-17G01 | SPRING,CLUTCH | 6 шт. | — | |
|
| 4 | 21442-29F00 | PLATE CLUTCH DRIVE NO.2 (T:3. | 1 шт. | — | |
|
| 5 | 21441-29F20 | PLATE, CLUTCH DRIVE | 6 шт. | — | |
|
| 6 | 21451-28C31 | PLATE, CLUTCH DRIVEN | 6 шт. | — | |
|
| 7 | 21462-14301 | DISC, CLUTCH PRESSURE | 1 шт. | — | |
|
| 8 | 21471-17G00 | SEAT, WAVE WASHER | 1 шт. | — | |
|
| 9 | 21472-17G00 | WASHER, CLUTCH PLATE WAVE | 1 шт. | — | |
|
| 10 | 09116-06203 | BOLT (6X30) | 6 шт. | — | |
|
| 11 | 09140-20001 | NUT | 1 шт. | — | |
|
| 12 | 09160-20067 | WASHER (20X36X3) | 1 шт. | — | |
|
| 13 | 09167-20006 | LOCK WASHER | 1 шт. | — | |
|
| 14 | 23110-44111 | ROD, PUSH RH | 1 шт. | — | |
|
| 15 | 23111-24A01 | ROD, CLUTCH PUSH LH | 1 шт. | — | |
|
| 16 | 23121-44100 | PIECE, CLUTCH PUSH | 1 шт. | — | |
|
| 17 | 23200-11D00 | SCREW ASSY, CLUTCH RELEASE Includes Item(s) 18 - 19 | 1 шт. | — | |
|
| 18 | 09134-06010 | SCREW | 1 шт. | — | |
|
| 19 | 08310-00067 | .NUT | 1 шт. | — | |
|
| 20 | 23226-19F01 | SUPPORT, CLUTCH RELEASE | 1 шт. | — | |
|
| 21 | 09160-15045 | WASHER (15.5X28X1) | 1 шт. | — | |
|
| 22 | 09263-15003 | BEARING (15X28X2) | 1 шт. | — | |
|
| 23 | 09285-06015 | OIL SEAL (6X34X5.5) | 1 шт. | — | |
|
| 24 | 09443-08001 | SPRING | 1 шт. | — | |
|
| 25 | 01500-0616B | BOLT | 2 шт. | — | |
|
