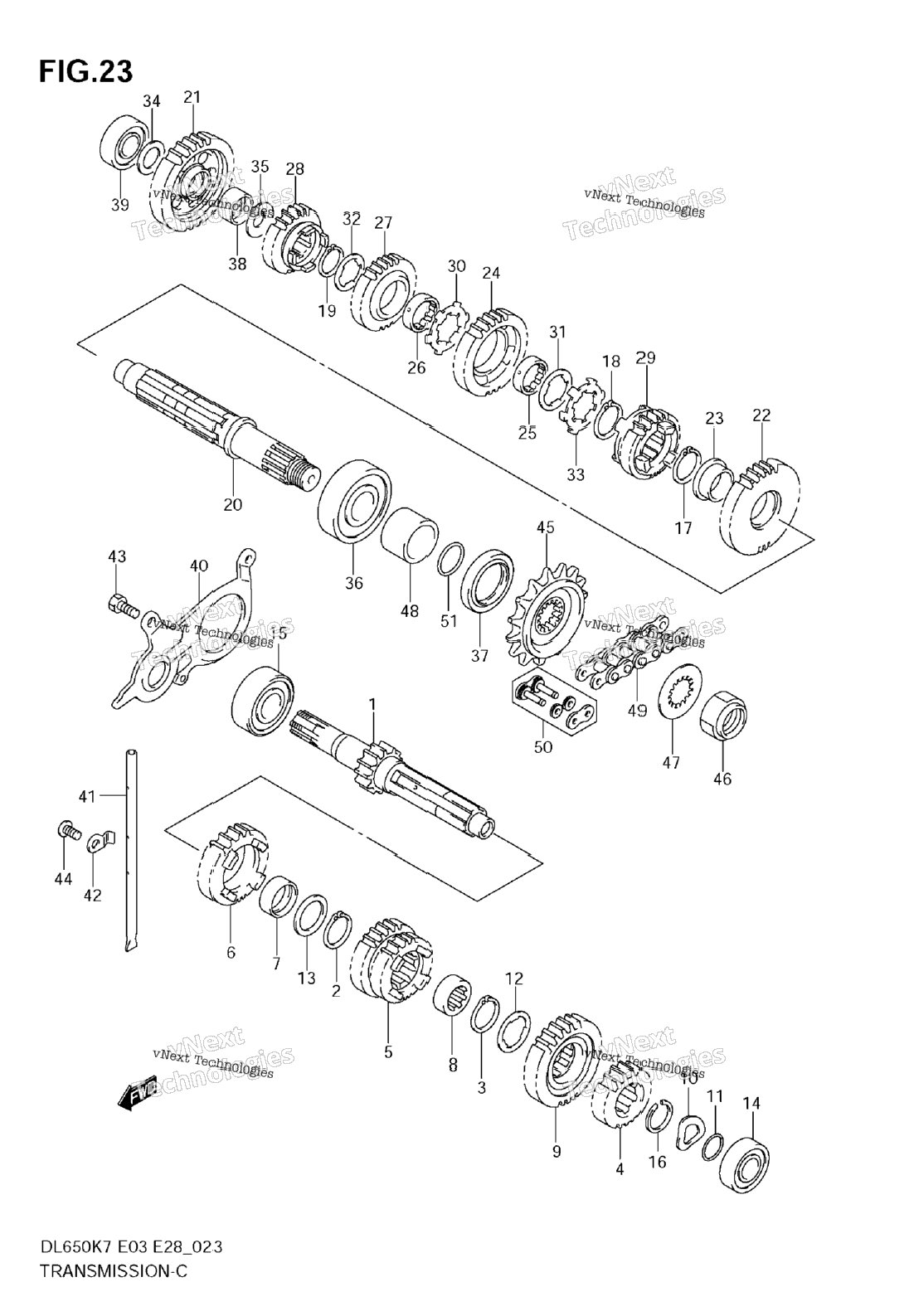

| 1 | 24120-27G00 | SHAFT, COUNTER (NT:13) | 1 шт. | — | |
|
| 2 | 24127-19F00 | CIRCLIP | 1 шт. | — | |
|
| 3 | 24127-19F00 | CIRCLIP | 1 шт. | — | |
|
| 4 | 24221-20F00 | GEAR, 2ND DRIVE (NT:18) | 0 шт. | — | |
|
| 5 | 24231-20F03 | GEAR, 3RD & 4TH DRIVE NT:21/24 | 1 шт. | — | |
|
| 6 | 24251-20F02 | GEAR, 5TH DRIVE (NT:26) | 0 шт. | — | |
|
| 7 | 24252-19F00 | BUSH | 1 шт. | — | |
|
| 8 | 24252-38A10 | BUSH, 6TH DRIVE | 1 шт. | — | |
|
| 9 | 24261-20F00 | GEAR, 6TH DRIVE (NT:27) | 1 шт. | — | |
|
| 10 | 09164-17007 | WASHER, COUNTER WAVE | 0 шт. | — | |
|
| 11 | 09280-17001 | O RING (D:1.0,ID:16.8) | 1 шт. | — | |
|
| 12 | 09167-25021 | LOCK WASHER (25.1X33X1.0) 25.1X33X1.0 | 1 шт. | — | |
|
| 13 | 09181-25167 | WASHER, 5TH DRIVE | 1 шт. | — | |
|
| 14 | 09262-17046 | BEARING, CNTR SHAFT LH 17X40X12 | 1 шт. | — | |
|
| 15 | 09262-20116 | BEARING, CNTR SHAFT RH 20X52X15 | 1 шт. | — | |
|
| 16 | 09380-25012 | RING, 2ND DRIVE | 1 шт. | — | |
|
| 17 | 24127-19F00 | CIRCLIP | 1 шт. | — | |
|
| 18 | 24127-19F00 | CIRCLIP | 1 шт. | — | |
|
| 19 | 24127-19F00 | CIRCLIP | 1 шт. | — | |
|
| 20 | 24130-19F01 | SHAFT, DRIVE | 1 шт. | — | |
|
| 21 | 24311-20F00 | GEAR, 1ST DRIVEN (NT:32) | 1 шт. | — | |
|
| 22 | 24321-20F01 | GEAR, 2ND DRIVEN (NT:32) | 1 шт. | — | |
|
| 23 | 24322-19F00 | BUSH, 2ND DRIVEN | 1 шт. | — | |
|
| 24 | 24331-20F00 | GEAR, 3RD DRIVEN (NT:29) | 0 шт. | — | |
|
| 25 | 24332-24510 | BUSH, DRIVEN GEAR | 1 шт. | — | |
|
| 26 | 24332-24510 | BUSH, DRIVEN GEAR | 1 шт. | — | |
|
| 27 | 24341-20F00 | GEAR, 4TH DRIVEN (NT:27) | 1 шт. | — | |
|
| 28 | 24351-20F02 | GEAR, 5TH DRIVEN (NT:25) | 1 шт. | — | |
|
| 29 | 24361-20F01 | GEAR, 6TH DRIVEN (NT:23) | 1 шт. | — | |
|
| 30 | 09167-25013 | WASHER,LOCK (25.1X41X1.5) | 1 шт. | — | |
|
| 31 | 09167-25021 | LOCK WASHER (25.1X33X1.0) | 1 шт. | — | |
|
| 32 | 09167-25021 | LOCK WASHER (25.1X33X1.0) | 1 шт. | — | |
|
| 33 | 09169-25001 | WASHER (25.1X37X2.5) | 1 шт. | — | |
|
| 34 | 09181-17195 | WASHER, 1ST DRIVEN 17X28X1.0 | 1 шт. | — | |
|
| 35 | 09181-20195 | WASHER, 1ST DRIVEN, LH 20X30X1.0 | 1 шт. | — | |
|
| 36 | 09262-25125 | BEARING, DRIVE SHAFT LH 25X62X17 | 1 шт. | — | |
|
| 37 | 09283-36003 | SEAL, DRIVE SHAFT 36X50X6 | 1 шт. | — | |
|
| 38 | 09300-20032 | BUSH, 1ST DRIVEN | 1 шт. | — | |
|
| 39 | 09262-17023 | BEARING, DRIVE SHAFT RH 17X40X12 | 1 шт. | — | |
|
| 40 | 24751-19F00 | RETAINER, DRIVE SHAFT OIL SEAL | 1 шт. | — | |
|
| 41 | 24881-12C20 | GUIDE, T/M OIL | 1 шт. | — | |
|
| 42 | 24885-12C10 | RETAINER, TRANSMISSION OIL | 1 шт. | — | |
|
| 43 | 01500-0612A | BOLT | 3 шт. | — | |
|
| 44 | 02112-0612B | SCREW | 1 шт. | — | |
|
| 45 | 27510-20F00 | SPROCKET, ENGINE (NT:15) | 1 шт. | — | |
|
| 46 | 09159-20004 | NUT, ENGINE SPROCKET | 1 шт. | — | |
|
| 47 | 09167-25027 | WASHER | 1 шт. | — | |
|
| 48 | 27531-19F01 | SPACER, ENGINE SPROCKET | 1 шт. | — | |
|
| 49 | 27600-32C10-118 | CHAIN ASSY (DID525V8,118LE) | 1 шт. | — | |
|
| 50 | 27620-32C10 | JOINT SET, CHAIN OPT | 1 шт. | — | |
|
| 51 | 09280-24010 | O RING (D:2.4,ID:23.7) | 1 шт. | — | |
|
