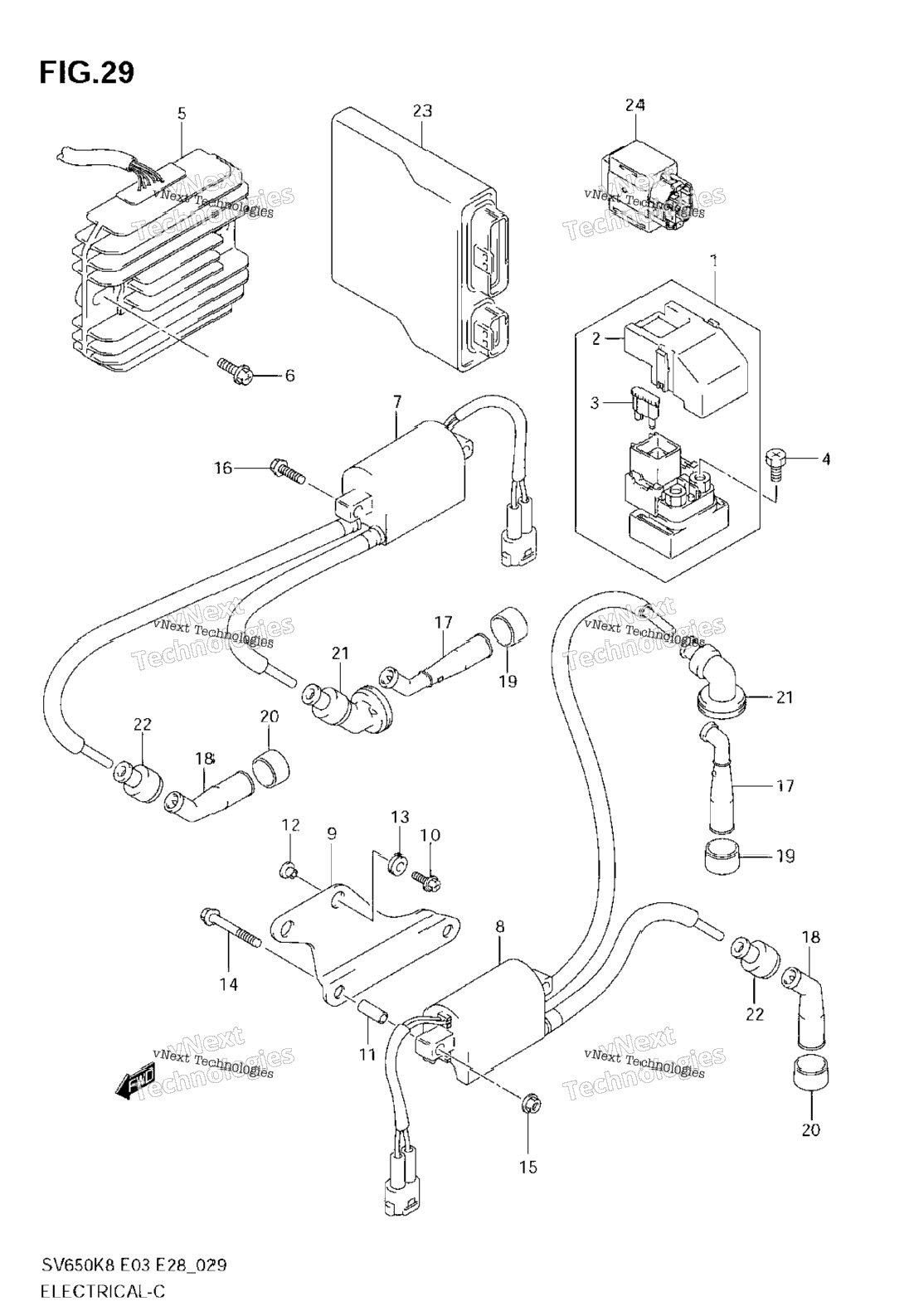

| 1 | 31800-06G00 | RELAY ASSY, STARTING MOTOR Includes Item(s) 2 - 3 | 1 шт. | — | |
|
| 2 | 31861-47E00 | COVER, RELAY ASSY | 1 шт. | — | |
|
| 3 | 09481-30101 | FUSE (30A) | 2 шт. | — | |
|
| 4 | 09128-06013 | SCREW (6X8) | 2 шт. | — | |
|
| 5 | 32800-16G00 | RECTIFIER ASSY | 1 шт. | — | |
|
| 6 | 02162-0620B | BOLT | 2 шт. | — | |
|
| 7 | 33410-17GA0 | COIL ASSY, IGNITION (L:380) FOR FRONT | 0 шт. | — | |
|
| 8 | 33420-17GA0 | COIL ASSY, IGNITION (L:350) FoR REAR | 1 шт. | — | |
|
| 9 | 33424-17GA0 | BRACKET, IGN COIL REAR | 1 шт. | — | |
|
| 10 | 09116-06130 | BOLT, BRKT REAR (6X16) | 2 шт. | — | |
|
| 11 | 09180-06195 | SPACER, IGN COIL REAR 6.4X10X18 | 2 шт. | — | |
|
| 12 | 09180-06325 | SPACER, IGN COIL BRKT 6.2X8.4X6.9 | 2 шт. | — | |
|
| 13 | 09320-06017 | CUSHION, IGN COIL BRKT | 2 шт. | — | |
|
| 14 | 01547-0640A | BOLT | 2 шт. | — | |
|
| 15 | 08316-1006A | NUT, IGN REAR | 2 шт. | — | |
|
| 16 | 01547-0625A | BOLT, IGN FRONT | 2 шт. | — | |
|
| 17 | 33510-17G00 | CAP ASSY, SPARK PLUG | 2 шт. | — | |
|
| 18 | 33510-20E00 | CAP ASSY,SPARK PLUG | 2 шт. | — | |
|
| 19 | 33541-23E01 | SEAL, SPARK PLUG CAP (CENTER) | 2 шт. | — | |
|
| 20 | 33541-47D00 | SEAL,SPARK PLUG | 2 шт. | — | |
|
| 21 | 33542-17G01 | SEAL, HIGH TENSION CORD CTR | 2 шт. | — | |
|
| 22 | 33542-38B00 | SEAL, HIGH TENSION (SIDE) | 2 шт. | — | |
|
| 23 | 32920-17GC0 | CONTROL UNIT, FI E3/E28 | 0 шт. | — | |
|
| 24 | 32920-17GD0 | CONTROL UNIT, FI E33 | 0 шт. | — | |
|
| 25 | 33960-06G10 | SENSOR ASSY,FUEL CUT | 1 шт. | — | |
|
