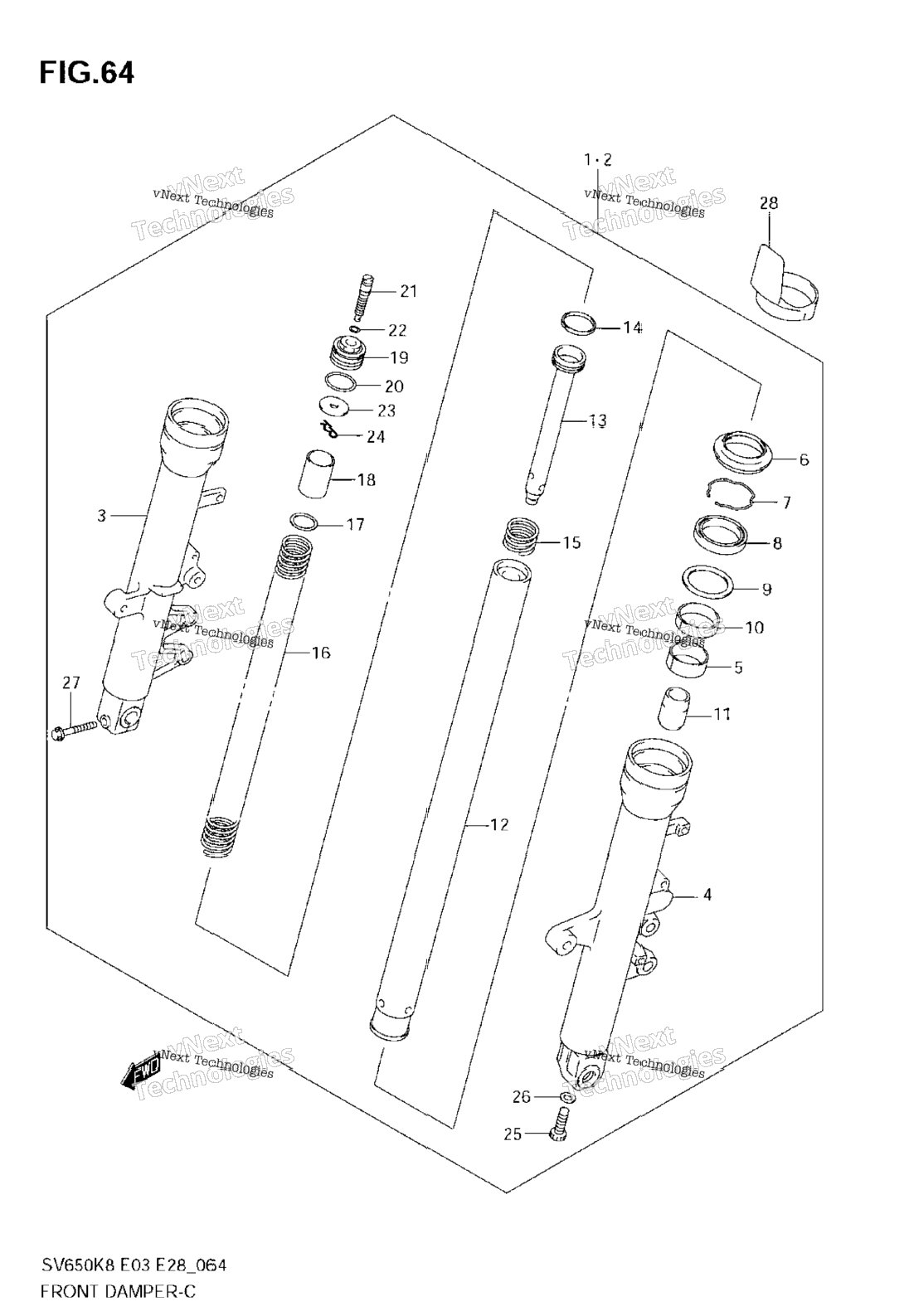

| 1 | 51103-17GB0 | DAMPER ASSY, FRONT FORK RH SV650AK8/SAK8 | 1 шт. | — | |
|
| 1 | 51103-17GA0 | DAMPER ASSY, FRONT FORK RH SV650K8 | 0 шт. | — | |
|
| 1 | 51103-17GC0 | DAMPER ASSY, FRONT FORK RH SV650SK8 | 1 шт. | — | |
|
| 2 | 51104-17GB0 | DAMPER ASSY, FRONT FORK LH SV650AK8/SAK8 | 0 шт. | — | |
|
| 2 | 51104-17GA0 | DAMPER ASSY, FRONT FORK LH SV650K8 | 0 шт. | — | |
|
| 2 | 51104-17GC0 | DAMPER ASSY, FRONT FORK LH SV650SK8; Includes Item(s) 3 - 27 | 0 шт. | — | |
|
| 3 | 51130-17GB0 | TUBE, OUTER RH SV650AK8/SAK8 | 0 шт. | — | |
|
| 3 | 51130-17GA0 | TUBE, OUTER RH SV650K8/SK8 | 0 шт. | — | |
|
| 4 | 51140-17GB0 | TUBE, OUTER LH SV650AK8/SAK8 | 1 шт. | — | |
|
| 4 | 51140-17GA0 | TUBE, OUTER LH SV650K8/SK8 | 1 шт. | — | |
|
| 5 | 51121-42E00 | BUSH, SLIDE | 2 шт. | — | |
|
| 6 | 51173-01H00 | .SEAL,DUST SV650AK8/SAK8 | 2 шт. | — | |
|
| 6 | 51571-47D50 | SEAL, DUST SV650K8/SK8 | 2 шт. | — | |
|
| 7 | 51556-38B00 | RING, STOPPER | 2 шт. | — | |
|
| 8 | 51153-08D00 | SEAL, OIL SV650K8/SK8 | 2 шт. | — | |
|
| 8 | 51153-01H00 | SEAL, OLIL SV650AK8/SAK8 | 2 шт. | — | |
|
| 9 | 51168-17G80 | SPACER, SEAL SV650AK8/SAK8 | 2 шт. | — | |
|
| 9 | 51168-38B00 | SPACER, SEAL SV650K8/SK8 | 2 шт. | — | |
|
| 10 | 51152-17G00 | BUSH, GUIDE | 2 шт. | — | |
|
| 11 | 51195-48B31 | .PIECE,OIL LOCK | 2 шт. | — | |
|
| 12 | 51110-17G80 | TUBE, INNER SV650AK8/SAK8 | 2 шт. | — | |
|
| 12 | 51110-17G00 | TUBE, INNER SV650K8/SK8 | 2 шт. | — | |
|
| 13 | 51146-17G80 | .CYLINDER SV650AK8/SAK8 | 2 шт. | — | |
|
| 13 | 51146-17G00 | CYLINDER SV650K8 | 0 шт. | — | |
|
| 13 | 51146-17G20 | CYLINDER SV650SK8 | 0 шт. | — | |
|
| 14 | 51196-12C00 | .RING,PISTON | 2 шт. | — | |
|
| 15 | 51177-12C00 | SPRING, REBOUND SV650AK8/SAK8 | 0 шт. | — | |
|
| 15 | 51177-17G50 | .SPRING,REBOUND SV650SK8 | 0 шт. | — | |
|
| 16 | 51171-17G80 | SPRING, FRONT SV650AK8/SAK8 | 0 шт. | — | |
|
| 16 | 51171-17G00 | SPRING, FRONT SV650K8 | 0 шт. | — | |
|
| 16 | 51171-17G20 | SPRING, FRONT SV650SK8 | 0 шт. | — | |
|
| 17 | 51192-19C00 | .JOINT,SPRING | 2 шт. | — | |
|
| 18 | 51176-12C10 | COLLAR, SPRING SV650K8/AK8/SAK8 | 2 шт. | — | |
|
| 18 | 51176-17G50 | COLLAR, SPRING SV650SK8 | 0 шт. | — | |
|
| 19 | 51189-12C00 | .BOLT,FORK | 2 шт. | — | |
|
| 20 | 51117-12C00 | O RING | 2 шт. | — | |
|
| 21 | 51185-17G00 | .ADJUSTER BOLT,SPRING | 0 шт. | — | |
|
| 22 | 09280-09005 | .O RING (D:1.9,ID:8.6) | 2 шт. | — | |
|
| 23 | 51186-12C00 | SEAT, SPRING | 2 шт. | — | |
|
| 24 | 51188-32B00 | PIN, SEAT SPRING | 0 шт. | — | |
|
| 25 | 51147-48130 | BOLT | 2 шт. | — | |
|
| 26 | 51148-36011 | GASKET | 2 шт. | — | |
|
| 27 | 51328-03FK0 | BOLT RH | 1 шт. | — | |
|
| 28 | 51201-32F00 | PROTECTOR | 2 шт. | — | |
|
