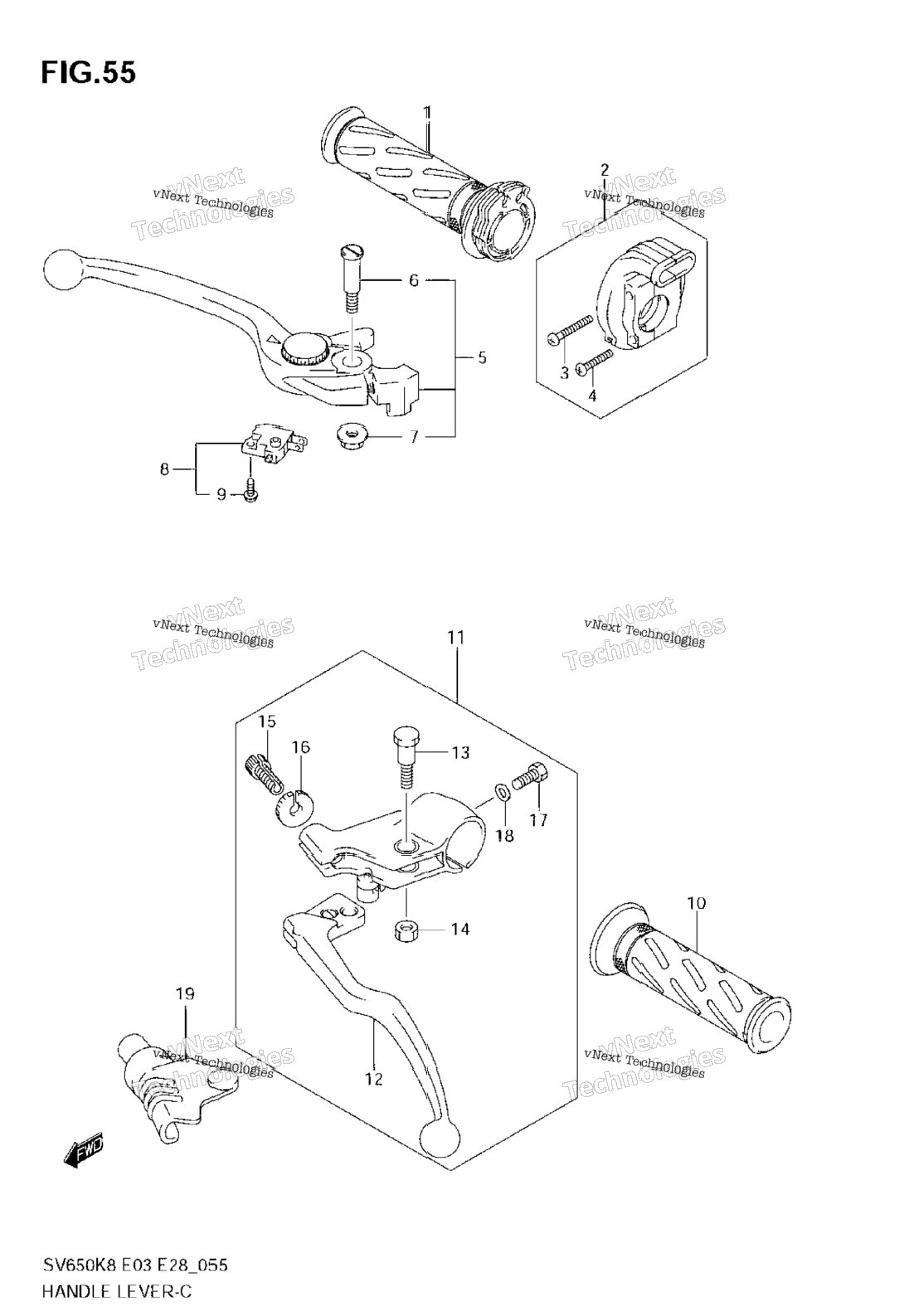

| 1 | 57110-46E01 | GRIP, THROTTLE SV650/A | 1 шт. | — | |
|
| 2 | 57110-45D02 | GRIP, THROTTLE SV650S/SA | 1 шт. | — | |
|
| 3 | 57100-14D00 | CASE ASSY THROTTLE SV650S/SA; Includes Item(s) 3 - 4 | 1 шт. | — | |
|
| 4 | 09125-05066 | SCREW SV650S/SA | 1 шт. | — | |
|
| 5 | 02112-0520B | SCREW SV650S/SA | 1 шт. | — | |
|
| 6 | 57300-44G00 | LEVER ASSY, BRAKE SV650/S | 1 шт. | — | |
|
| 7 | 57300-10G20 | LEVER ASSY, BRAKE SV650A/SA; Includes Item(s) 6 - 7 | 1 шт. | — | |
|
| 8 | 57431-14G00 | BOLT, PIVOT | 1 шт. | — | |
|
| 9 | 08319-21068 | NUT | 1 шт. | — | |
|
| 10 | 57460-17C11 | SWITCH ASSY, STOP Includes Item(s) 9 | 1 шт. | — | |
|
| 11 | 57465-17C00 | SCREW | 1 шт. | — | |
|
| 12 | 57211-22D01 | GRIP, LH | 1 шт. | — | |
|
| 13 | 57500-10D01 | LEVER ASSY, CLUTCH SV650/A | 1 шт. | — | |
|
| 14 | 57500-10D80 | LEVER ASSY, CLUTCH SV650S/SA; Includes Item(s) 12 - 18 | 1 шт. | — | |
|
| 15 | 57620-27A31 | LEVER | 1 шт. | — | |
|
| 16 | 57531-14A00 | BOLT, PIVOT | 1 шт. | — | |
|
| 17 | 08319-2106B | .NUT | 1 шт. | — | |
|
| 18 | 57441-11010 | ADJUSTER, CABLE | 1 шт. | — | |
|
| 19 | 57442-11010 | NUT, ADJUSTER | 1 шт. | — | |
|
| 20 | 01500-0620B | BOLT | 1 шт. | — | |
|
| 21 | 08322-0106B | WASHER | 1 шт. | — | |
|
| 22 | 57661-45C00 | COVER, CLUTCH | 1 шт. | — | |
|
