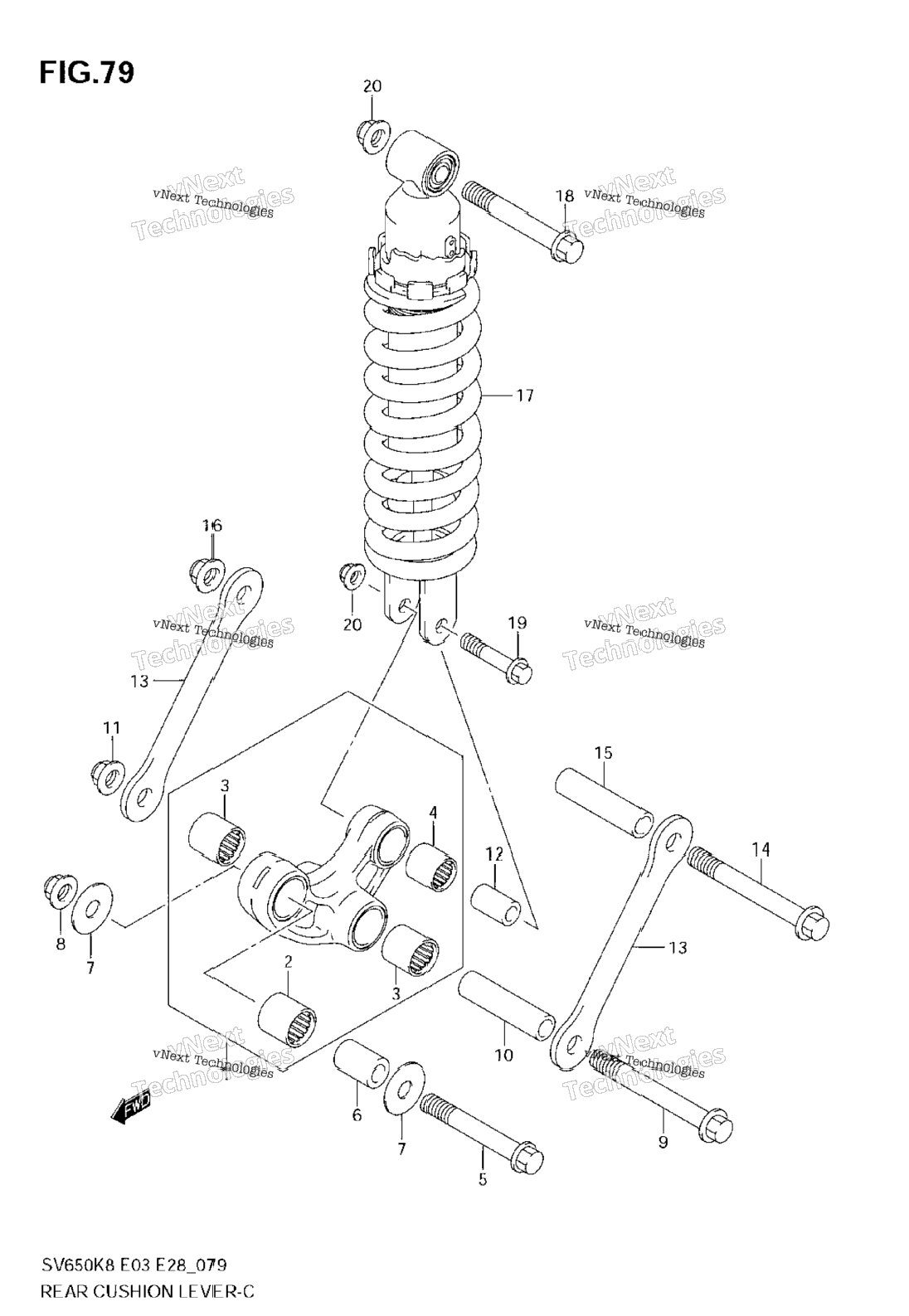

| 1 | 62600-17860 | LEVER SET, REAR CUSHION Includes Item(s) 2 - 4 | 1 шт. | — | |
|
| 2 | 09263-20073 | BEARING, FRONT (20X27X30) | 1 шт. | — | |
|
| 3 | 09263-17039 | BEARING, CENTER (17X24X20) | 2 шт. | — | |
|
| 4 | 09263-17034 | BEARING, REAR (17X24X26) | 1 шт. | — | |
|
| 5 | 62658-19F00 | BOLT, FRONT (12X78) | 1 шт. | — | |
|
| 6 | 62684-12C00 | SPACER, FRONT (12X78) | 1 шт. | — | |
|
| 7 | 09160-12037 | WASHER (12X34X1.0) | 2 шт. | — | |
|
| 8 | 08319-3112A | NUT | 1 шт. | — | |
|
| 9 | 09103-12034 | BOLT, CENTER | 1 шт. | — | |
|
| 10 | 62626-17G00 | SPACER,RR CUSHION LEVER CTR ( | 1 шт. | — | |
|
| 11 | 08319-3112A | NUT | 1 шт. | — | |
|
| 12 | 62684-40A10 | SPACER,RR CUSHION LEVER (10X1 | 1 шт. | — | |
|
| 13 | 62641-17G00 | ROD, REAR CUSHION | 2 шт. | — | |
|
| 14 | 09103-12034 | BOLT, ROD (12X96) | 1 шт. | — | |
|
| 15 | 62626-17G00 | SPACER,RR CUSHION LEVER CTR ( | 1 шт. | — | |
|
| 16 | 08319-3112A | NUT | 1 шт. | — | |
|
| 17 | 62100-17G40-28W | ABSORBER ASSY, REAR SHOCK (WHITE) SV650K8 E28 | 0 шт. | — | |
|
| 18 | 62100-17G50-28W | ABSORBER ASSY, REAR SHOCK (WHITE) SV650K8 E3,E33 | 0 шт. | — | |
|
| 19 | 62100-17G60-28W | ABSORBER ASSY, REAR SHOCK (WHITE) SV650SK8 E28 | 0 шт. | — | |
|
| 20 | 62100-17G70-28W | ABSORBER ASSY, REAR SHOCK (WHITE) SV650SK8 E3,E33 | 0 шт. | — | |
|
| 21 | 62100-17G80-28W | ABSORBER ASSY, REAR SHOCK (WHITE) SV650AK8/SAK8 E28 | 0 шт. | — | |
|
| 22 | 62100-17G90-28W | ABSORBER ASSY, REAR SHOCK (WHITE) SV650AK8/SAK8 E3,E33 | 0 шт. | — | |
|
| 23 | 09103-10033 | BOLT, UPPER (10X70) | 1 шт. | — | |
|
| 24 | 09103-10126 | BOLT, LOWER | 1 шт. | — | |
|
| 25 | 09159-10115 | NUT | 2 шт. | — | |
|
