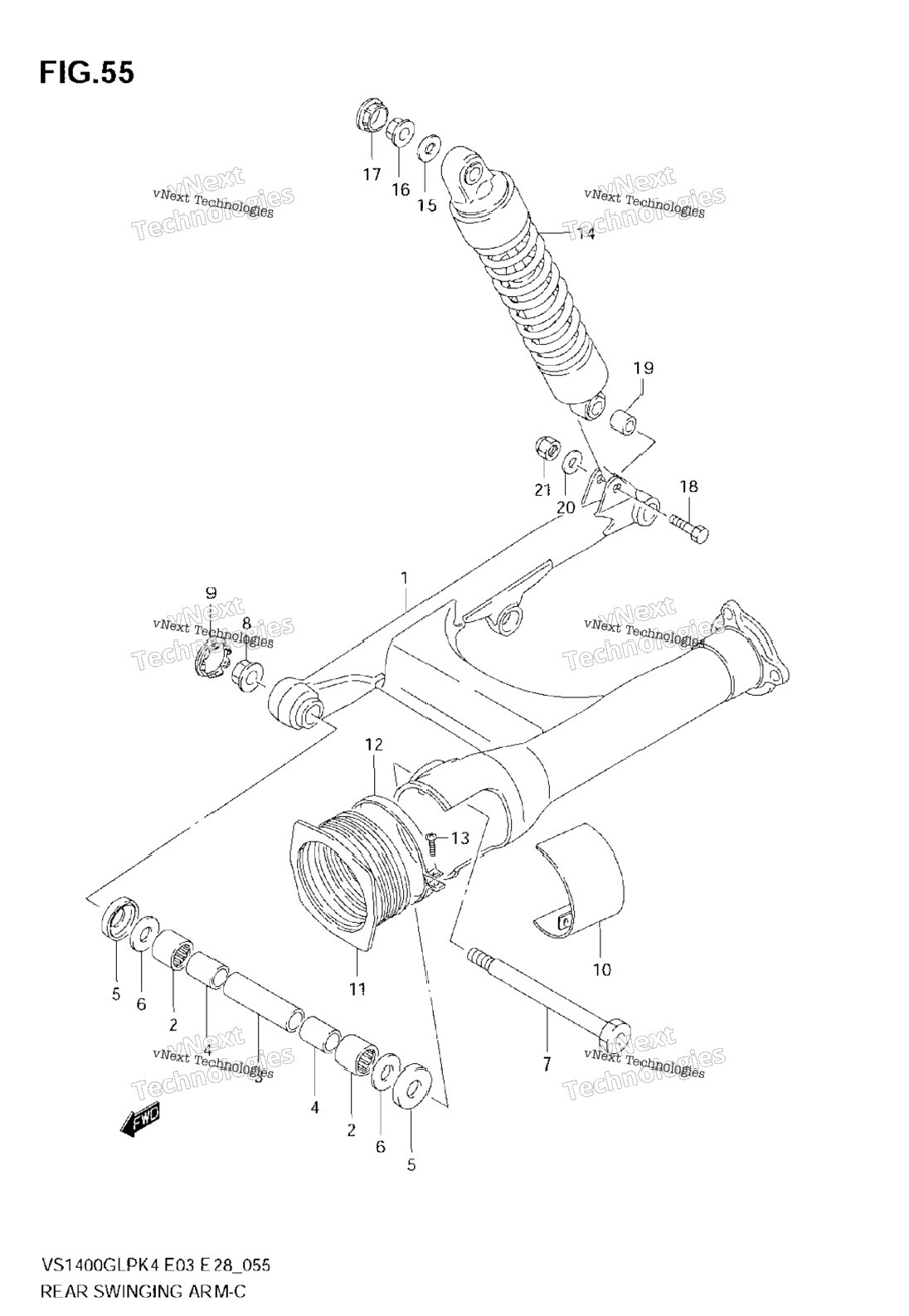

| 1 | 61100-38B01-YAY | SWINGING ARM, REAR (BLACK) MODEL K4 FOR NZ1 | 0 шт. | — | |
|
| 2 | 61100-38B01-YD8 | SWINGING ARM, REAR (SILVER) MODEL K4 FOR NZ2 | 0 шт. | — | |
|
| 3 | 61100-38B01-YAY | SWINGING ARM, REAR (BLACK) MODEL K5/K6/K7/K8 FOR YAY | 0 шт. | — | |
|
| 4 | 61100-38B01-YU8 | SWINGING ARM, REAR (GRAY) MODEL K5 FOR YU8 | 0 шт. | — | |
|
| 5 | 61100-38B01-YHL | SWINGING ARM, REAR (RED) MODEL K6 FOR YHL | 0 шт. | — | |
|
| 6 | 61100-38B01-YBA | SWINGING ARM, REAR (BLUE) MODEL K7 FOR YBA | 0 шт. | — | |
|
| 7 | 61100-38B01-YLC | SWINGING ARM, REAR (GOLD) MODEL K8 FOR YLC | 0 шт. | — | |
|
| 8 | 09263-22017 | BEARING (22X29X30) | 2 шт. | — | |
|
| 9 | 61282-38B00 | SPACER, CENTER | 1 шт. | — | |
|
| 10 | 61251-38B00 | SPACER, PIVOT | 2 шт. | — | |
|
| 11 | 61262-14A00 | DUST SEAL | 2 шт. | — | |
|
| 12 | 08211-16341 | THRUST WASHER | 2 шт. | — | |
|
| 13 | 61211-38B00 | SHAFT, PIVOT | 1 шт. | — | |
|
| 14 | 08319-3114A | NUT | 1 шт. | — | |
|
| 15 | 61222-38A01 | CAP, RH RH | 1 шт. | — | |
|
| 16 | 61230-38B00-YAY | CAP, LH (BLACK) MODEL K4 FOR NZ1 | 0 шт. | — | |
|
| 17 | 61230-38B00-YD8 | CAP, LH (SILVER) MODEL K4 FOR NZ2 | 0 шт. | — | |
|
| 18 | 61230-38B00-YAY | CAP, LH (BLACK) MODEL K5/K6/K7/K8 FOR YAY | 0 шт. | — | |
|
| 19 | 61230-38B00-YU8 | CAP, LH (GRAY) MODEL K5 FOR YU8 | 0 шт. | — | |
|
| 20 | 61230-38B00-YHL | CAP, LH (RED) MODEL K6 FOR YHL | 1 шт. | — | |
|
| 21 | 61230-38B00-YBA | CAP, LH (BLUE) MODEL K7 FOR YBA | 0 шт. | — | |
|
| 22 | 61230-38B00-YLC | CAP, LH (GOLD) MODEL K8 FOR YLC | 0 шт. | — | |
|
| 23 | 61372-38B00 | BOOT, SHAFT | 1 шт. | — | |
|
| 24 | 09402-92306 | CLAMP | 1 шт. | — | |
|
| 25 | 03211-0425B | SCREW | 1 шт. | — | |
|
| 26 | 62100-38B10 | ABSORBER ASSY, REAR SHOCK | 2 шт. | — | |
|
| 27 | 09160-10123 | WASHER, UPPER (10.5X20X2.3) | 2 шт. | — | |
|
| 28 | 08316-1010B | NUT | 2 шт. | — | |
|
| 29 | 95672-24A00 | CAP, UPPER | 2 шт. | — | |
|
| 30 | 09100-10247 | BOLT, LOWER RH (10X39) | 1 шт. | — | |
|
| 31 | 09180-10139 | SPACER, LOWER RH (10.2X14X20.7) | 1 шт. | — | |
|
| 32 | 09160-10127 | WASHER, LOWER (10.5X24X2.3) | 2 шт. | — | |
|
| 33 | 08313-10107 | NUT | 2 шт. | — | |
|
