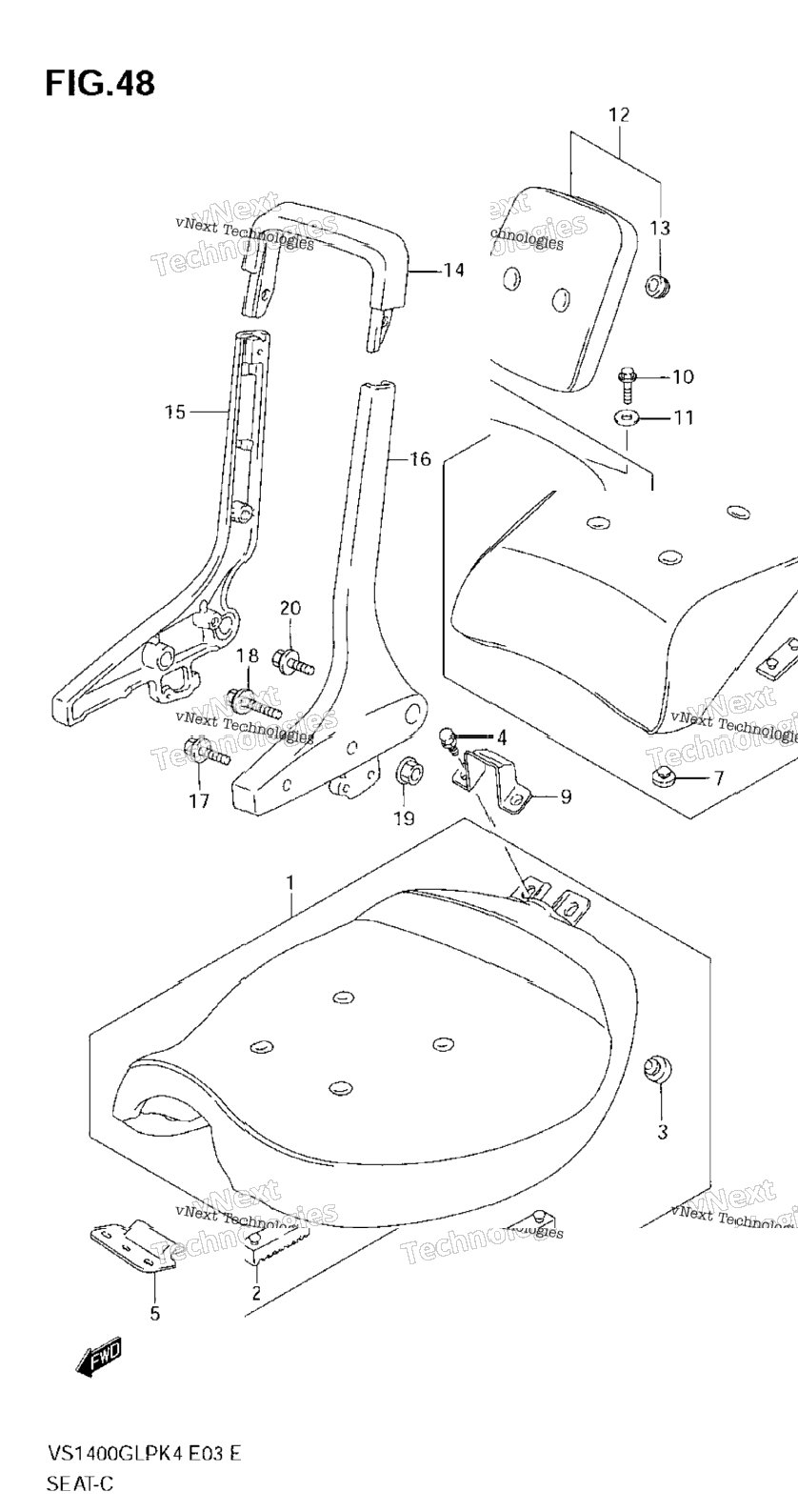

| 1 | 45100-38B60-E7T | SEAT ASSY Includes Item(s) 2 - 3 | 1 шт. | — | |
|
| 2 | 45148-38B01 | CUSHION | 2 шт. | — | |
|
| 3 | 09321-10012 | CUSHION | 2 шт. | — | |
|
| 4 | 02162-06203 | BOLT | 2 шт. | — | |
|
| 5 | 45210-38B00 | BRACKET, SEAT FRONT | 1 шт. | — | |
|
| 6 | 45300-38B60-E7T | SEAT ASSY, PILLION Includes Item(s) 7 - 8 | 0 шт. | — | |
|
| 7 | 09321-10022 | CUSHION, FRONT | 2 шт. | — | |
|
| 8 | 45149-38B00 | CUSHION, REAR | 0 шт. | — | |
|
| 9 | 45119-38B00 | BRACKET, SEAT FRONT | 1 шт. | — | |
|
| 10 | 09111-06057 | BOLT, PILLION REAR (6X17.5) | 1 шт. | — | |
|
| 11 | 09160-09016 | WASHER | 1 шт. | — | |
|
| 12 | 45350-38A60-E7T | PAD ASSY, SEAT Includes Item(s) 13 | 1 шт. | — | |
|
| 13 | 09320-09026 | CUSHION | 3 шт. | — | |
|
| 14 | 46211-38B01 | HANDLE, PILLION RIDER UPPER | 0 шт. | — | |
|
| 15 | 46212-38B01 | HANDLE, PILLION RIDER RH | 0 шт. | — | |
|
| 16 | 46213-38B01 | HANDLE, PILLION RIDER LH | 0 шт. | — | |
|
| 17 | 01580-06403 | BOLT, FRONT | 2 шт. | — | |
|
| 18 | 01580-08453 | BOLT, CENTER | 2 шт. | — | |
|
| 19 | 08316-10083 | NUT | 2 шт. | — | |
|
| 20 | 01580-06203 | BOLT, REAR | 2 шт. | — | |
|
