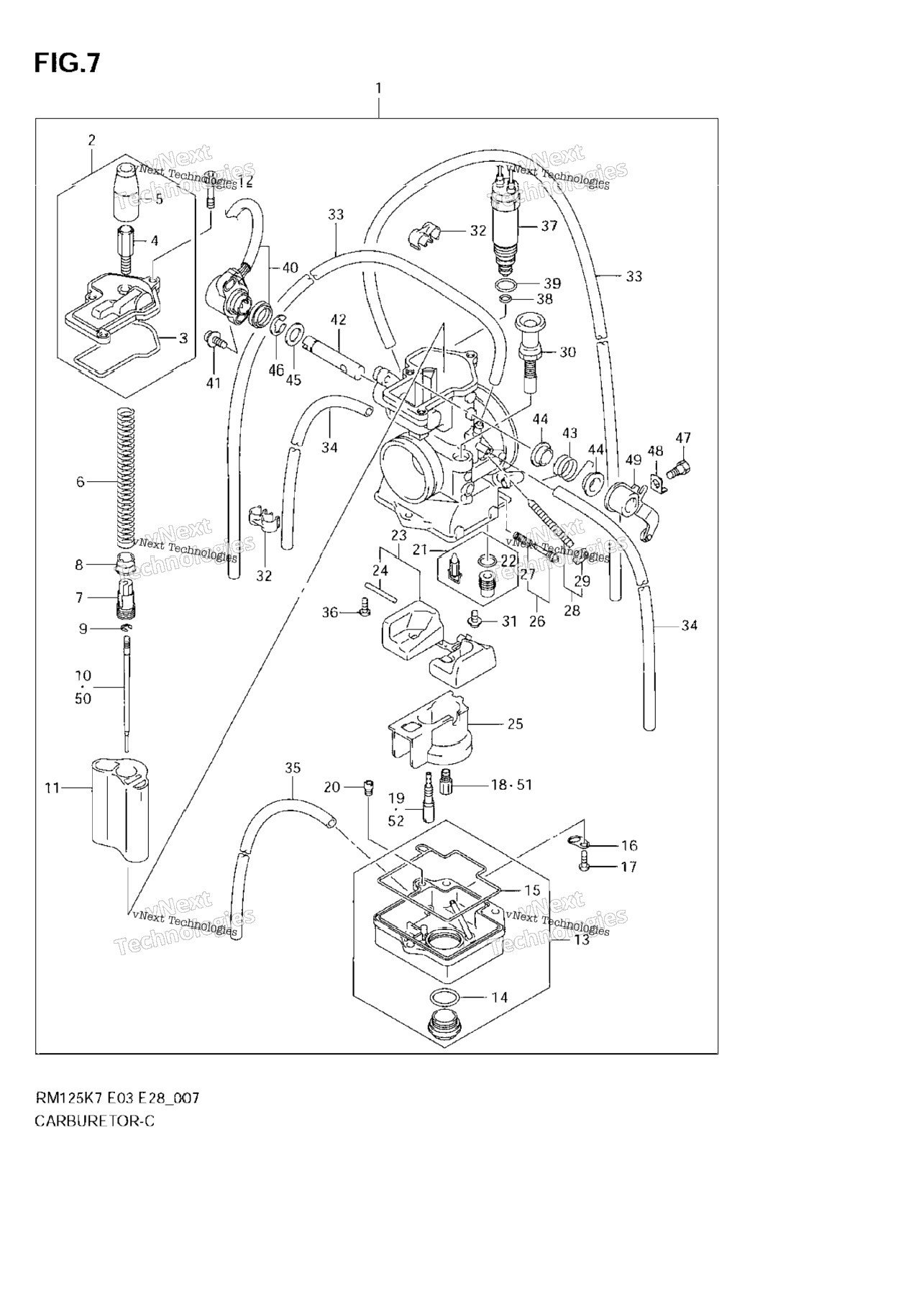

| 1 | 13200-36F80 | CARBURETOR ASSY Includes Item(s) 2 - 49 | 1 шт. | — | |
|
| 2 | 13260-36F10 | TOP CAP ASSY | 0 шт. | — | |
|
| 3 | 13258-36F10 | PACKING | 1 шт. | — | |
|
| 4 | 13681-36F00 | CAP, RUBBER | 1 шт. | — | |
|
| 5 | 13577-41612 | ADJUSTER, CABLE | 1 шт. | — | |
|
| 6 | 13573-36F10 | SPRING | 1 шт. | — | |
|
| 7 | 13518-36F00 | GUIDE | 1 шт. | — | |
|
| 8 | 13424-36F00 | RING | 1 шт. | — | |
|
| 9 | 13394-17E60 | .E-RING MULTIPLE JET NOZZLE | 1 шт. | — | |
|
| 10 | 13381-36F40 | NEEDLE, JET (6CHY17-65) | 1 шт. | — | |
|
| 11 | 13551-36F50 | VALVE, PISTON | 1 шт. | — | |
|
| 12 | 13262-36F00 | BOLT | 3 шт. | — | |
|
| 13 | 13250-36F20 | FLOAT BODY ASSY | 1 шт. | — | |
|
| 14 | 13246-29630 | O RING | 1 шт. | — | |
|
| 15 | 13251-36F00 | O RING | 1 шт. | — | |
|
| 16 | 13693-36500 | PLATE | 1 шт. | — | |
|
| 17 | 13601-05148 | SCREW (5X14) | 3 шт. | — | |
|
| 19 | 09492-42003 | JET, PILOT (42.5) | 1 шт. | — | |
|
| 20 | 09492-55012 | JET, POWER (55) | 1 шт. | — | |
|
| 21 | 13370-36F00 | VALVE ASSY, NEEDLE | 1 шт. | — | |
|
| 22 | 13374-35C00 | O RING | 1 шт. | — | |
|
| 23 | 13240-36F00 | FLOAT SET | 1 шт. | — | |
|
| 24 | 13254-20010 | PIN, FLOAT | 1 шт. | — | |
|
| 25 | 13418-36F00 | HOLDER | 1 шт. | — | |
|
| 26 | 13280-36F20 | ADJUSTER SET (AS) | 1 шт. | — | |
|
| 27 | 13268-35010 | SPRING | 1 шт. | — | |
|
| 28 | 13270-36F00 | ADJUSTER SET (PV) | 1 шт. | — | |
|
| 29 | 13607-47070 | NUT | 1 шт. | — | |
|
| 30 | 13411-36F00 | PLUNGER ASSY | 1 шт. | — | |
|
| 31 | 13602-05A10 | SCREW | 1 шт. | — | |
|
| 32 | 13619-42E00 | CLIP | 2 шт. | — | |
|
| 34 | 09351-35653-600 | HOSE (3.5X6.5X600) L:600!350 | 2 шт. | — | |
|
| 34 | 09351-35653-600 | HOSE (3.5X6.5X600) L:600!550 | 2 шт. | — | |
|
| 35 | 09351-30503-600 | HOSE (3X5X600) L:600!300 | 1 шт. | — | |
|
| 36 | 02112-04083 | SCREW | 1 шт. | — | |
|
| 37 | 13160-36F00 | SOLENOID ASSY | 0 шт. | — | |
|
| 38 | 13453-36F00 | O RING | 1 шт. | — | |
|
| 39 | 13454-36F00 | O RING | 0 шт. | — | |
|
| 40 | 13581-36F00 | SENSOR ASSY | 1 шт. | — | |
|
| 41 | 13605-39F00 | SCREW | 2 шт. | — | |
|
| 42 | 13582-36F00 | SHAFT | 0 шт. | — | |
|
| 43 | 13583-36F00 | TORSION SPRING | 0 шт. | — | |
|
| 44 | 13584-36F00 | RING | 0 шт. | — | |
|
| 45 | 13557-47070 | WASHER | 1 шт. | — | |
|
| 46 | 13617-44080 | E RING | 1 шт. | — | |
|
| 47 | 13587-36F00 | BOLT | 0 шт. | — | |
|
| 48 | 13588-36F00 | PLATE | 0 шт. | — | |
|
| 49 | 13589-36F00 | LEVER ASSY | 0 шт. | — | |
|
| 50 | 13381-36F10 | NEEDLE, JET (6CHY16-60) OPT | 0 шт. | — | |
|
| 50 | 13383-36FS0 | NEEDLE, JET (6CHY16-61) OPT | 1 шт. | — | |
|
| 50 | 13383-36FQ0 | NEEDLE, JET (6CHY16-62) OPT | 1 шт. | — | |
|
| 50 | 13383-36FN0 | NEEDLE, JET (6CHY16-63) OPT | 1 шт. | — | |
|
| 50 | 13383-36FL0 | NEEDLE, JET (6CHY16-64) OPT | 0 шт. | — | |
|
| 50 | 13381-36F30 | NEEDLE, JET (6CHY16-65) OPT | 0 шт. | — | |
|
| 50 | 13381-36F50 | NEEDLE, JET (6CHY16-66) OPT | 1 шт. | — | |
|
| 50 | 13381-36F20 | NEEDLE, JET (6CHY17-60) OPT | 0 шт. | — | |
|
| 50 | 13381-36F00 | NEEDLE, JET (6CHY17-61) OPT | 1 шт. | — | |
|
| 50 | 13383-36FR0 | NEEDLE, JET (6CHY17-62) OPT | 1 шт. | — | |
|
| 50 | 13383-36FP0 | NEEDLE, JET (6CHY17-63) OPT | 0 шт. | — | |
|
| 50 | 13383-36FM0 | NEEDLE, JET (6CHY17-64) OPT | 1 шт. | — | |
|
| 50 | 13381-36F60 | NEEDLE, JET (6CHY17-66) OPT | 1 шт. | — | |
|
| 51 | 09491-60007 | JET, MAIN (#300) OPT | 1 шт. | — | |
|
| 51 | 09491-62005 | JET, MAIN (#310) OPT | 1 шт. | — | |
|
| 51 | 09491-64002 | JET, MAIN (#320) OPT | 1 шт. | — | |
|
| 51 | 09491-66002 | JET, MAIN (#330) OPT | 1 шт. | — | |
|
| 51 | 09491-68002 | JET, MAIN (#340) OPT | 1 шт. | — | |
|
| 51 | 09491-70011 | JET, MAIN (#350) OPT | 1 шт. | — | |
|
| 51 | 09491-72011 | JET, MAIN (#360) OPT | 1 шт. | — | |
|
| 51 | 09491-74003 | JET, MAIN (#370) | 1 шт. | — | |
|
| 51 | 09491-74003 | JET, MAIN (#370) OPT | 1 шт. | — | |
|
| 51 | 09491-76003 | JET, MAIN (#380) OPT | 1 шт. | — | |
|
| 51 | 09491-78005 | JET, MAIN (#390) OPT | 1 шт. | — | |
|
| 51 | 09491-80010 | JET, MAIN (#400) OPT | 1 шт. | — | |
|
| 51 | 09491-82007 | JET, MAIN (#410) OPT | 1 шт. | — | |
|
| 51 | 09491-84008 | JET, MAIN (#420) OPT | 0 шт. | — | |
|
| 51 | 09491-86002 | JET, MAIN (#430) OPT | 1 шт. | — | |
|
| 51 | 09491-88001 | JET, MAIN (#440) OPT | 1 шт. | — | |
|
| 51 | 09491-90005 | JET, MAIN (#450) OPT | 1 шт. | — | |
|
| 51 | 09491-92002 | JET, MAIN (#460) OPT | 1 шт. | — | |
|
| 51 | 09491-94004 | JET, MAIN (#470) OPT | 1 шт. | — | |
|
| 51 | 09491-96001 | JET, MAIN (#480) OPT | 1 шт. | — | |
|
| 51 | 09491-98001 | JET, MAIN (#490) OPT | 1 шт. | — | |
|
| 51 | 09491-10001 | JET, MAIN (#500) OPT | 1 шт. | — | |
|
| 52 | 09492-25011 | JET, PILOT (25) OPT | 1 шт. | — | |
|
| 52 | 09492-27011 | JET, PILOT (27.5) OPT | 1 шт. | — | |
|
| 52 | 09492-30014 | JET, PILOT (30.0) OPT | 1 шт. | — | |
|
| 52 | 09492-32010 | JET, PILOT (32.5) OPT | 1 шт. | — | |
|
| 52 | 09492-35021 | JET, PILOT (35.0) OPT | 1 шт. | — | |
|
| 52 | 09492-37003 | JET, PILOT (37.5) OPT | 1 шт. | — | |
|
| 52 | 09492-40028 | JET, PILOT (40.0) OPT | 1 шт. | — | |
|
| 52 | 09492-42023 | JET, PILOT (42.5) OPT | 1 шт. | — | |
|
| 52 | 09492-45034 | JET, PILOT (45.0) OPT | 1 шт. | — | |
|
| 52 | 09492-47022 | JET, PILOT (47.5) OPT | 1 шт. | — | |
|
| 53 | 13394-36F20 | WASHER, JET NEEDLE CLIP OPT NOT SHOWN | 1 шт. | — | |
|
| 54 | 13518-36F20 | HOLDER, GUIDE OPT NOT SHOWN | 0 шт. | — | |
|
