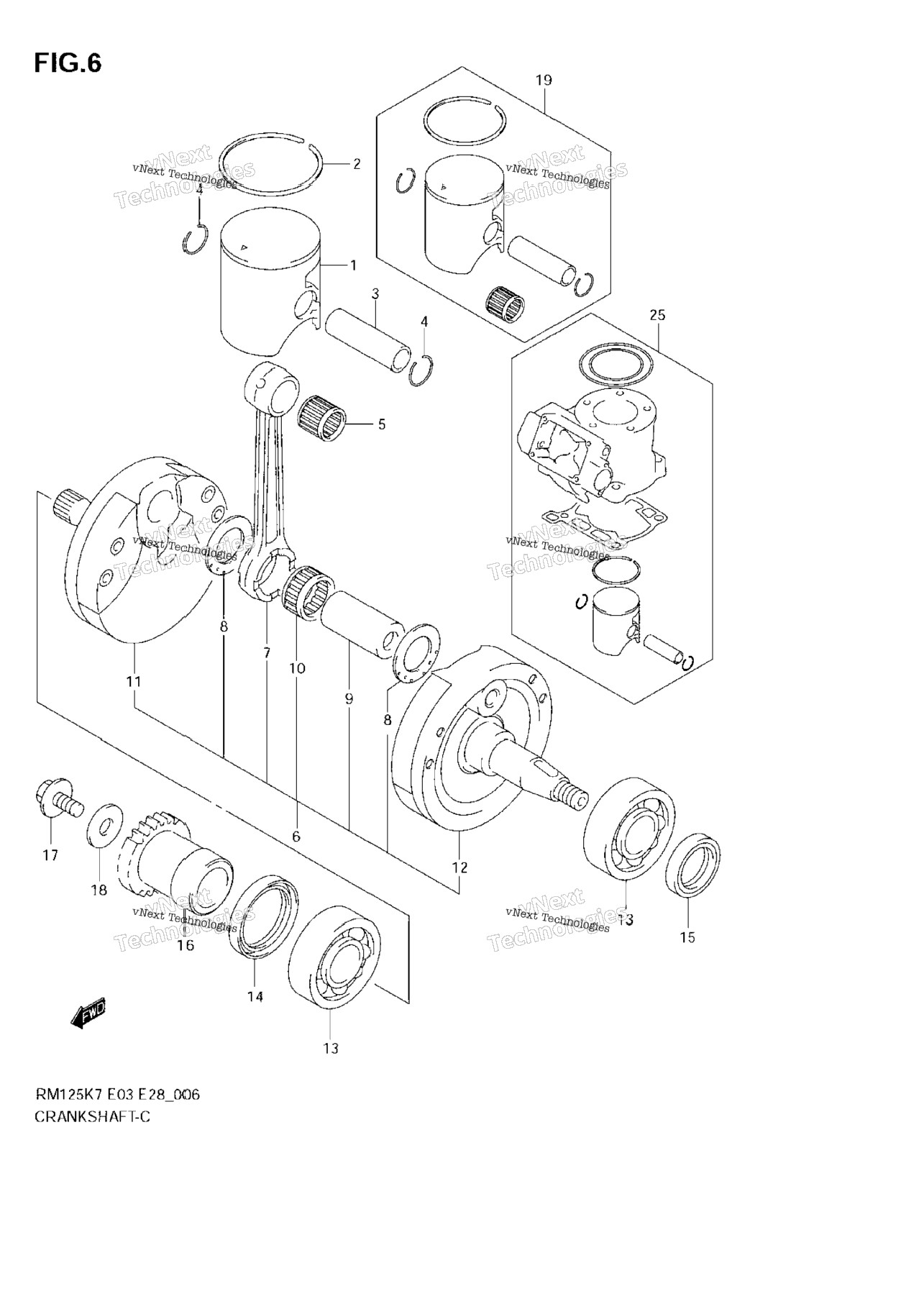

| 6 | 12200-36F40 | CRANKSHAFT ASSY Includes Item(s) 7 - 12 | 0 шт. | — | |
|
| 7 | 12161-36F21 | ROD, CONNECTING | 1 шт. | — | |
|
| 8 | 09160-22077 | WASHER | 2 шт. | — | |
|
| 9 | 12211-27C00 | PIN, CRANK | 1 шт. | — | |
|
| 10 | 09263-22060 | BEARING (22X28X16) | 1 шт. | — | |
|
| 11 | 12220-36F40 | CRANKSHAFT, RH | 0 шт. | — | |
|
| 12 | 12260-36F40 | CRANKSHAFT, LH | 0 шт. | — | |
|
| 13 | 09262-22025 | BEARING (22X56X16) | 2 шт. | — | |
|
| 14 | 09283-30061 | OIL SEAL, RH (30X40X7) | 1 шт. | — | |
|
| 15 | 09283-18007 | OIL SEAL, LH (18X30X6) | 1 шт. | — | |
|
| 16 | 21111-36E11 | GEAR, PRIMARY DRIVE (NT:19) | 1 шт. | — | |
|
| 17 | 09103-10339 | BOLT | 1 шт. | — | |
|
| 18 | 09164-11004 | WASHER | 1 шт. | — | |
|
| 19 | 12101-36821 | PISTON KIT OPT FOR E28; Includes Item(s) 20 - 24 | 1 шт. | — | |
|
| 22 | 12151-01B41 | PIN, PISTON | 1 шт. | — | |
|
| 22 | 12151-01B41 | PIN, PISTON NOT SHOWN | 1 шт. | — | |
|
| 23 | 09263-15040 | BEARING NOT SHOWN | 1 шт. | — | |
|
| 23 | 09263-15040 | BEARING, PISTON PIN | 1 шт. | — | |
|
| 25 | 12100-36871 | TOP END KIT, ENGINE OPT FOR E3; Includes Item(s) 26 - 31 | 1 шт. | — | |
|
| 26 | 11147-27C11 | O RING, CYLINDER HEAD NO.1 NOT SHOWN | 2 шт. | — | |
|
| 27 | 11148-27C11 | O RING, CYLINDER HEAD NO.2 NOT SHOWN | 2 шт. | — | |
|
| 28 | 11241-36F00 | GASKET, CYLINDER NOT SHOWN | 2 шт. | — | |
|
| 29 | 12110-36F00-0F0 | PISTON | 1 шт. | — | |
|
| 29 | 12110-36F00-0F0 | PISTON NOT SHOWN | 1 шт. | — | |
|
| 29 | 12110-36F00-0F0 | PISTON NOT SHOWN | 1 шт. | — | |
|
| 30 | 12141-36F00 | RING, PISTON | 1 шт. | — | |
|
| 30 | 12141-36F00 | RING, PISTON NOT SHOWN | 2 шт. | — | |
|
| 30 | 12141-36F00 | RING, PISTON NOT SHOWN | 1 шт. | — | |
|
| 31 | 09381-15001 | CIRCLIP | 2 шт. | — | |
|
| 31 | 09381-15001 | CIRCLIP NOT SHOWN | 2 шт. | — | |
|
| 31 | 09381-15001 | CIRCLIP NOT SHOWN | 2 шт. | — | |
|
