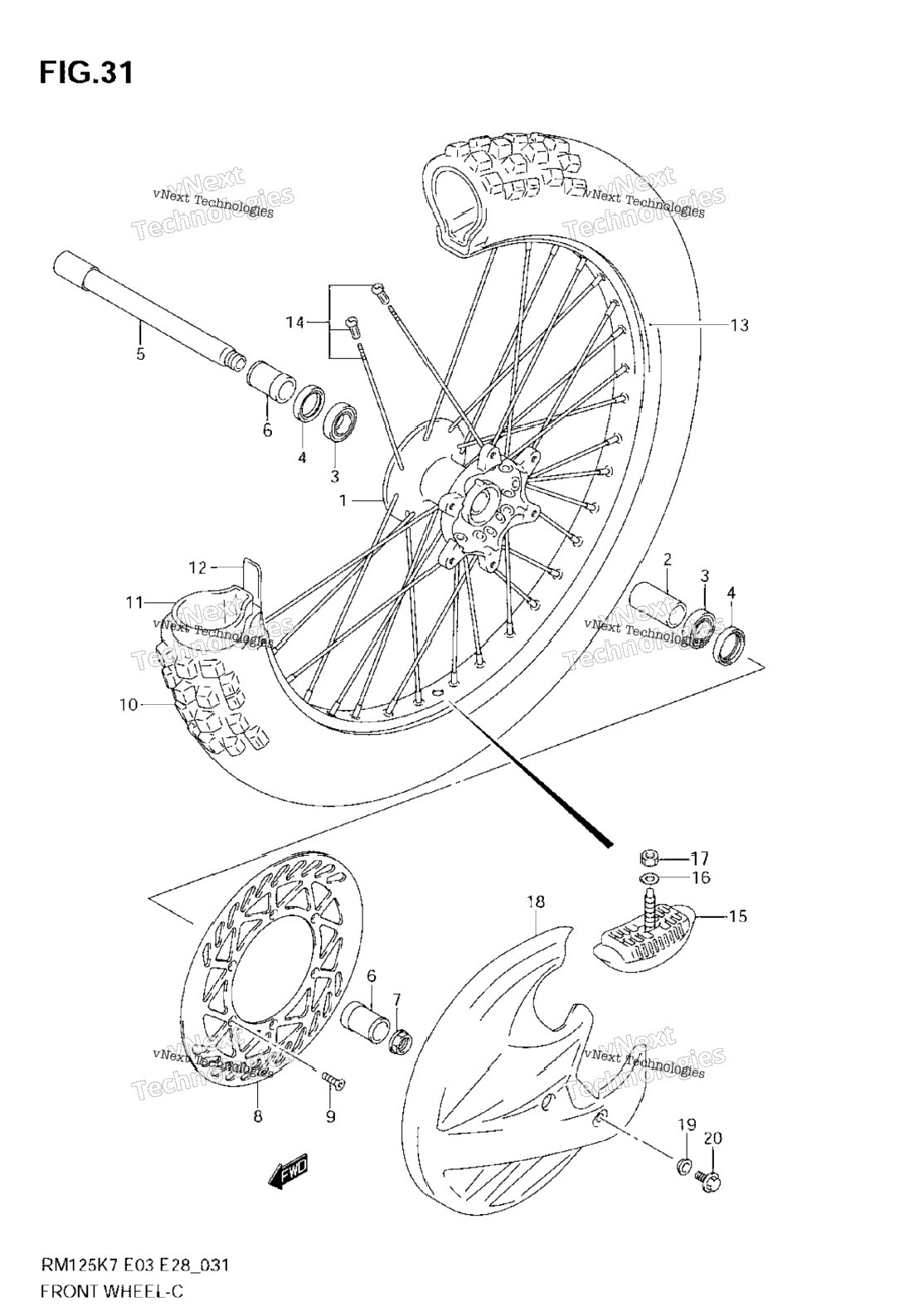

| 1 | 54111-36E00 | HUB, FRONT WHEEL | 1 шт. | — | |
|
| 2 | 54731-36E00 | SPACER, FRONT HUB (20.5X27.3X50) | 1 шт. | — | |
|
| 3 | 08130-69047 | BEARING | 2 шт. | — | |
|
| 4 | 09283-28023 | SEAL, FRONT HUB (28X37X7) | 2 шт. | — | |
|
| 5 | 54711-37F00 | AXLE, FRONT | 1 шт. | — | |
|
| 6 | 54741-37F01 | SPACER, FRONT AXLE | 2 шт. | — | |
|
| 7 | 09159-18016 | NUT | 1 шт. | — | |
|
| 8 | 59220-37F20 | DISC, FRONT BRAKE | 0 шт. | — | |
|
| 9 | 09120-06014 | SCREW | 6 шт. | — | |
|
| 10 | 55110-29F00 | TIRE, FRONT, 80/100-21 51M (DUNLOP) E28 | 0 шт. | — | |
|
| 10 | 55110-36F00 | TIRE, FRONT (80/100-21) (DUNLOP) E3 | 0 шт. | — | |
|
| 11 | 55200-29F00 | TUBE ASSY, WHEEL INNER | 1 шт. | — | |
|
| 12 | 55261-44AF0 | PROTECTOR, INNER TUBE | 1 шт. | — | |
|
| 13 | 55311-28C01 | RIM, FRONT WHEEL (1.60X21) | 0 шт. | — | |
|
| 14 | 55320-37F10 | SPOKE SET, FRONT WHEEL | 1 шт. | — | |
|
| 15 | 65270-14300 | STOPPER, BEAD | 1 шт. | — | |
|
| 16 | 08322-0108B | WASHER | 1 шт. | — | |
|
| 17 | 08310-0008B | NUT | 1 шт. | — | |
|
| 18 | 59231-36E20-YU1 | COVER, FRONT BRAKE DISC OPT | 1 шт. | — | |
|
| 19 | 09169-06053 | WASHER OPT | 2 шт. | — | |
|
| 20 | 09103-06233 | BOLT OPT | 2 шт. | — | |
|
