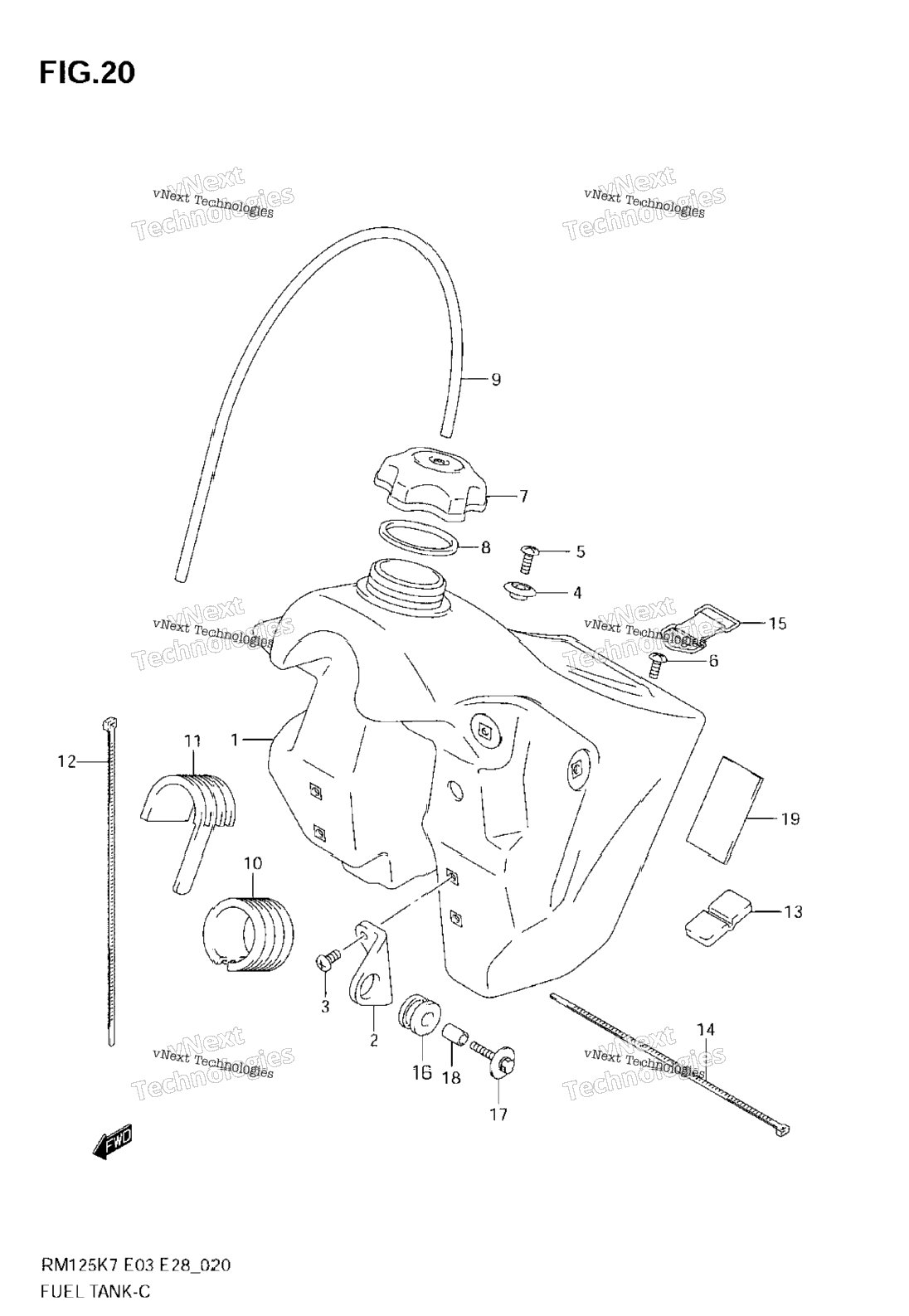

| 1 | 44110-36F21-YU1 | TANK, FUEL (YELLOW) Includes Item(s) 2 - 6 | 0 шт. | — | |
|
| 2 | 44131-27C01 | .BRACKET,FUEL TANK FR | 2 шт. | — | |
|
| 3 | 09103-06280 | BOLT, FRONT MODEL K8 | 4 шт. | — | |
|
| 3 | 02142-0612B | SCREW, FRONT MODEL K7 | 4 шт. | — | |
|
| 4 | 44132-37F10 | HOOK, SEAT FRONT | 1 шт. | — | |
|
| 5 | 02122-0620B | SCREW, HOOK | 1 шт. | — | |
|
| 6 | 09139-06134 | SCREW, TANK BAND | 1 шт. | — | |
|
| 7 | 44210-37F00 | CAP, FUEL TANK | 1 шт. | — | |
|
| 8 | 44248-27C00 | GASKET | 1 шт. | — | |
|
| 9 | 09352-50823-600 | HOSE, UPPER (L:600!350) | 1 шт. | — | |
|
| 10 | 44541-26C00 | CUSHION | 1 шт. | — | |
|
| 11 | 44541-37F00 | CUSHION | 1 шт. | — | |
|
| 12 | 09407-30402 | CLAMP | 2 шт. | — | |
|
| 13 | 44542-37F00 | CUSHION, REAR | 1 шт. | — | |
|
| 14 | 09407-25402 | CLAMP, REAR | 1 шт. | — | |
|
| 15 | 44560-27C00 | BAND, REAR | 1 шт. | — | |
|
| 16 | 14762-01B01 | CUSHION, FRONT | 2 шт. | — | |
|
| 17 | 09116-06195 | BOLT, FRONT | 2 шт. | — | |
|
| 18 | 09180-06268 | SPACER | 2 шт. | — | |
|
| 19 | 33652-19F00 | CUSHION, SIDE | 2 шт. | — | |
|
