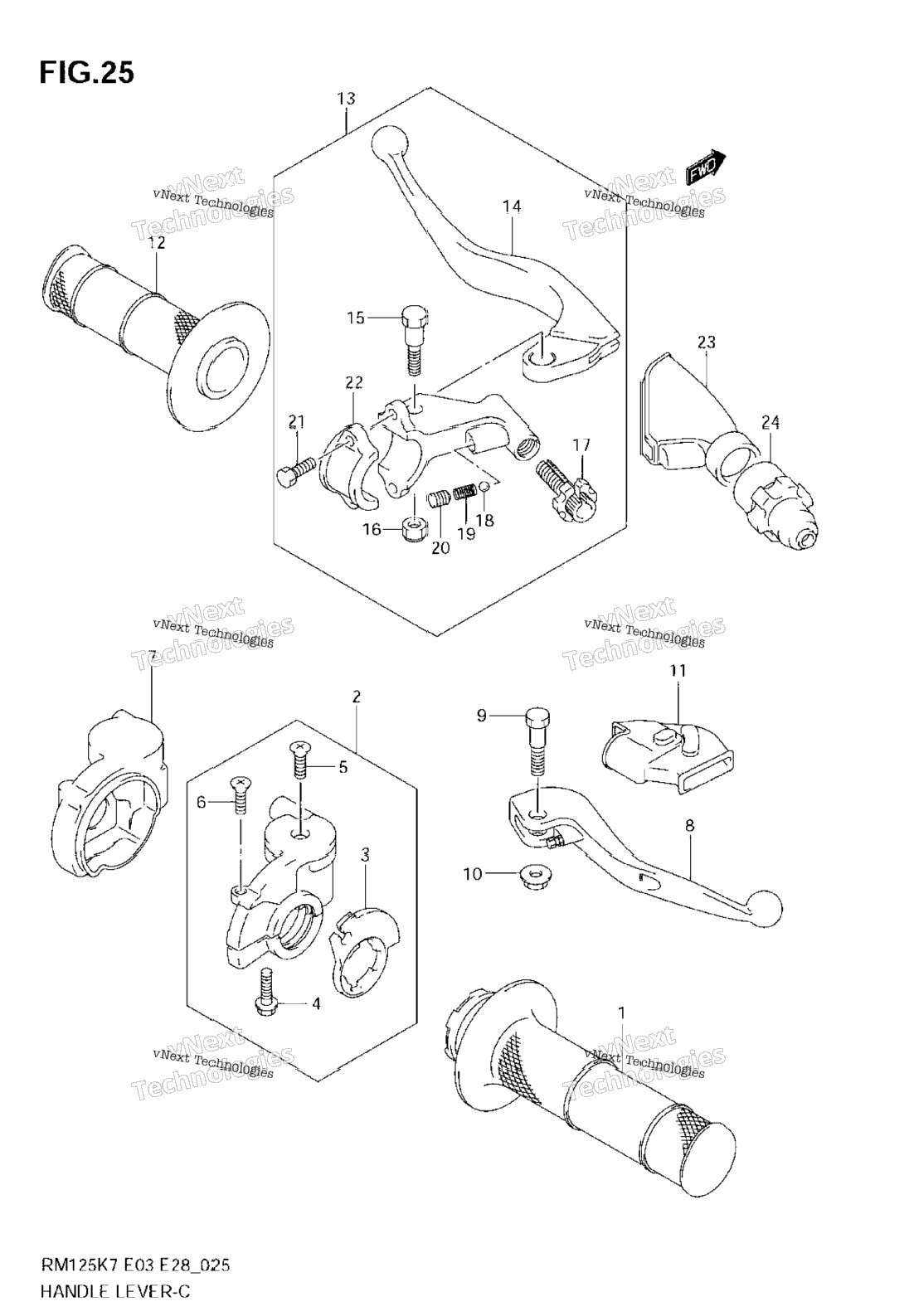

| 1 | 57110-36E01 | GRIP, THROTTLE | 1 шт. | — | |
|
| 2 | 57100-28E01 | CASE ASSY, THROTTLE Includes Item(s) 3 - 6 | 1 шт. | — | |
|
| 3 | 57114-28E00 | ROTOR | 1 шт. | — | |
|
| 4 | 01547-06253 | BOLT | 2 шт. | — | |
|
| 5 | 02122-0410A | SCREW | 1 шт. | — | |
|
| 6 | 02122-0416A | SCREW | 1 шт. | — | |
|
| 7 | 57129-28E01 | COVER, THROTTLE CASE | 1 шт. | — | |
|
| 8 | 57310-37F00 | LEVER, BRAKE | 1 шт. | — | |
|
| 9 | 57431-14500 | BOLT, BRAKE LEVER | 1 шт. | — | |
|
| 10 | 08316-1006A | NUT | 1 шт. | — | |
|
| 11 | 57343-35G00 | COVER, BRAKE | 1 шт. | — | |
|
| 12 | 57211-36E01 | GRIP, LH | 1 шт. | — | |
|
| 13 | 57500-37F11 | LEVER ASSY, CLUTCH Includes Item(s) 14 - 22 | 1 шт. | — | |
|
| 14 | 57621-28C40 | LEVER, CLUTCH | 1 шт. | — | |
|
| 15 | 57431-21D11 | .BOLT, LEVER PIVOT | 1 шт. | — | |
|
| 16 | 08319-2106A | .NUT | 1 шт. | — | |
|
| 17 | 57441-37F00 | ADJUSTER, CABLE | 1 шт. | — | |
|
| 18 | 06111-06003 | BALL | 1 шт. | — | |
|
| 19 | 09440-04003 | SPRING | 1 шт. | — | |
|
| 20 | 09134-06009 | SCREW | 1 шт. | — | |
|
| 21 | 09103-06234 | BOLT | 2 шт. | — | |
|
| 22 | 57512-37F00 | BRACKET, HOLDER | 1 шт. | — | |
|
| 23 | 57341-37F00 | COVER, CLUTCH LEVER | 1 шт. | — | |
|
| 24 | 57342-37F00 | COVER, CLUTCH ADJUSTER | 1 шт. | — | |
|
