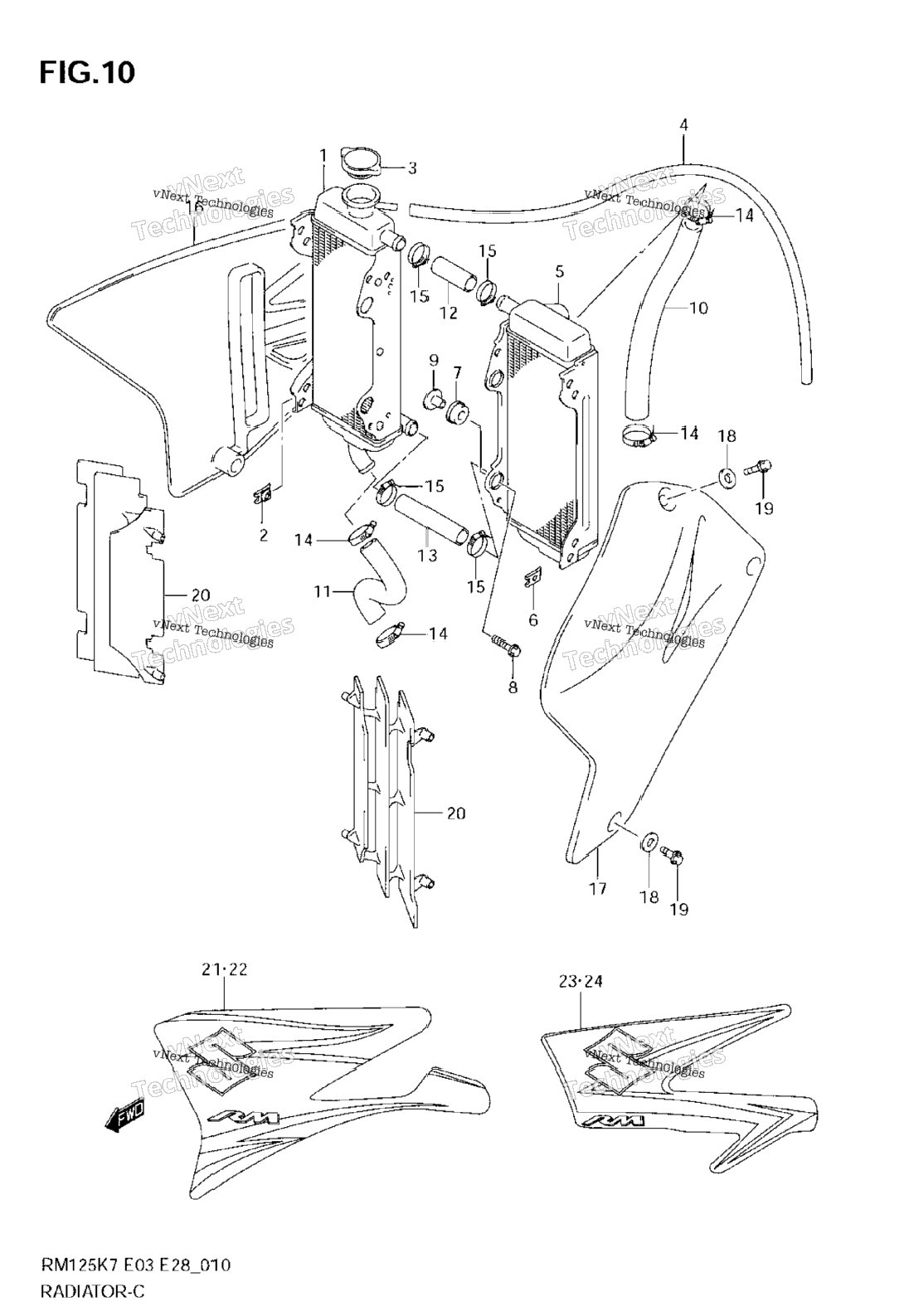

| 1 | 17710-36F11 | RADIATOR, RH Includes Item(s) 2 | 0 шт. | — | |
|
| 2 | 09148-06015 | NUT | 1 шт. | — | |
|
| 3 | 17730-12C20 | CAP, RADIATOR (1.1) | 1 шт. | — | |
|
| 4 | 09351-50803-00A | HOSE, OVER FLOW L:1000!650 | 1 шт. | — | |
|
| 5 | 17720-36F11 | RADIATOR, LH Includes Item(s) 6 | 0 шт. | — | |
|
| 6 | 09148-06015 | NUT | 1 шт. | — | |
|
| 7 | 17787-19A00 | CUSHION RADIATOR LWR | 4 шт. | — | |
|
| 8 | 09116-06186 | BOLT | 4 шт. | — | |
|
| 9 | 09180-06243 | SPACER | 4 шт. | — | |
|
| 10 | 17851-36F00 | HOSE, INLET | 1 шт. | — | |
|
| 11 | 17852-36F00 | HOSE, OUTLET | 1 шт. | — | |
|
| 12 | 17853-36F00 | HOSE, JOINT NO.1 | 1 шт. | — | |
|
| 13 | 17853-29E00 | HOSE, JOINT NO.2 | 1 шт. | — | |
|
| 14 | 09402-28513 | CLAMP | 4 шт. | — | |
|
| 15 | 09402-22512 | CLAMP | 4 шт. | — | |
|
| 16 | 17761-37F10-YU1 | COVER, RADIATOR RH (YELLOW) | 1 шт. | — | |
|
| 17 | 17762-37F10-YU1 | COVER, RADIATOR LH (YELLOW) | 1 шт. | — | |
|
| 18 | 69232-37F00 | WASHER, RADIATOR COVER | 6 шт. | — | |
|
| 19 | 09103-06233 | BOLT | 6 шт. | — | |
|
| 20 | 17831-37E11 | LOUVER RADIATOR | 2 шт. | — | |
|
| 21 | 68660-37F60-DRA | TAPE, RADIATOR COVER RH MODEL K7 | 0 шт. | — | |
|
| 22 | 68670-37F60-DRA | TAPE, RADIATOR COVER LH MODEL K7 | 0 шт. | — | |
|
| 23 | 68660-37F70-EMA | TAPE, RADIATOR COVER RH MODEL K8 | 0 шт. | — | |
|
| 24 | 68670-37F70-EMA | TAPE, RADIATOR COVER LH MODEL K8 | 0 шт. | — | |
|
