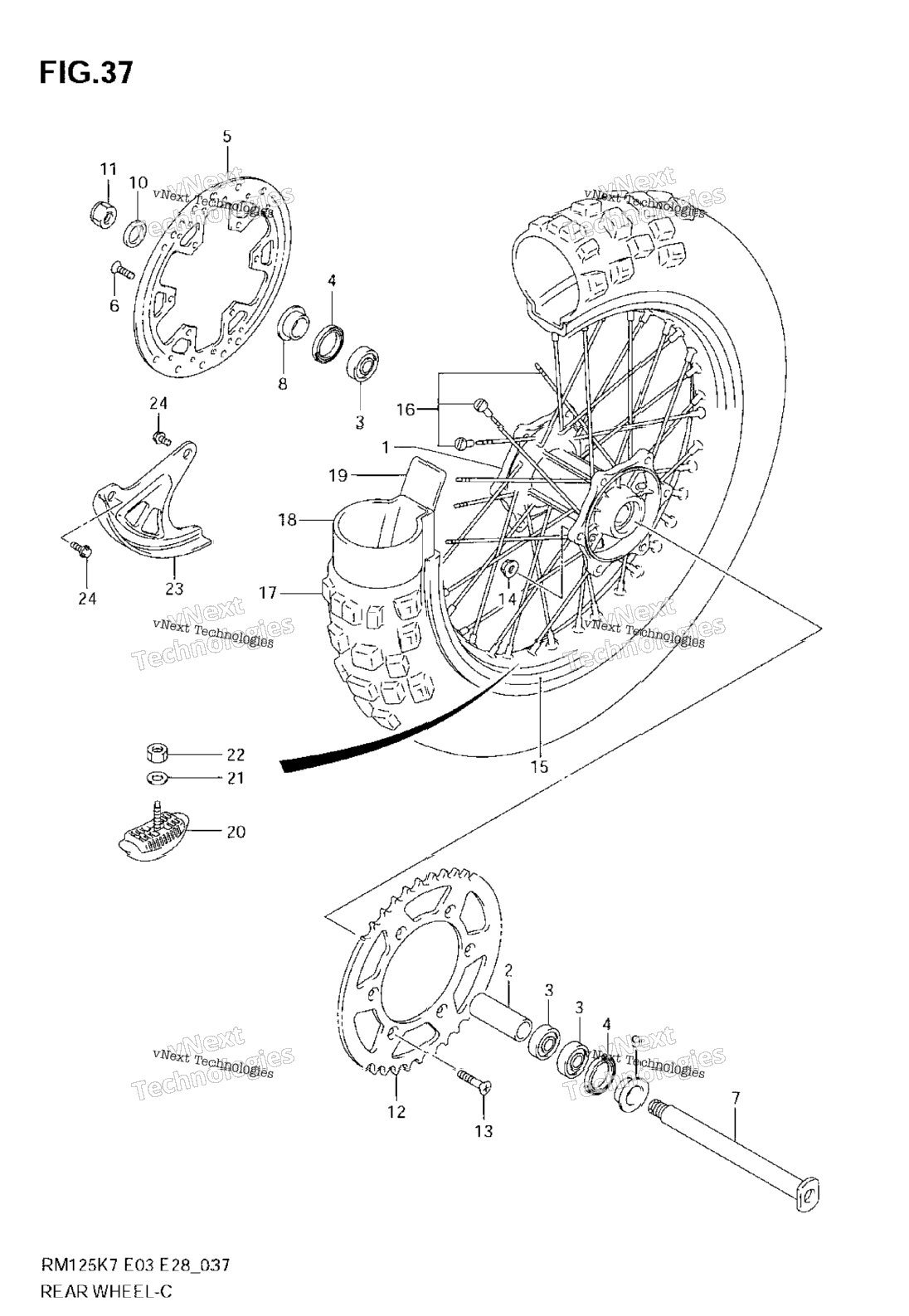

| 1 | 64111-36E00 | HUB, REAR WHEEL | 1 шт. | — | |
|
| 2 | 64731-36E00 | SPACER, BEARING (22.5X30X102) | 1 шт. | — | |
|
| 3 | 09262-22033 | BEARING (22X44X12) | 3 шт. | — | |
|
| 4 | 09283-30023 | SEAL, DUST (30X44X7) | 2 шт. | — | |
|
| 5 | 69211-37F20 | DISC, REAR BRAKE | 1 шт. | — | |
|
| 6 | 09103-06280 | SCREW | 6 шт. | — | |
|
| 7 | 64711-37F00 | AXLE, REAR | 1 шт. | — | |
|
| 8 | 64751-36E00 | SPACER, RH | 1 шт. | — | |
|
| 9 | 64751-36E00 | SPACER, LH | 1 шт. | — | |
|
| 10 | 09160-19022 | WASHER | 1 шт. | — | |
|
| 11 | 09159-18007 | NUT | 1 шт. | — | |
|
| 12 | 64511-40261 | SPROCKET, REAR (NT:51) | 1 шт. | — | |
|
| 13 | 64511-14D60 | SPROCKET, REAR (NT:48) OPT | 1 шт. | — | |
|
| 14 | 64511-28E00 | SPROCKET, REAR (NT:49) OPT | 1 шт. | — | |
|
| 15 | 64511-36E00 | SPROCKET, REAR (NT:50) OPT | 1 шт. | — | |
|
| 16 | 09120-08017 | SCREW (8X30.5) | 6 шт. | — | |
|
| 17 | 09159-08067 | NUT | 6 шт. | — | |
|
| 18 | 65311-36E00 | RIM, REAR WHEEL (2.15X19) | 1 шт. | — | |
|
| 19 | 65320-37F20 | SPOKE SET, WHEEL | 1 шт. | — | |
|
| 20 | 65110-36F00 | TIRE, REAR (100/90-19) (DUNLOP) | 0 шт. | — | |
|
| 21 | 55200-44610 | TUBE ASSY, WHEEL INNER | 1 шт. | — | |
|
| 22 | 65261-01B30 | PROTECTOR, INNER TUBE | 1 шт. | — | |
|
| 23 | 65270-43D00 | STOPPER, BEAD | 1 шт. | — | |
|
| 24 | 08322-0108B | WASHER | 1 шт. | — | |
|
| 25 | 08310-0008B | NUT | 1 шт. | — | |
|
| 26 | 69231-37F11 | COVER, REAR DISC | 1 шт. | — | |
|
| 27 | 09116-06197 | BOLT | 2 шт. | — | |
|
