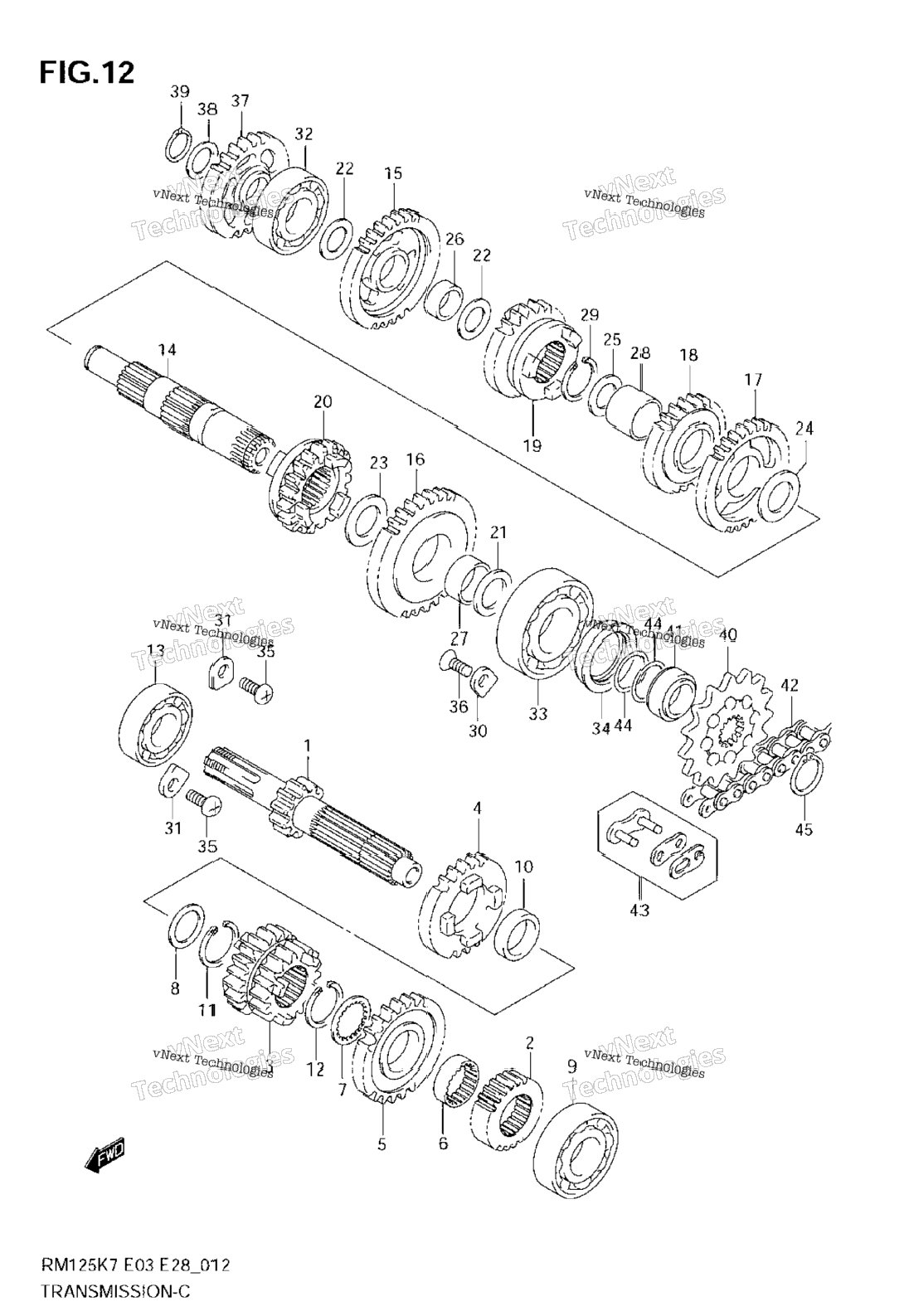

| 1 | 24120-36F11 | SHAFT, COUNTER (NT:14) | 1 шт. | — | |
|
| 2 | 24221-36F10 | GEAR, 2ND DRIVE (NT:16) | 1 шт. | — | |
|
| 3 | 24231-36F00 | GEAR, 3RD & 4TH DRIVE NT:18/20 | 1 шт. | — | |
|
| 4 | 24251-43D20 | GEAR, 5TH DRIVE (NT:19) | 1 шт. | — | |
|
| 5 | 24261-43D01 | GEAR, 6TH DRIVE (NT:20) | 1 шт. | — | |
|
| 6 | 24262-36F00 | BUSH, 6TH DRIVE | 1 шт. | — | |
|
| 7 | 09167-22024 | WASHER LOCK, 6TH DRIVE | 1 шт. | — | |
|
| 8 | 09181-22139 | WASHER, 5TH DRIVE (22X28X1.0) | 1 шт. | — | |
|
| 9 | 09262-17040 | BEARING, CNTR SHAFT, LH 17X35X10 | 1 шт. | — | |
|
| 10 | 09300-22008 | BUSH, 5TH DRIVE GEAR | 1 шт. | — | |
|
| 11 | 09380-22006 | CIRCLIP, 5TH DRIVE | 1 шт. | — | |
|
| 12 | 09380-22006 | CIRCLIP, 6TH DRIVE | 1 шт. | — | |
|
| 13 | 09262-20122 | BEARING, CNTR SHAFT, RH 20X47X12 | 1 шт. | — | |
|
| 14 | 24131-36F00 | SHAFT, DRIVE | 1 шт. | — | |
|
| 15 | 24311-36F00 | GEAR, 1ST DRIVEN (NT:29) | 1 шт. | — | |
|
| 16 | 24321-36F01 | GEAR, 2ND DRIVEN (NT:27) | 1 шт. | — | |
|
| 17 | 24331-36E01 | GEAR, 3RD DRIVEN (NT:26) | 1 шт. | — | |
|
| 18 | 24341-36E00 | GEAR, 4TH DRIVEN (NT:24) | 1 шт. | — | |
|
| 19 | 24351-36F00 | GEAR, 5TH DRIVEN (NT:20) | 1 шт. | — | |
|
| 20 | 24361-36E03 | GEAR, 6TH DRIVEN (NT:19) | 1 шт. | — | |
|
| 21 | 09160-20074 | WASHER, 2ND DRIVEN LH 20X30X3 | 1 шт. | — | |
|
| 22 | 09181-17167 | WASHER, 1ST DRIVEN (17X26X1) | 2 шт. | — | |
|
| 23 | 09181-22167 | SHIM (22X30X1.0) | 1 шт. | — | |
|
| 24 | 09181-22167 | SHIM (22X30X1.0) | 1 шт. | — | |
|
| 25 | 09181-22167 | SHIM (22X30X1.0) | 1 шт. | — | |
|
| 26 | 09300-17012 | BUSH, 1ST DRIVEN | 1 шт. | — | |
|
| 27 | 09300-22008 | BUSH, 2ND DRIVEN | 1 шт. | — | |
|
| 28 | 09300-22018 | BUSH, 3RD & 4TH DRIVEN | 1 шт. | — | |
|
| 29 | 09380-22006 | CIRCLIP, 4TH DRIVEN | 1 шт. | — | |
|
| 30 | 24741-20A00 | RETAINER | 1 шт. | — | |
|
| 31 | 24741-21A00 | RETAINER, CNTR SHAFT BEARING | 2 шт. | — | |
|
| 32 | 09262-17040 | BEARING, DRIVE SHAFT RH 17X40X9.5 | 1 шт. | — | |
|
| 33 | 09262-20110 | BEARING, DRIVE SHAFT LH 20X52X12.5 | 1 шт. | — | |
|
| 34 | 09289-28012 | SEAL, DRIVE SHAFT OIL | 1 шт. | — | |
|
| 35 | 02112-0610B | SCREW, CENTER SHAFT | 2 шт. | — | |
|
| 36 | 02122-0612A | SCREW, DRIVE SHAFT | 1 шт. | — | |
|
| 37 | 26260-43D01 | GEAR, KICK IDLE (NT:26) | 1 шт. | — | |
|
| 38 | 09181-17130 | WASHER (17X24X0.50) | 1 шт. | — | |
|
| 39 | 08331-3117A | CIRCLIP | 1 шт. | — | |
|
| 40 | 27511-14111 | SPROCKET, ENGINE (NT:12) | 1 шт. | — | |
|
| 41 | 27531-43D00 | SPACER | 1 шт. | — | |
|
| 42 | 27600-43D01-114 | CHAIN ASSY (DID520DMA,114L) | 1 шт. | — | |
|
| 43 | 27620-43D00 | JOINT (DID) OPT | 1 шт. | — | |
|
| 44 | 09280-20006 | O RING (D:1.9,ID:19.8) | 2 шт. | — | |
|
| 45 | 09380-20009 | CIRCLIP | 1 шт. | — | |
|
