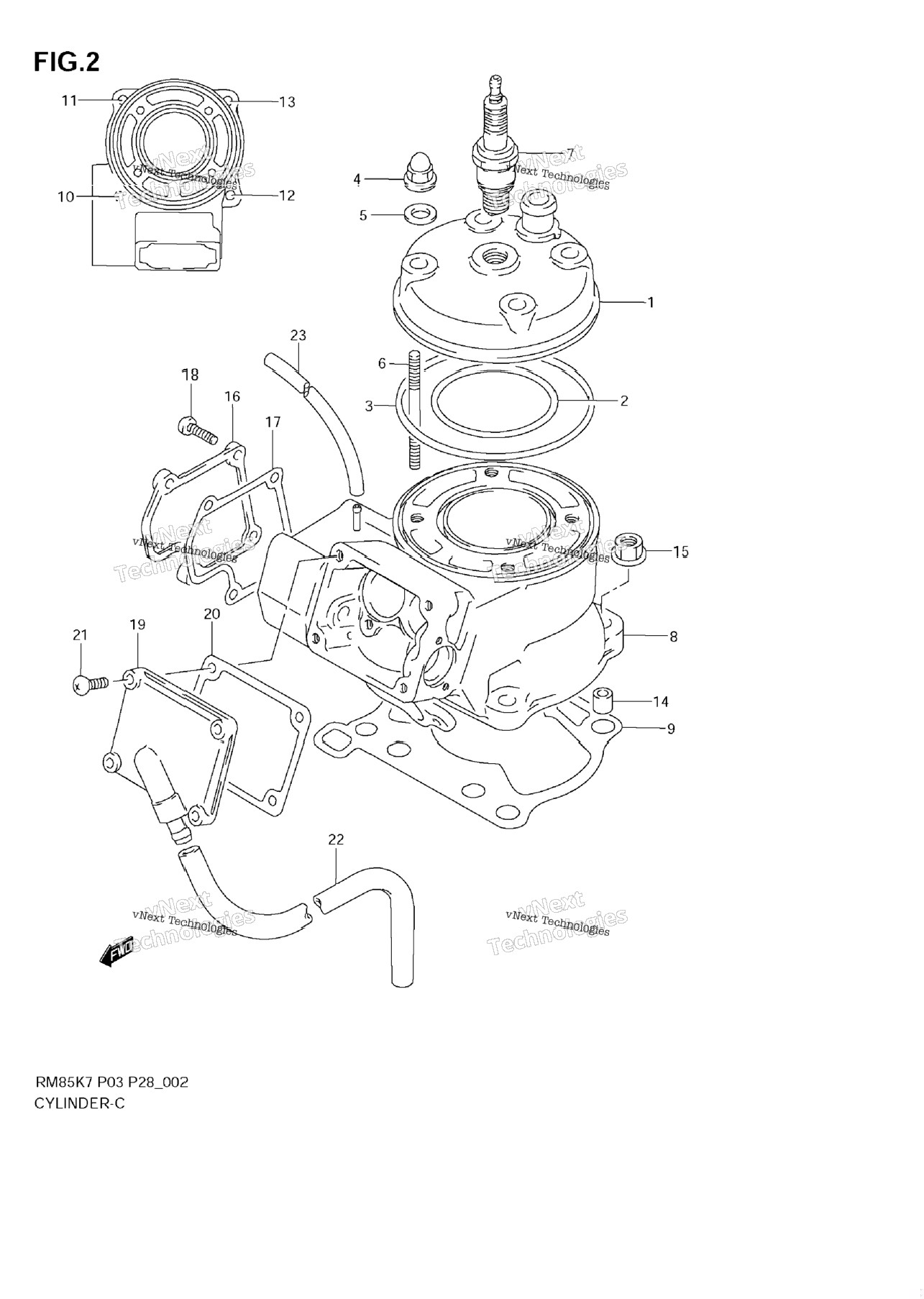

| 1 | 11111-03B10 | HEAD, CYLINDER | 1 шт. | — | |
|
| 2 | 11147-03B00 | O RING, CYLINDER HEAD NO.1 | 1 шт. | — | |
|
| 3 | 11148-03B00 | O RING, CYLINDER HEAD NO.2 | 1 шт. | — | |
|
| 4 | 09159-08049 | NUT | 4 шт. | — | |
|
| 5 | 09168-08021 | WASHER | 4 шт. | — | |
|
| 6 | 09108-08227 | STUD BOLT | 4 шт. | — | |
|
| 7 | 09482-00360 | SPARK PLUG (NGK,BR10ES) | 1 шт. | — | |
|
| 8 | 11200-03830 | CYLINDER SET | 1 шт. | — | |
|
| 9 | 11241-03B01 | GASKET, CYLINDER | 1 шт. | — | |
|
| 10 | 01421-0820A | STUD BOLT | 1 шт. | — | |
|
| 11 | 01421-0825A | STUD BOLT (8X25) | 1 шт. | — | |
|
| 12 | 09108-08220 | STUD BOLT (8X33) | 1 шт. | — | |
|
| 13 | 01421-0835A | STUD BOLT | 1 шт. | — | |
|
| 14 | 09206-11004 | PIN | 2 шт. | — | |
|
| 15 | 09159-08124 | NUT | 4 шт. | — | |
|
| 16 | 11231-02B40 | COVER, CYLINDER NO.1 | 1 шт. | — | |
|
| 17 | 11233-02B42 | GASKET, CYLINDER COVER NO.1 | 1 шт. | — | |
|
| 19 | 11248-12C01 | COVER, CYLINDER NO.2 | 1 шт. | — | |
|
| 20 | 11238-01B30-H17 | GASKET, CYLINDER COVER NO.2 | 1 шт. | — | |
|
| 21 | 09103-05023 | BOLT | 4 шт. | — | |
|
| 21 | 09103-05023 | BOLT | 4 шт. | — | |
|
| 22 | 09359-50823-600 | HOSE, EXHAUST VALVE BREATHER L:600!150 | 1 шт. | — | |
|
| 23 | 09352-50823-600 | HOSE, CYLINDER BREATHER L:600!260 | 1 шт. | — | |
|
