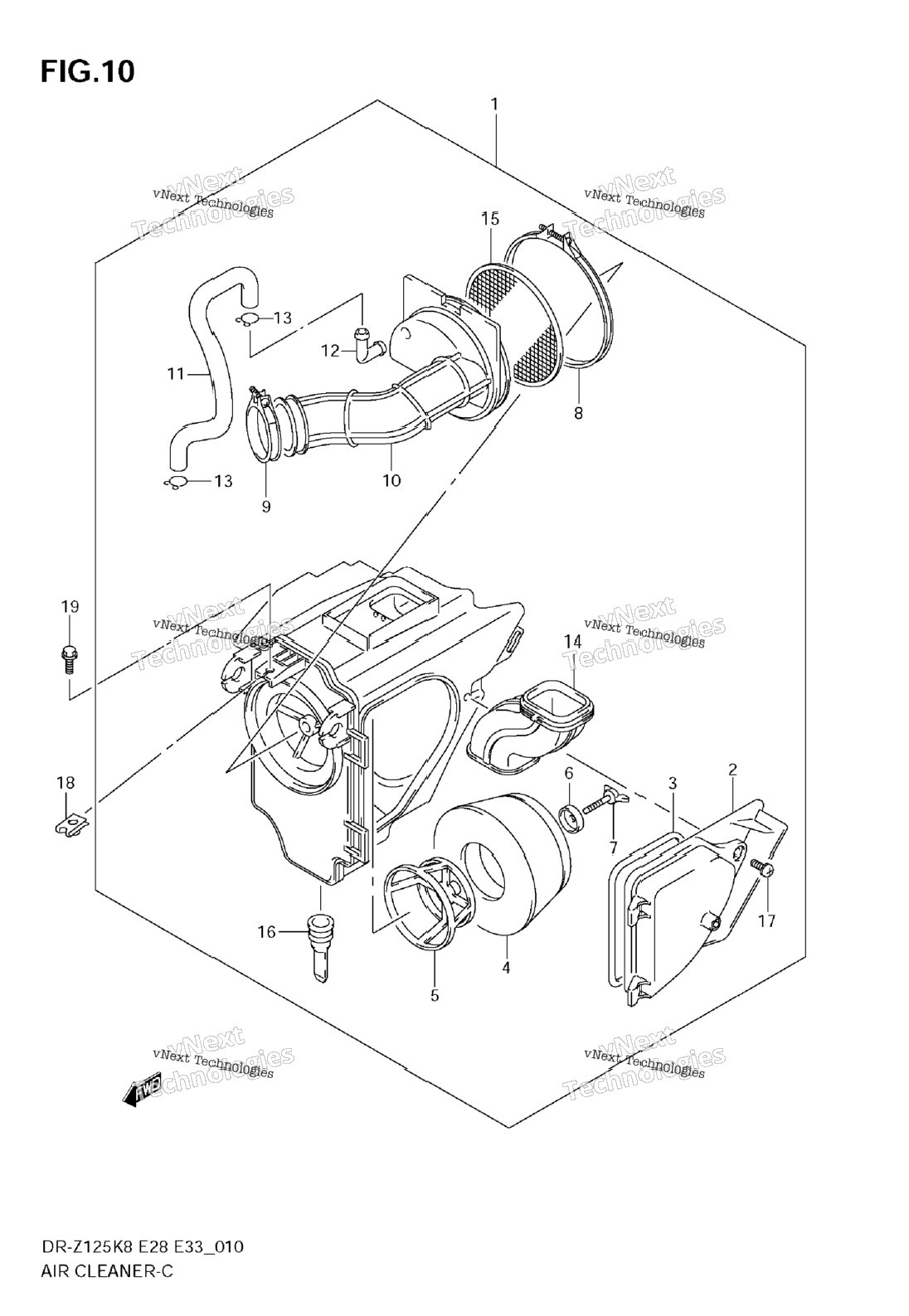

| 1 | 13700-08G01 | CLEANER ASSY, AIR Includes Item(s) 2 - 17 | 1 шт. | — | |
|
| 2 | 13740-08G01 | .CAP, AIR CLEANER | 1 шт. | — | |
|
| 3 | 13746-08G00 | GASKET | 1 шт. | — | |
|
| 4 | 13780-08G00 | FILTER | 1 шт. | — | |
|
| 5 | 13791-08G00 | .HOLDER, FILTER | 1 шт. | — | |
|
| 6 | 13792-13A01 | WASHER, FILTER | 1 шт. | — | |
|
| 7 | 13831-08G00 | BOLT, WING | 1 шт. | — | |
|
| 8 | 13826-14D01 | .CLAMP, OUTLET TUBE | 1 шт. | — | |
|
| 9 | 09402-48208 | CLAMP (CARBURETOR SIDE) | 1 шт. | — | |
|
| 10 | 13881-08G00 | TUBE, OUTLET | 1 шт. | — | |
|
| 11 | 13853-08G00 | TUBE, BREATHER | 1 шт. | — | |
|
| 12 | 13858-14D10 | JOINT | 1 шт. | — | |
|
| 13 | 09401-14301 | CLIP | 2 шт. | — | |
|
| 14 | 13891-08G00 | .TUBE, INLET | 1 шт. | — | |
|
| 15 | 13810-03G00 | .TRAP,FLAME | 1 шт. | — | |
|
| 16 | 13681-19B00 | TUBE, DRAIN | 1 шт. | — | |
|
| 17 | 02142-05163 | BOLT, WING | 1 шт. | — | |
|
| 18 | 09148-06021 | NUT, AIR CLEANER | 1 шт. | — | |
|
| 19 | 01550-0612B | BOLT, AIR CLEANER | 1 шт. | — | |
|
