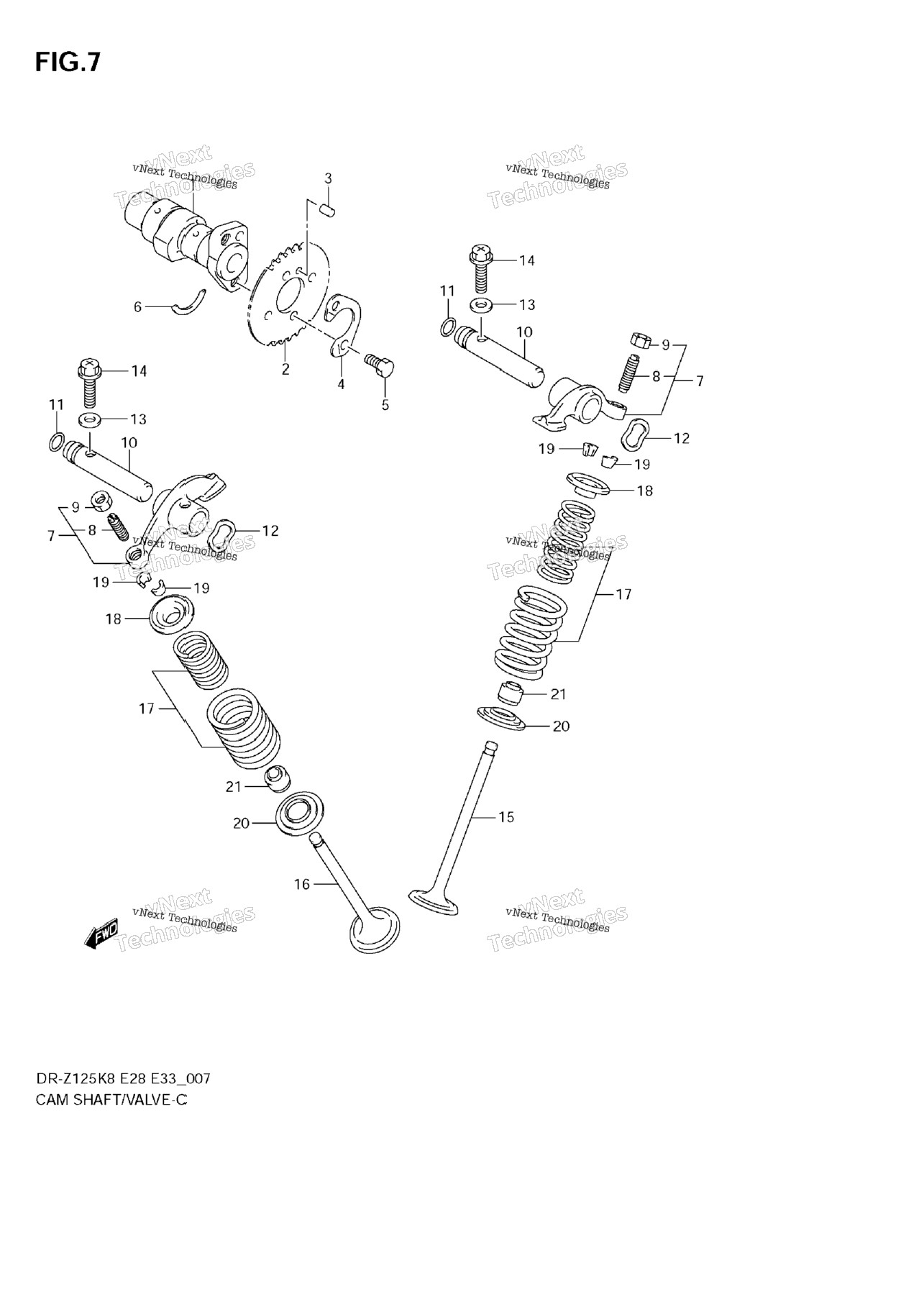

| 1 | 12711-08G00 | CAM SHAFT | 1 шт. | — | |
|
| 2 | 12741-05201 | SPROCKET, CAM SHAFT (NT:32) | 1 шт. | — | |
|
| 3 | 09261-05005 | PIN | 1 шт. | — | |
|
| 4 | 12747-05202 | WASHER, SPROCKET | 1 шт. | — | |
|
| 5 | 09100-06166 | BOLT (6X10.5) | 2 шт. | — | |
|
| 6 | 09390-22002 | C RING | 1 шт. | — | |
|
| 7 | 12850-25C00 | ARM, VALVE ROCKER Includes Item(s) 8 - 9 | 2 шт. | — | |
|
| 8 | 12842-32411 | .SCREW, TAPPET ADJUSTING | 2 шт. | — | |
|
| 9 | 12843-32400 | .NUT, ADJUSTING SCREW | 2 шт. | — | |
|
| 10 | 12861-05201 | SHAFT, VALVE ROCKER ARM | 2 шт. | — | |
|
| 11 | 09280-09005 | .O RING (D:1.9,ID:8.6) | 2 шт. | — | |
|
| 12 | 09164-12021 | WASHER | 2 шт. | — | |
|
| 13 | 09168-06023 | GASKET (5.8X13X1.2) | 2 шт. | — | |
|
| 14 | 02162-0625B | BOLT | 2 шт. | — | |
|
| 15 | 12911-04B00 | VALVE, INTAKE | 1 шт. | — | |
|
| 16 | 12912-24400 | VALVE, EXHAUST | 1 шт. | — | |
|
| 17 | 12920-05240 | SPRING SET, VALVE | 2 шт. | — | |
|
| 18 | 12931-49201 | RETAINER, VALVE SPRING | 2 шт. | — | |
|
| 19 | 12932-24400 | COTTER,VALVE | 4 шт. | — | |
|
| 20 | 12933-49201 | SEAT, VALVE SPRING | 2 шт. | — | |
|
| 21 | 09289-05015 | OIL SEAL | 2 шт. | — | |
|
