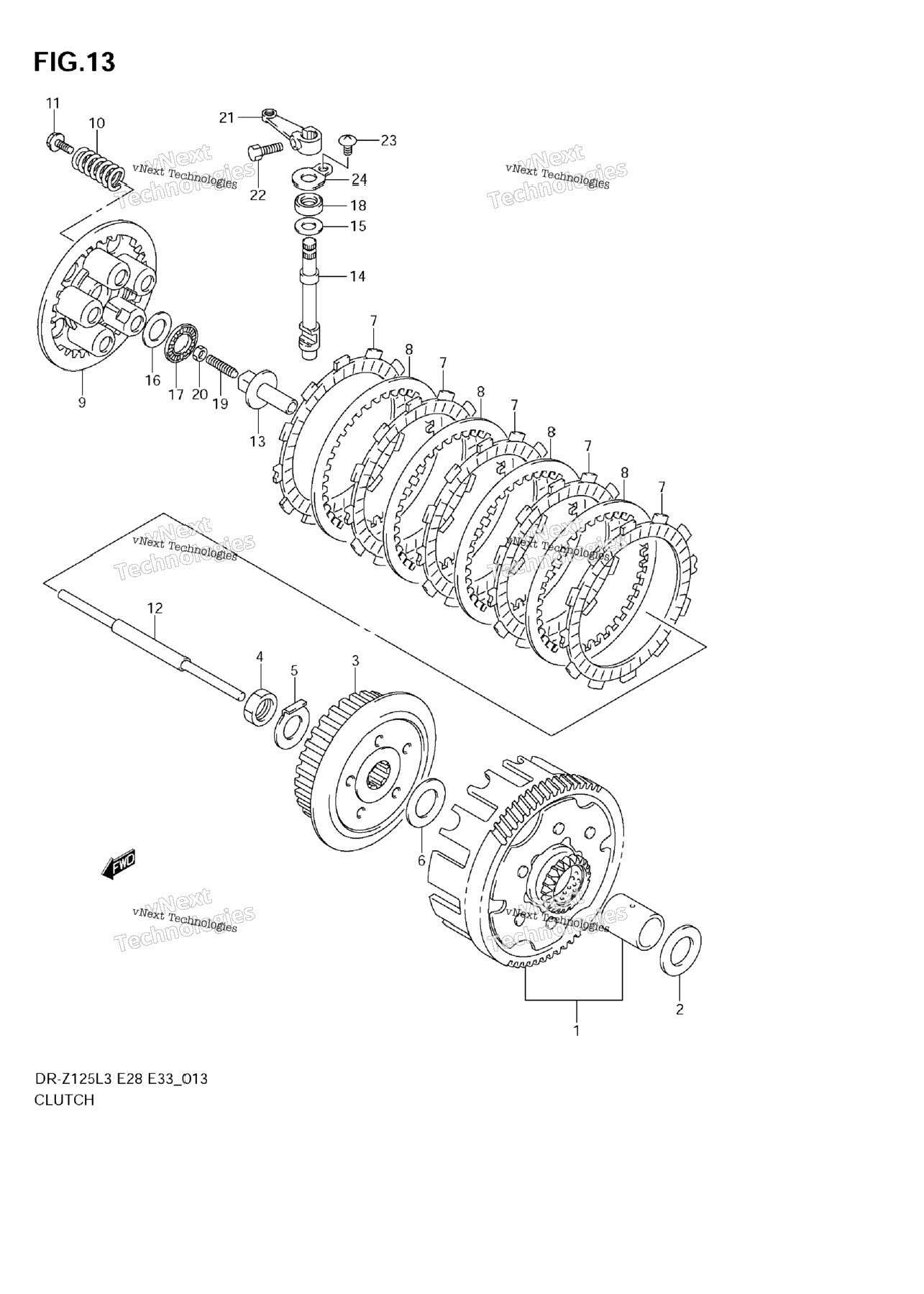

| 1 | 21200-44812 | GEAR ASSY, PRIMARY (NT:59/20) | 1 шт. | — | |
|
| 2 | 08211-20353 | THRUST WASHER | 0 шт. | — | |
|
| 3 | 21411-05200 | HUB, CLUTCH SLEEVE | 1 шт. | — | |
|
| 4 | 09140-16001 | NUT | 1 шт. | — | |
|
| 5 | 09169-16003 | WASHER | 1 шт. | — | |
|
| 6 | 08211-20352 | THRUST WASHER | 0 шт. | — | |
|
| 7 | 21441-25C01 | PLATE, CLUTCH DRIVE (T:3.0) | 5 шт. | — | |
|
| 8 | 21451-19A00 | PLATE, CLUTCH DRIVEN (T:1.6) | 4 шт. | — | |
|
| 9 | 21462-14103 | DISC, CLUTCH PRESSURE | 1 шт. | — | |
|
| 10 | 09440-15021 | SPRING | 5 шт. | — | |
|
| 11 | 09116-05020 | BOLT (5X16) | 5 шт. | — | |
|
| 12 | 23110-05203 | ROD, CLUTCH PUSH | 1 шт. | — | |
|
| 13 | 23121-38201 | PIECE, CLUTCH PUSH | 1 шт. | — | |
|
| 14 | 23122-05200 | CAM SHAFT, CLUTCH RELEASE | 1 шт. | — | |
|
| 15 | 09181-10195 | THRUST WASHER (10X20X1.0) | 1 шт. | — | |
|
| 16 | 09160-15045 | WASHER (15.5X28X1.0) | 1 шт. | — | |
|
| 17 | 09263-15003 | BEARING (15X28X2) | 1 шт. | — | |
|
| 18 | 09282-10012 | OIL SEAL (10X20X6) | 1 шт. | — | |
|
| 19 | 09134-06010 | SCREW (6X25) | 1 шт. | — | |
|
| 20 | 09140-06023 | NUT (6X3.6) | 1 шт. | — | |
|
| 21 | 23271-46010 | ARM, CLUTCH RELEASE | 1 шт. | — | |
|
| 22 | 01500-0616A | BOLT | 1 шт. | — | |
|
| 23 | 02142-0610A | SCREW | 1 шт. | — | |
|
| 24 | 23117-05200 | RETAINER, CL RLSE OIL SEAL | 1 шт. | — | |
|
