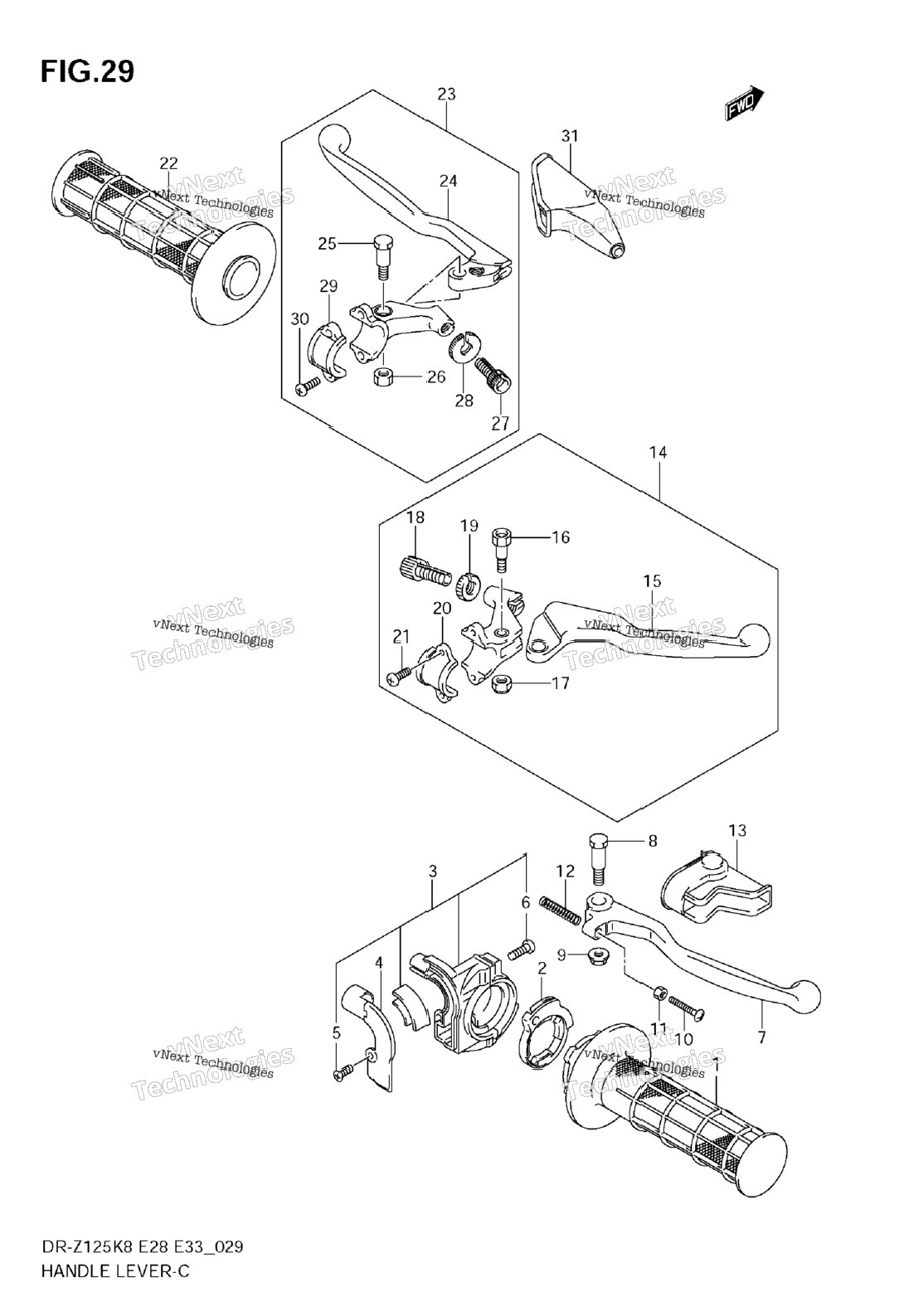

| 1 | 57110-27C00 | GRIP, THROTTLE | 1 шт. | — | |
|
| 2 | 57114-20410 | ROTOR, THROTTLE | 1 шт. | — | |
|
| 3 | 57100-03D00 | CASE ASSY, THROTTLE Includes Item(s) 4 - 6 | 1 шт. | — | |
|
| 4 | 57129-20411 | COVER | 1 шт. | — | |
|
| 5 | 02122-0410B | SCREW | 1 шт. | — | |
|
| 6 | 02112-05167 | SCREW | 2 шт. | — | |
|
| 7 | 57421-27C00 | LEVER, BRAKE DR-Z125L | 1 шт. | — | |
|
| 8 | 57431-14500 | BOLT, BRAKE LEVER DR-Z125L | 1 шт. | — | |
|
| 9 | 08316-1006B | NUT DR-Z125L | 1 шт. | — | |
|
| 10 | 57431-14511 | BOLT, ADJUST DR-Z125L | 1 шт. | — | |
|
| 11 | 08310-0005B | NUT DR-Z125L | 1 шт. | — | |
|
| 12 | 57318-14502 | SPRING, RETURN DR-Z125L | 1 шт. | — | |
|
| 13 | 57341-14501 | COVER, BRAKE LEVER DR-Z125L | 1 шт. | — | |
|
| 14 | 57300-14300 | LEVER ASSY, BRAKE DR-Z125; Includes Item(s) 15 - 21 | 0 шт. | — | |
|
| 15 | 57420-14300 | LEVER, BRAKE DR-Z125 | 1 шт. | — | |
|
| 16 | 57431-14301 | BOLT DR-Z125 | 1 шт. | — | |
|
| 17 | 08319-2106A | .NUT DR-Z125 | 1 шт. | — | |
|
| 18 | 57441-14200 | ADJUSTER, CABLE DR-Z125 | 1 шт. | — | |
|
| 19 | 57442-14200 | NUT DR-Z125 | 1 шт. | — | |
|
| 20 | 57512-14300 | BRACKET, HOLDER DR-Z125 | 1 шт. | — | |
|
| 21 | 02112-05167 | SCREW DR-Z125 | 2 шт. | — | |
|
| 22 | 57211-27C00 | GRIP LH | 1 шт. | — | |
|
| 23 | 57500-14300 | LEVER ASSY, CLUTCH Includes Item(s) 24 - 30 | 0 шт. | — | |
|
| 24 | 57620-14300 | LEVER, CLUTCH | 1 шт. | — | |
|
| 25 | 57431-14301 | BOLT | 1 шт. | — | |
|
| 26 | 08319-2106A | .NUT | 1 шт. | — | |
|
| 27 | 57441-14210 | ADJUSTER, CABLE | 1 шт. | — | |
|
| 28 | 57442-14200 | NUT | 1 шт. | — | |
|
| 29 | 57512-14300 | BRACKET | 1 шт. | — | |
|
| 30 | 09125-05102 | SCREW | 2 шт. | — | |
|
| 31 | 57341-40002 | COVER, CLUTCH LEVER | 1 шт. | — | |
|
