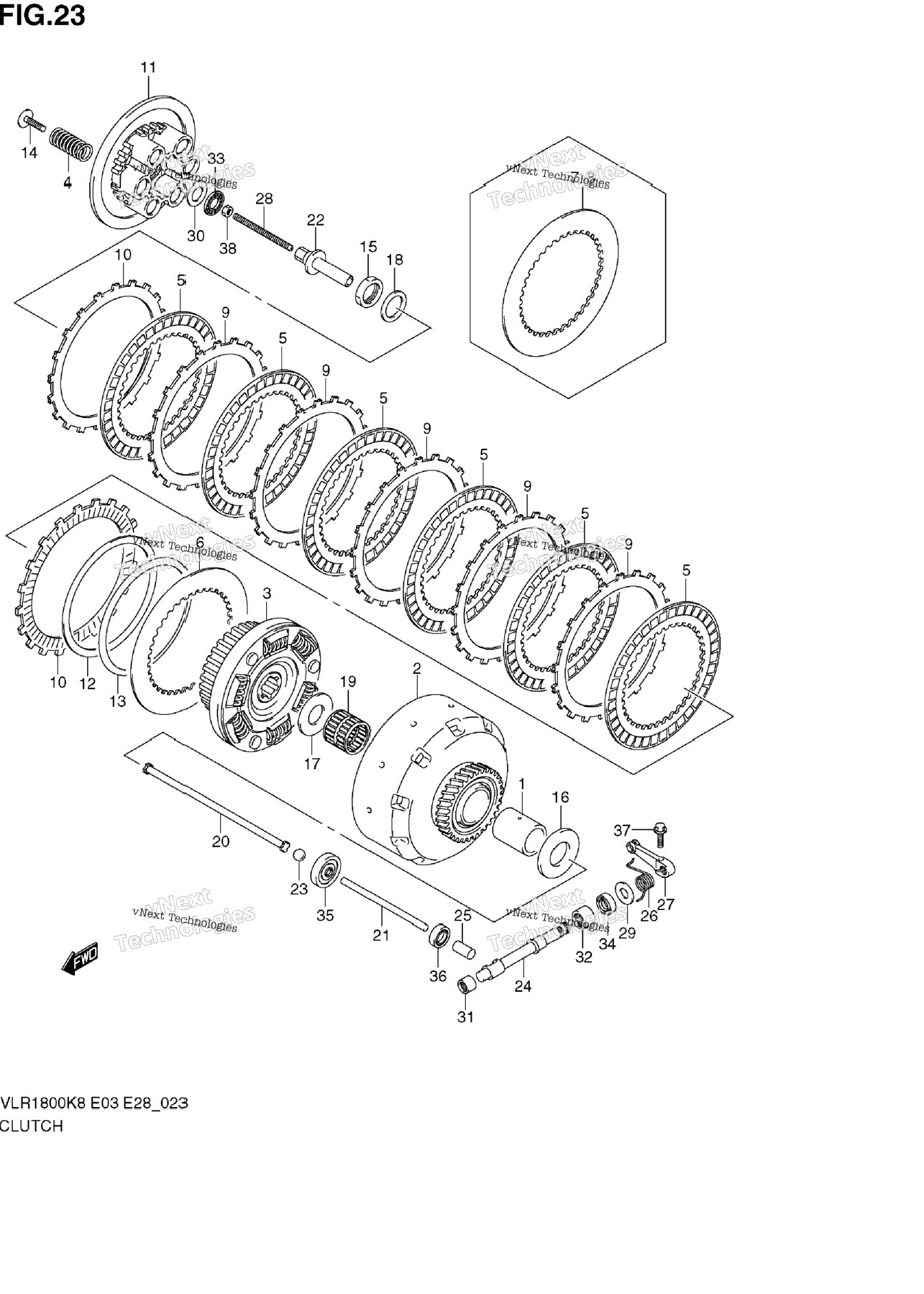

| 1 | 21151-48G00 | SPACER, PRIMARY DRIVE GEAR | 1 шт. | — | |
|
| 2 | 21100-48G01 | GEAR ASSY,PRIMARY DRIVE (NT:3 NT:33 | 1 шт. | — | |
|
| 3 | 21410-48G00 | HUB, CLUTCH | 1 шт. | — | |
|
| 4 | 21413-35F10 | SPRING, CLUTCH | 6 шт. | — | |
|
| 5 | 21441-22H00 | PLATE, CLUTCH DRIVE NO.1 T:3.0 | 6 шт. | — | |
|
| 6 | 21441-48G10 | PLATE, CLUTCH DRIVE NO.2 T:2.0 | 1 шт. | — | |
|
| 7 | 21441-48G20 | PLATE, CLUTCH DRIVE NO.3 T:2.3 | 1 шт. | — | |
|
| 8 | 21441-48G30 | PLATE, CLUTCH DRIVE NO.4 T:1.6 | 1 шт. | — | |
|
| 9 | 21451-22H00 | PLATE,CLUTCH DRIVEN NO.1 (T:2 T:2.9 | 5 шт. | — | |
|
| 10 | 21451-48G10 | PLATE,CLUTCH DRIVEN NO.2 (T:3 T:3.4 | 2 шт. | — | |
|
| 11 | 21462-48G00 | DISC, CLUTCH PRESSURE | 1 шт. | — | |
|
| 12 | 21471-48G00 | SEAT, WAVE WASHER 109X124X1.6 | 1 шт. | — | |
|
| 13 | 21472-48G00 | WASHER, CLUTCH PLATE | 1 шт. | — | |
|
| 14 | 21482-41G00 | BOLT, CLUTCH SPRING | 6 шт. | — | |
|
| 15 | 09159-24010 | NUT, CLUTCH SLEEVE HUB | 1 шт. | — | |
|
| 17 | 09160-25056 | WASHER, CLUTCH SLEEVE HUB THR 25X50X2.50 | 1 шт. | — | |
|
| 17 | 09160-25056 | WASHER, PRIMARY DRIVE 25X50X2.50 | 1 шт. | — | |
|
| 18 | 09164-20008 | WASHER, CLUTCH SLEEVE HUB WAVE | 1 шт. | — | |
|
| 19 | 09263-32020 | BEARING, PRIMARY DRIVE 32X37X38.3 | 1 шт. | — | |
|
| 20 | 23110-24F00 | ROD, CLUTCH | 1 шт. | — | |
|
| 21 | 23111-48G00 | ROD, CLUTCH PUSH, L | 1 шт. | — | |
|
| 22 | 23121-41G00 | PIECE, CLUTCH PUSH | 1 шт. | — | |
|
| 23 | 23122-02FR0 | BALL, CLUTCH PUSH | 1 шт. | — | |
|
| 24 | 23122-48G00 | CAMSHAFT, CLUTCH RELEASE | 1 шт. | — | |
|
| 25 | 23123-41G00 | CAP, CLUTCH PUSH ROD | 1 шт. | — | |
|
| 26 | 23125-48G00 | SPRING, CLUTCH RELEASE RETURN | 1 шт. | — | |
|
| 27 | 23271-48G00 | ARM, CLUTCH RELEASE | 1 шт. | — | |
|
| 28 | 09134-06015 | SCREW, CLUTCH PUSH ROD | 1 шт. | — | |
|
| 29 | 09160-10020 | WASHER, CLUTCH RELEASE 10.5X24X1.0 | 1 шт. | — | |
|
| 30 | 09160-15045 | WASHER, CLUTCH PUSH PIECE 15.5X28X1.0 | 1 шт. | — | |
|
| 31 | 09263-10014 | BEARING, CL RLSE CAM LOWER 10X14X10 | 1 шт. | — | |
|
| 32 | 09263-12027 | BEARING, CL RLSE CAM UPPER 12X18X12 | 1 шт. | — | |
|
| 33 | 09263-15003 | BEARING, CLUTCH PUSH PIECE 15X28X2.0 | 1 шт. | — | |
|
| 34 | 09282-10012 | SEAL, CL RLSE CAMSHAFT OIL | 1 шт. | — | |
|
| 35 | 09283-06010 | SEAL, CLUTCH PUSH ROD OIL | 1 шт. | — | |
|
| 36 | 09285-10004 | SEAL, CLUTCH PUSH ROD CAP | 1 шт. | — | |
|
| 37 | 01550-0620A | BOLT, CL RELEASE ARM | 1 шт. | — | |
|
| 38 | 08310-0006A | NUT, CLUTCH RELEASE ADJ | 1 шт. | — | |
|
