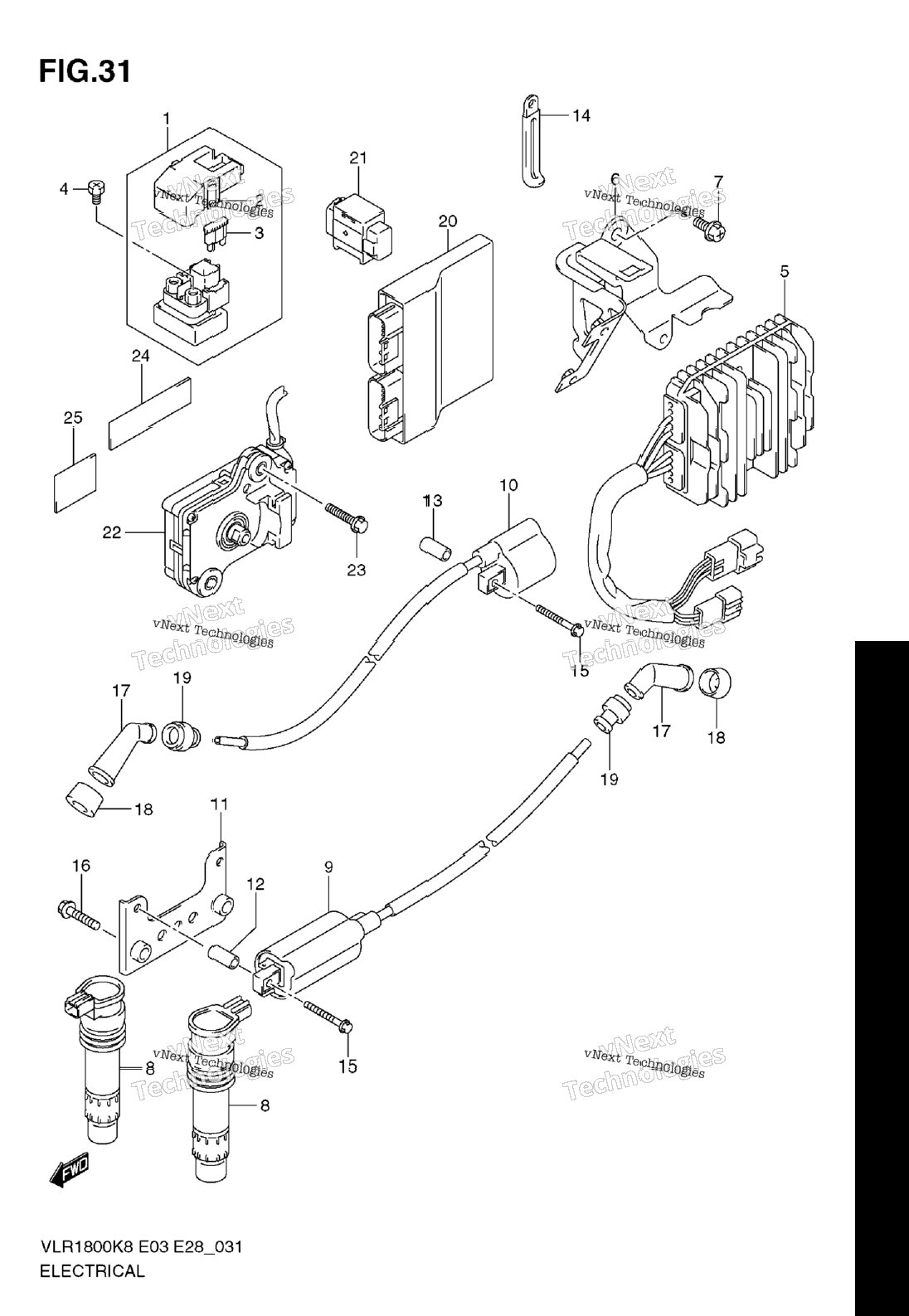

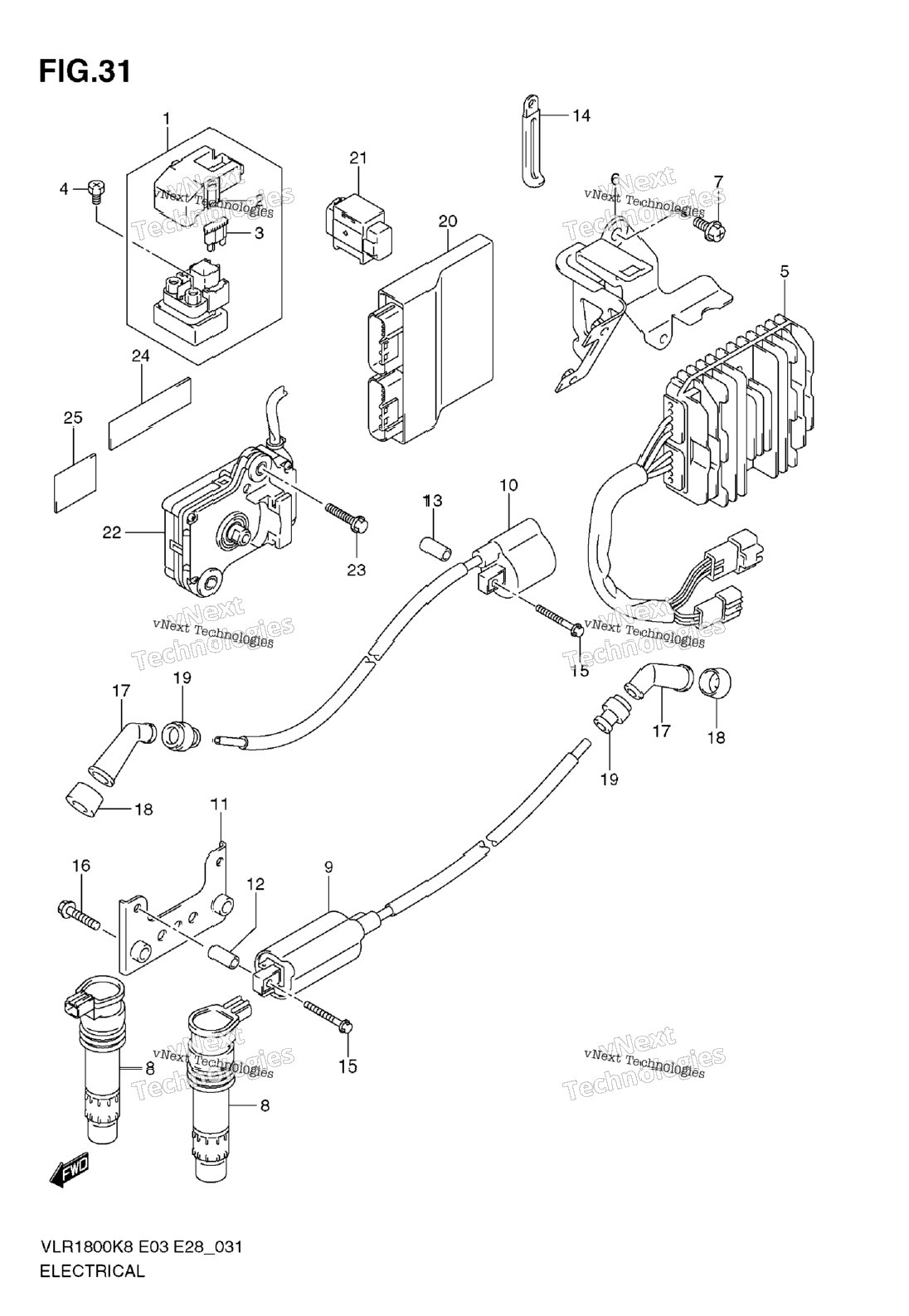

| 1 | 31800-06G10 | RELAY ASSY, STARTING MOTOR Includes Item(s) 2 - 3 | 1 шт. | — | |
|
| 2 | 31861-47E00 | COVER | 1 шт. | — | |
|
| 3 | 09481-30101 | FUSE (30A) | 2 шт. | — | |
|
| 4 | 09128-06013 | BOLT, STARTING MOTOR (6X8) | 2 шт. | — | |
|
| 5 | 32800-10G10 | RECTIFIER ASSY | 1 шт. | — | |
|
| 6 | 32830-22H00 | BRACKET, RECT FTG | 1 шт. | — | |
|
| 7 | 01550-0812A | BOLT, RECT FTG BRKT | 2 шт. | — | |
|
| 8 | 33410-35F10 | COIL ASSY, IGNITION | 2 шт. | — | |
|
| 9 | 33420-26F10 | COIL ASSY, IGNITION FRONT | 1 шт. | — | |
|
| 10 | 33410-22H00 | COIL ASSY, IGNITION REAR | 0 шт. | — | |
|
| 11 | 33414-22H00 | BRACKET, IGNITION COIL | 0 шт. | — | |
|
| 12 | 09180-06195 | SPACER, IGNITION FRONT 6.4X10X18 | 2 шт. | — | |
|
| 13 | 09180-06198 | SPACER, IGNITION REAR 6.2X12X16 | 2 шт. | — | |
|
| 14 | 09404-06433 | CLAMP (L:80) FOR RECTIFIER | 1 шт. | — | — |
|
| 15 | 01547-0535A | BOLT, IGNITION COIL | 0 шт. | — | |
|
| 16 | 01550-0625A | BOLT, IGNITION COIL BRKT | 3 шт. | — | |
|
| 17 | 33510-20E00 | CAP ASSY,SPARK PLUG | 2 шт. | — | |
|
| 18 | 33541-47D00 | SEAL,SPARK PLUG | 2 шт. | — | |
|
| 19 | 33542-38B00 | SEAL, HIGH TENSION CORD | 2 шт. | — | |
|
| 20 | 32920-22H10 | CONTROL, UNIT, FI | 1 шт. | — | |
|
| 21 | 32920-22H20 | CONTROL, UNIT, FI E33 | 0 шт. | — | |
|
| 22 | 33960-06G10 | SENSOR ASSY,FUEL CUT | 1 шт. | — | |
|
| 23 | 33970-41G00 | ACTUATOR ASSY, EXHAUST CONTROL | 1 шт. | — | |
|
| 24 | 01560-0625A | BOLT, ACTUATOR | 2 шт. | — | |
|
| 25 | 33652-26E00 | PROTECTOR (20X80X1.0) | 1 шт. | — | |
|
| 26 | 36611-16G00 | TAPE, HARNESS (28X50X0.13) | 1 шт. | — | |
|
