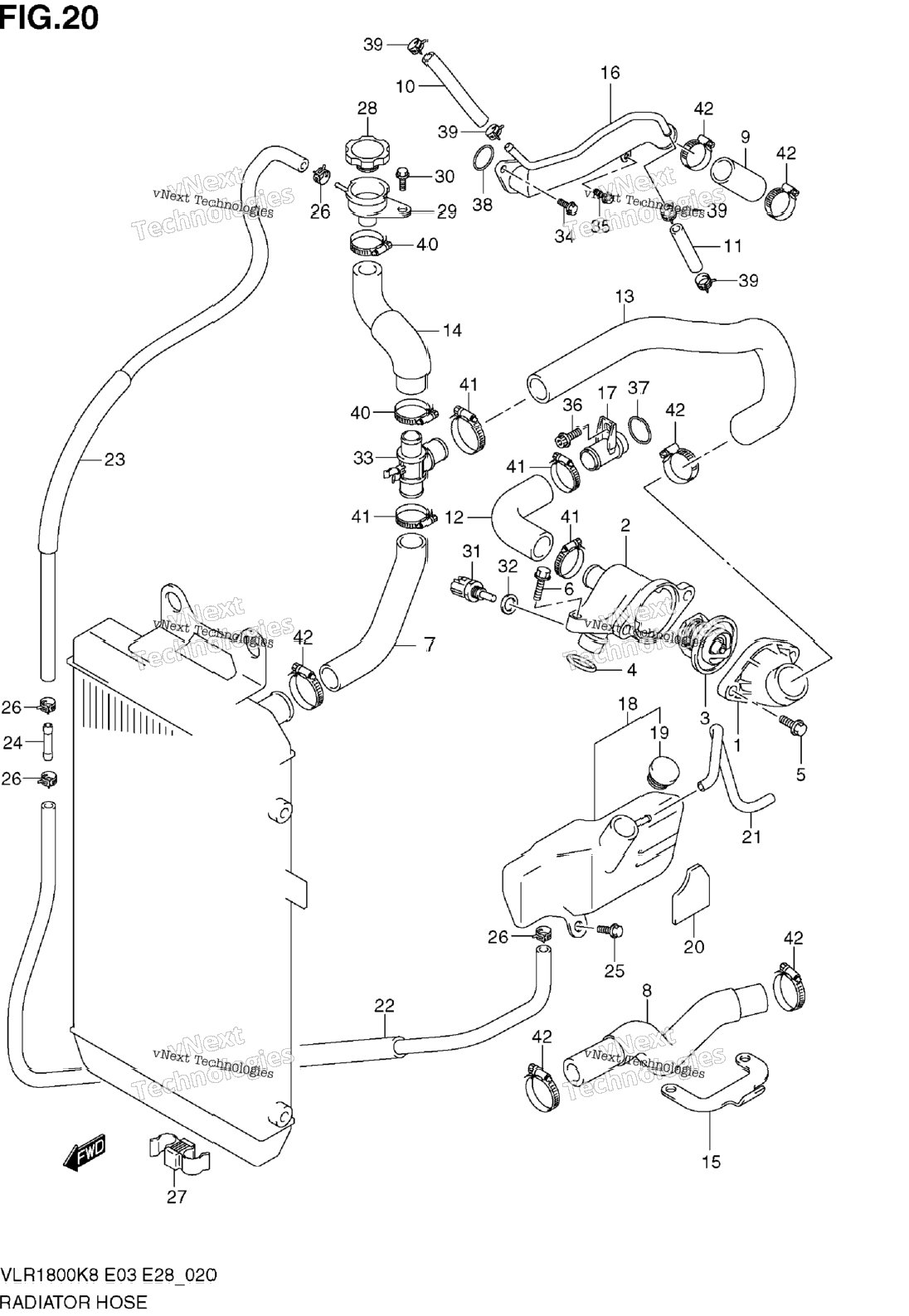

| 1 | 17661-48G10 | COVER, THERMOSTAT | 1 шт. | — | |
|
| 2 | 17662-48G00 | CONNECTOR, THERMOSTAT INLET | 1 шт. | — | |
|
| 3 | 17670-06G50 | THERMOSTAT, WATER | 1 шт. | — | |
|
| 4 | 09280-18009 | O RING | 1 шт. | — | |
|
| 5 | 01550-0620A | BOLT | 2 шт. | — | |
|
| 6 | 01547-0625A | BOLT | 1 шт. | — | |
|
| 7 | 17851-22H00 | HOSE, RADIATOR INLET | 1 шт. | — | |
|
| 8 | 17852-22H00 | HOSE, RADIATOR OUTLET | 0 шт. | — | |
|
| 9 | 17853-48G00 | HOSE, CYLINDER INLET | 1 шт. | — | |
|
| 10 | 17854-48G00 | HOSE, WATER BYPASS UPPER | 1 шт. | — | |
|
| 11 | 17855-48G00 | HOSE, WATER BYPASS LOWER | 1 шт. | — | |
|
| 12 | 17856-48G00 | HOSE, REAR CYL HEAD OUTLET | 1 шт. | — | |
|
| 13 | 17857-22H00 | HOSE, THERMOSTAT OUTLET | 1 шт. | — | |
|
| 14 | 17858-22H00 | HOSE, CONDUCTION | 1 шт. | — | |
|
| 15 | 17859-48G00 | BRACKET | 0 шт. | — | |
|
| 16 | 17860-48G00 | PIPE, CYL WATER INLET | 1 шт. | — | |
|
| 17 | 17890-06G20 | UNION,CONNECTOR HOSE | 1 шт. | — | |
|
| 18 | 17910-22H00 | TANK ASSY, RESERVOIR Includes Item(s) 19 | 1 шт. | — | |
|
| 19 | 17931-02FA0 | .CAP, RESERVOIR TANK | 1 шт. | — | |
|
| 20 | 17912-22H00 | CUSHION | 0 шт. | — | |
|
| 21 | 17982-22H00 | HOSE, TANK OVERFLOW | 1 шт. | — | |
|
| 22 | 17981-22H00 | HOSE, TANK INLET NO.1 | 0 шт. | — | |
|
| 23 | 17981-22H10 | HOSE, TANK INLET NO.2 | 0 шт. | — | |
|
| 24 | 09364-06005 | JOINT, HOSE | 1 шт. | — | |
|
| 25 | 09111-06085 | BOLT (6X12) | 1 шт. | — | |
|
| 26 | 09401-08411 | CLIP | 4 шт. | — | |
|
| 27 | 09408-00224 | CLAMP | 0 шт. | — | |
|
| 28 | 17730-12C30 | CAP | 1 шт. | — | |
|
| 29 | 17791-24D00 | CONDUCTION | 1 шт. | — | |
|
| 30 | 01550-0620A | BOLT | 1 шт. | — | |
|
| 31 | 13650-49X00 | SENSOR,TEMP | 1 шт. | — | |
|
| 32 | 09168-12017 | GASKET | 1 шт. | — | |
|
| 33 | 17891-48G00 | JOINT, 3 WAY | 1 шт. | — | |
|
| 34 | 09103-06274 | BOLT | 2 шт. | — | |
|
| 35 | 09103-06280 | BOLT | 1 шт. | — | |
|
| 36 | 07130-0612A | BOLT | 1 шт. | — | |
|
| 37 | 09280-18009 | O RING | 1 шт. | — | |
|
| 38 | 09280-26005 | O RING | 1 шт. | — | |
|
| 39 | 09401-12409 | CLIP | 4 шт. | — | |
|
| 40 | 09402-28513 | CLAMP | 2 шт. | — | |
|
| 41 | 09402-32512 | CLAMP | 4 шт. | — | |
|
| 42 | 09402-38512 | CLAMP | 6 шт. | — | |
|
