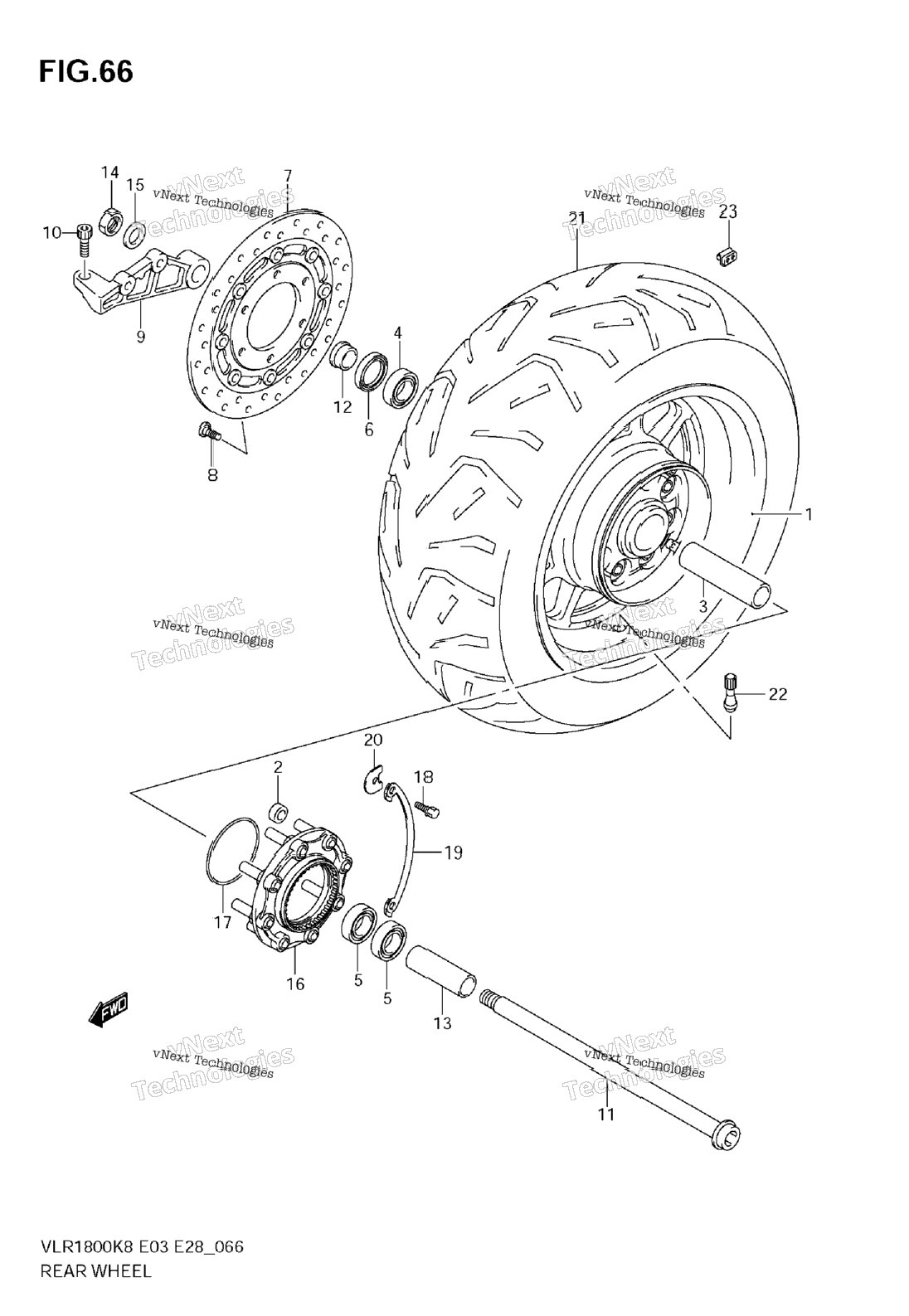

| 1 | 64100-22840-12Z | WHEEL SET, REAR (16M/CXMT8.00) (SILVER) MODEL K8 | 0 шт. | — | |
|
| 2 | 64100-22850-12Z | WHEEL SET, REAR (16M/CXMT8.00) (SILVER) MODEL K9; Includes Item(s) 2 - 2 | 1 шт. | — | |
|
| 3 | 09319-12062 | BUSH, REAR HUB MODEL K8 | 8 шт. | — | |
|
| 4 | 09319-12019 | BUSH, REAR HUB MODEL K9 | 8 шт. | — | |
|
| 5 | 64731-22H00 | SPACER, REAR WHEEL BEARING | 0 шт. | — | |
|
| 6 | 09262-25061 | BEARING, REAR WHEEL, R | 1 шт. | — | |
|
| 7 | 08143-62057 | BEARING, REAR WHEEL, L | 2 шт. | — | |
|
| 8 | 09285-32004 | .SEAL,OIL (32X52X7) | 1 шт. | — | |
|
| 9 | 69210-10F50 | DISC, REAR BRAKE MODEL K8 | 1 шт. | — | |
|
| 10 | 69210-10F40 | DISC, REAR BRAKE MODEL K9 | 1 шт. | — | |
|
| 11 | 09106-08160 | BOLT, DISC | 6 шт. | — | |
|
| 12 | 69721-48G20 | BRACKET, REAR CALIPER | 0 шт. | — | |
|
| 13 | 09103-12109 | BOLT, RR CALIPER BRACKET | 1 шт. | — | |
|
| 14 | 64711-22H00 | AXLE, REAR | 1 шт. | — | |
|
| 15 | 64741-48G00 | SPACER, REAR AXLE, R | 1 шт. | — | |
|
| 16 | 64772-48G00 | SPACER, REAR AXLE, L | 1 шт. | — | |
|
| 17 | 09159-22007 | NUT, REAR AXLE | 1 шт. | — | |
|
| 18 | 09160-22081 | WASHER, REAR AXLE NUT | 1 шт. | — | |
|
| 19 | 64680-48G00 | JOINT ASSY, REAR HUB | 1 шт. | — | |
|
| 20 | 09280-80001 | O-RING (D:2.4,ID:79.8) | 1 шт. | — | |
|
| 21 | 09119-06049 | BOLT, DRIVEN JOINT WASHER | 4 шт. | — | |
|
| 22 | 64679-48G00 | WASHER, REAR HUB DRIVEN | 2 шт. | — | |
|
| 23 | 64677-48G10 | WASHER, THRUST | 4 шт. | — | |
|
| 24 | 65110-22H00 | TIRE, RR, 240/55R16M/C 86V (BRIDGESTONE) G852 VLR1800K8/K9/TK8 | 0 шт. | — | |
|
| 25 | 65110-22H10 | TIRE, RR, 240/55R16M/C 86V (BRIDGESTONE) G852 VLR1800TK9 | 0 шт. | — | |
|
| 26 | 43130-24A00 | VALVE ASSY,WHEEL RIM (TR412) | 1 шт. | — | |
|
| 27 | 55411-22H00 | BALANCER,WHEEL (10G) | 1 шт. | — | |
|
| 28 | 55412-22H00 | BALANCER,WHEEL (20G) | 1 шт. | — | |
|
| 29 | 55413-22H00 | BALANCER,WHEEL (30G) | 1 шт. | — | |
|
