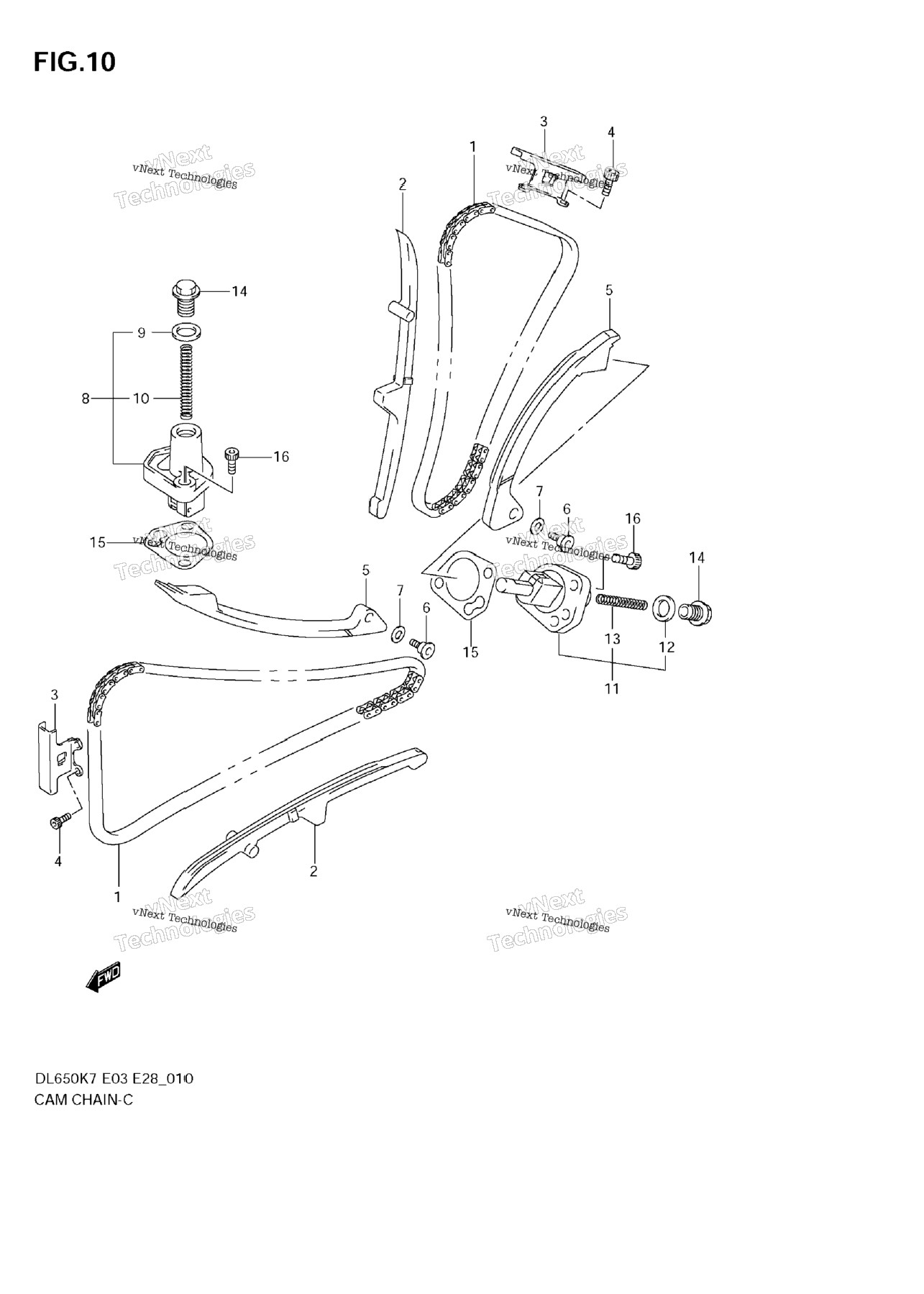

| 1 | 12760-19F01 | CHAIN,CAMSHAFT DRIVE | 2 шт. | — | |
|
| 2 | 12771-19F00 | GUIDE, CAM CHAIN NO.1 | 2 шт. | — | |
|
| 3 | 12782-19F00 | GUIDE, CAM CHAIN NO.2 | 2 шт. | — | |
|
| 4 | 07130-0612B | BOLT | 6 шт. | — | |
|
| 5 | 12811-17G00 | TENSIONER, CAM CHAIN | 2 шт. | — | |
|
| 6 | 12812-35C00 | BOLT, CAM CHAIN TENSIONER | 2 шт. | — | |
|
| 7 | 08211-06181 | WASHER | 2 шт. | — | |
|
| 8 | 12830-27G00 | ADJUSTER ASSY, TENSIONER FR Includes Item(s) 9 - 10 | 1 шт. | — | |
|
| 11 | 12830-27G10 | ADJUSTER ASSY,TENSIONER REAR Includes Item(s) 12 - 13 | 1 шт. | — | |
|
| 12 | 12837-24F10 | GASKET, TENSIONER ADJUSTER | 1 шт. | — | |
|
| 12 | 12837-24F10 | GASKET, TENSIONER ADJUSTER | 1 шт. | — | |
|
| 13 | 12831-39F00 | SPRING | 1 шт. | — | |
|
| 13 | 12831-39F00 | SPRING | 1 шт. | — | |
|
| 14 | 12833-17G00 | PLUG,TENSIONER ADJUSTER | 2 шт. | — | |
|
| 15 | 12837-27G00 | GASKET, TENSIONER ADJUSTER | 2 шт. | — | |
|
| 16 | 07130-0625B | BOLT | 4 шт. | — | |
|
