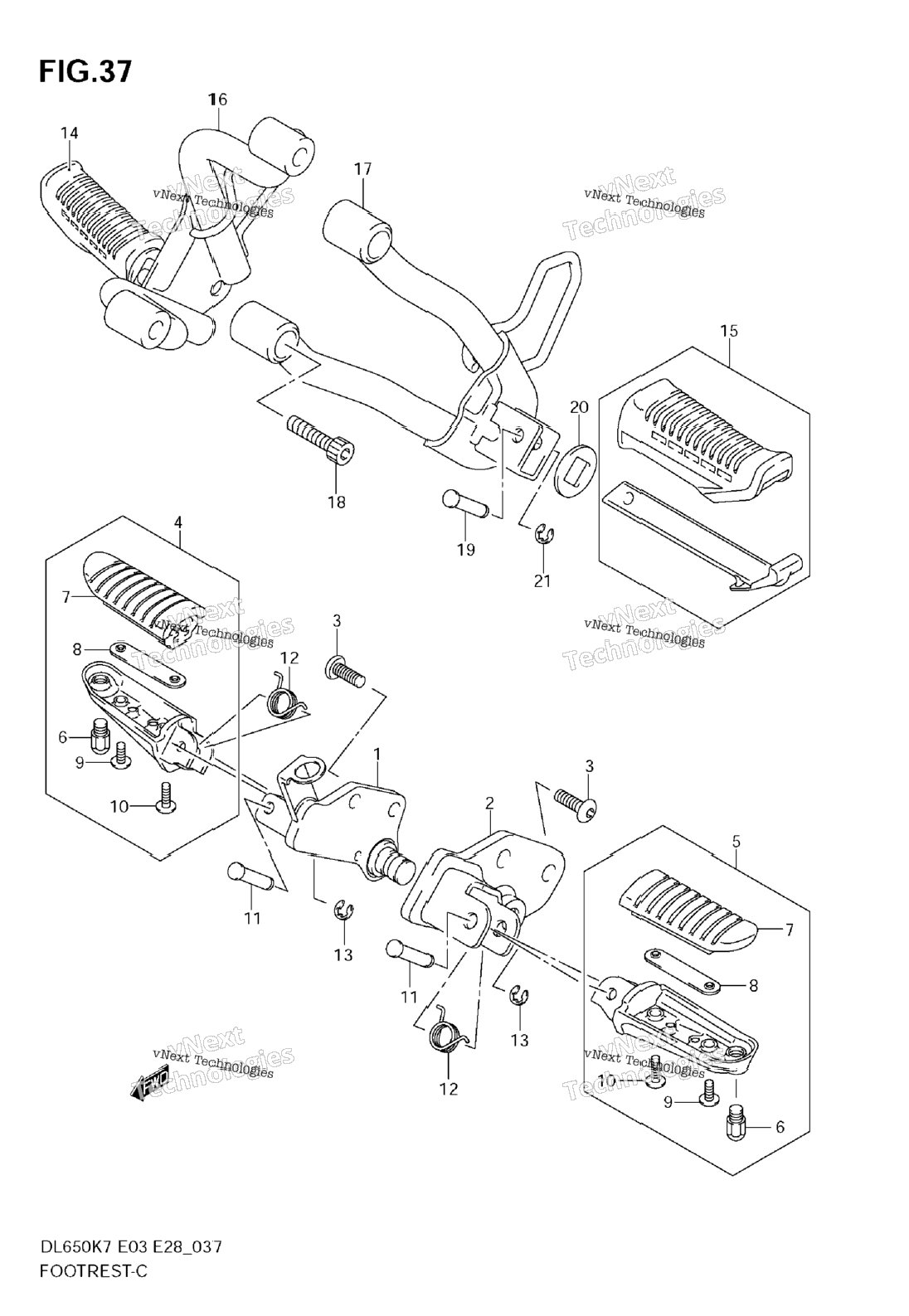

| 1 | 43510-27G01-YAP | BRACKET, FRONT RH (BLACK) | 1 шт. | — | |
|
| 2 | 43520-27G01-YAP | BRACKET, FRONT LH (BLACK) | 1 шт. | — | |
|
| 3 | 09106-08150 | BOLT | 4 шт. | — | |
|
| 4 | 43501-06G01 | FOOTREST ASSY RH | 1 шт. | — | |
|
| 5 | 43502-06G01 | FOOTREST ASSY, LH Includes Item(s) 6 - 10 | 1 шт. | — | |
|
| 6 | 43576-07D01 | BOLT, BANK SENSOR | 2 шт. | — | |
|
| 7 | 43551-06G00 | .RUBBER,FOOTREST | 2 шт. | — | |
|
| 8 | 43552-06G00 | .PLATE,FR FOOTREST RUBBER | 2 шт. | — | |
|
| 9 | 02142-0516B | SCREW, OUTER | 2 шт. | — | |
|
| 10 | 02142-0520B | SCREW | 2 шт. | — | |
|
| 11 | 09208-08010 | PIN | 2 шт. | — | |
|
| 12 | 09448-18022 | SPRING | 2 шт. | — | |
|
| 13 | 08332-1106A | E-RING MODEL K7 | 2 шт. | — | |
|
| 13 | 08332-1106B | E RING MODEL K8/K9 | 2 шт. | — | |
|
| 14 | 43600-12B00 | FOOTREST ASSY, PILLION RH | 1 шт. | — | |
|
| 15 | 43700-12B00 | FOOTREST ASSY, PILLION LH | 1 шт. | — | |
|
| 16 | 43810-27G10-019 | BRACKET, PILLION RH (BLACK) | 1 шт. | — | |
|
| 17 | 43820-27G01-019 | BRACKET, PILLION LH (BLACK) | 1 шт. | — | |
|
| 18 | 09106-08074 | BOLT, BRACKET | 4 шт. | — | |
|
| 19 | 09208-06005 | PIN MODEL K7 | 2 шт. | — | |
|
| 19 | 09208-06008 | PIN MODEL K8/K9 | 2 шт. | — | |
|
| 20 | 43631-34A01 | PLATE, FOOTREST LH | 2 шт. | — | |
|
| 21 | 08332-1104A | E-RING | 2 шт. | — | |
|
