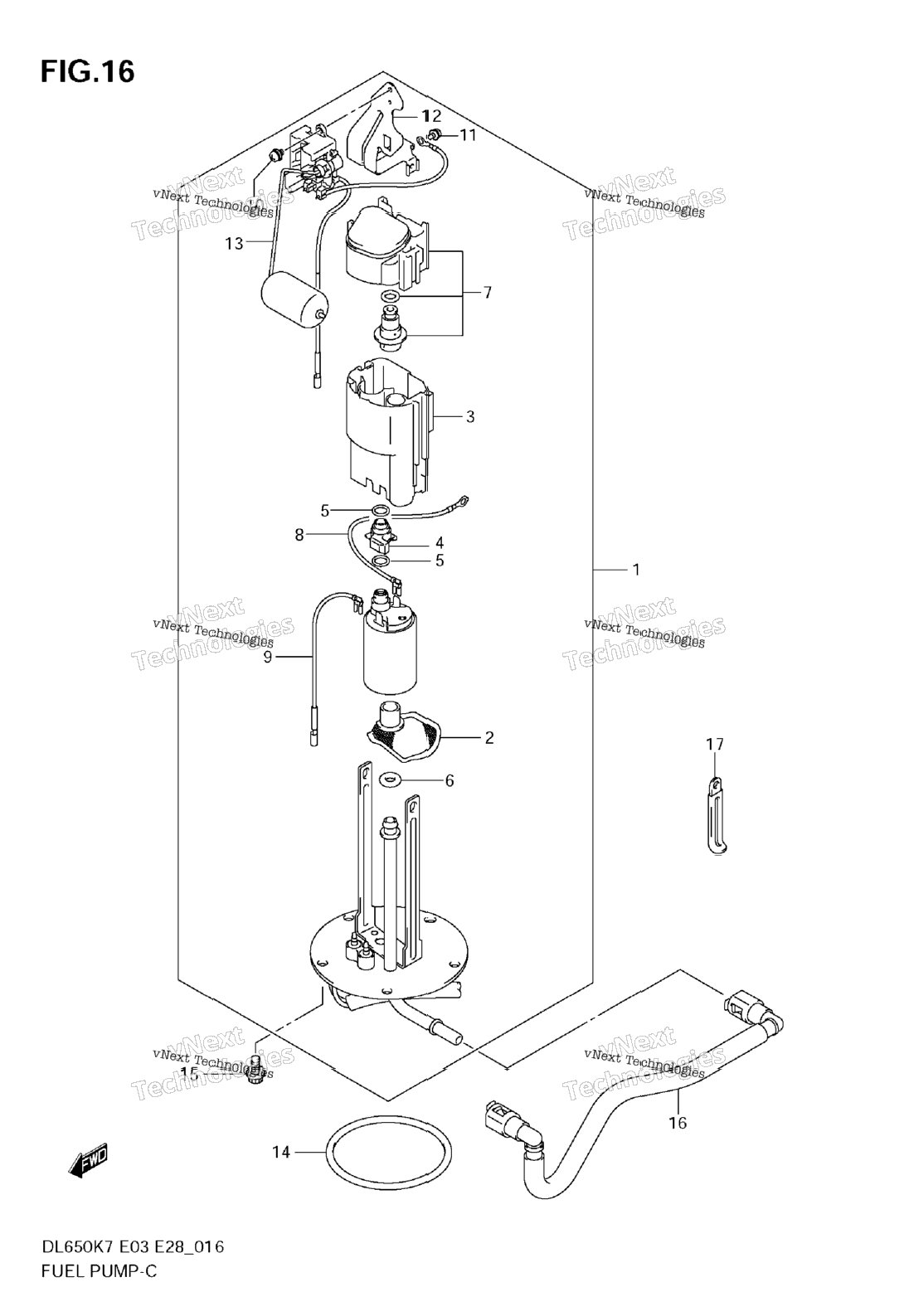

| 1 | 15100-27G00 | PUMP ASSY, FUEL Includes Item(s) 2 - 6 | 1 шт. | — | |
|
| 2 | 15420-05H00 | STRAINER | 1 шт. | — | |
|
| 3 | 15111-27G00 | .CUP,RESERVOIR | 1 шт. | — | |
|
| 4 | 15112-05H00 | JOINT | 1 шт. | — | |
|
| 5 | 15113-05H00 | .O-RING | 2 шт. | — | |
|
| 6 | 15113-35F00 | .O-RING | 1 шт. | — | |
|
| 7 | 15610-27G00 | REGULATOR | 1 шт. | — | |
|
| 8 | 15114-27G00 | WIRE, EARTH | 0 шт. | — | |
|
| 9 | 15115-27G00 | WIRE, LEAD Includes Item(s) 10 - 13 | 1 шт. | — | |
|
| 10 | 15116-06G10 | SCREW | 1 шт. | — | |
|
| 11 | 15116-10F00 | SCREW | 3 шт. | — | |
|
| 12 | 15181-27G00 | BRACKET, FUEL GAUGE | 0 шт. | — | |
|
| 13 | 34810-27G00 | GAUGE ASSY | 1 шт. | — | |
|
| 14 | 15201-35F00 | O RING,FUEL PUMP | 1 шт. | — | |
|
| 15 | 07120-0612A | BOLT | 5 шт. | — | |
|
| 16 | 15810-27G00 | HOSE, FUEL | 1 шт. | — | |
|
| 17 | 09404-06429 | CLAMP | 1 шт. | — | |
|
