Front Wheel (Rm-Z450 L1)

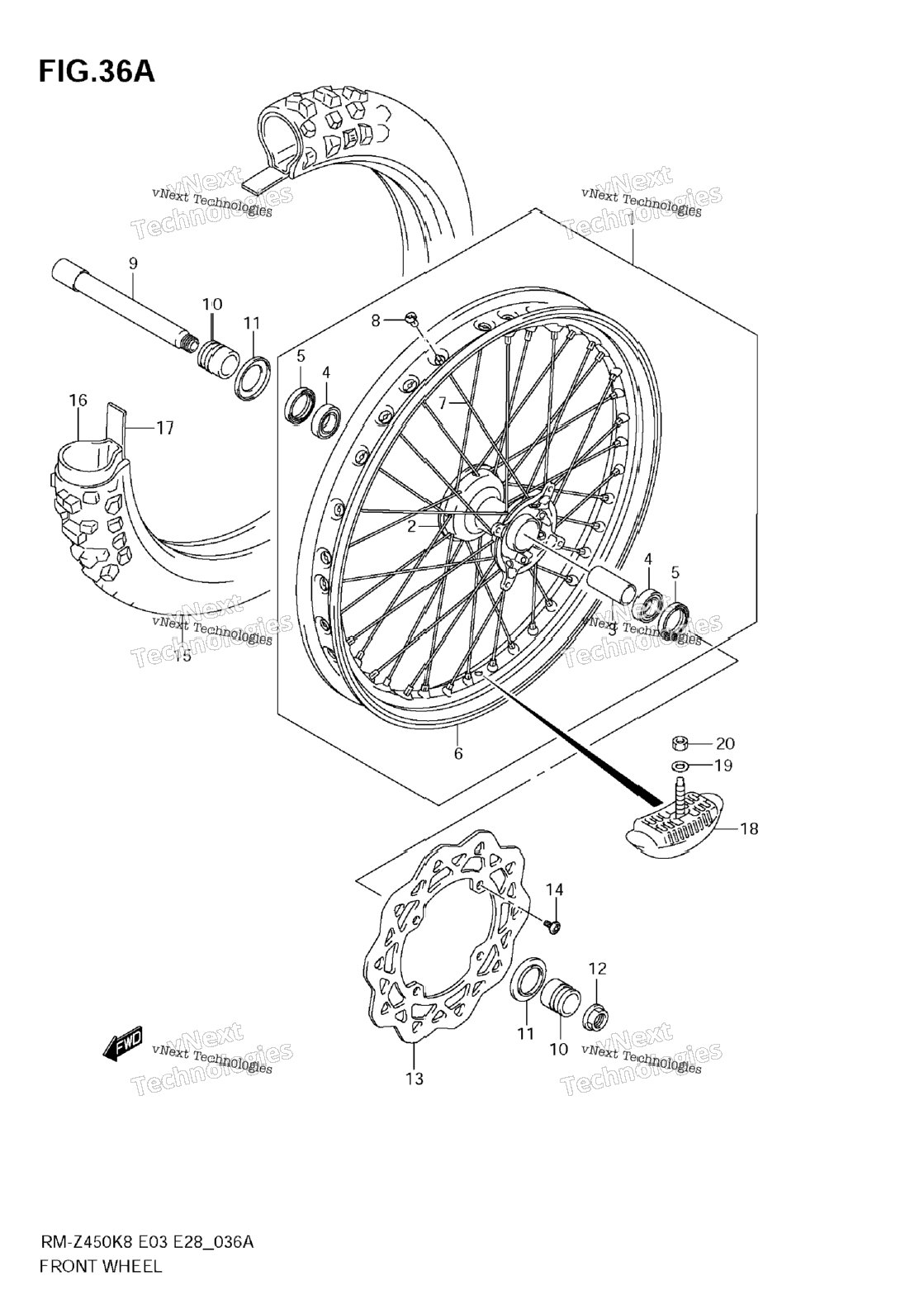

Схема Front Wheel (Rm-Z450 L1)
| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1 | 54100-10H00 | WHEEL ASSY, FRONT | 0 шт. | — | |
| 2 | 54111-35G01 | HUB, FRONT WHEEL | 1 шт. | — | |
| 3 | 54731-35G00 | SPACER,FRONT HUB BEARING (20. | 1 шт. | — | |
| 4 | 09262-22034 | BEARING (22X39X9) | 2 шт. | — | |
| 5 | 09283-30073 | SEAL (30X40X7) | 2 шт. | — | |
| 6 | 55311-10H00 | RIM, FRONT WHEEL (1.60X21) | 1 шт. | — | |
| 7 | 55321-35G10 | SPOKE, FRONT WHEEL | 36 шт. | — | |
| 8 | 55325-35G00 | NIPPLE, FRONT WHEEL | 36 шт. | — | |
| 9 | 54711-35G00 | AXLE, FRONT | 1 шт. | — | |
| 10 | 54741-35G00 | SPACER, AXLE (L:41) | 2 шт. | — | |
| 11 | 54742-35G00 | COVER, FRONT AXLE SPACER | 2 шт. | — | |
| 12 | 09159-18016 | NUT | 1 шт. | — | |
| 13 | 59221-28H10 | DISC, FRONT BRAKE | 1 шт. | — | |
| 14 | 09139-06142 | SCREW (6X13.5) | 4 шт. | — | |
| 15 | 55110-28H00 | TIRE, FRONT (80/100-21 51M) (BRIDGESTONE) MOTOCROSS-M403 | 1 шт. | — | |
| 16 | 55200-32E01 | TUBE ASSY WHEEL INNER | 1 шт. | — | |
| 17 | 55261-35G01 | PROTECTOR, INNER TUBE | 1 шт. | — | |
| 18 | 65270-14300 | STOPPER, BEAD | 1 шт. | — | |
| 19 | 08322-0108A | WASHER | 1 шт. | — | |
| 20 | 08310-0008A | NUT | 1 шт. | — | |
