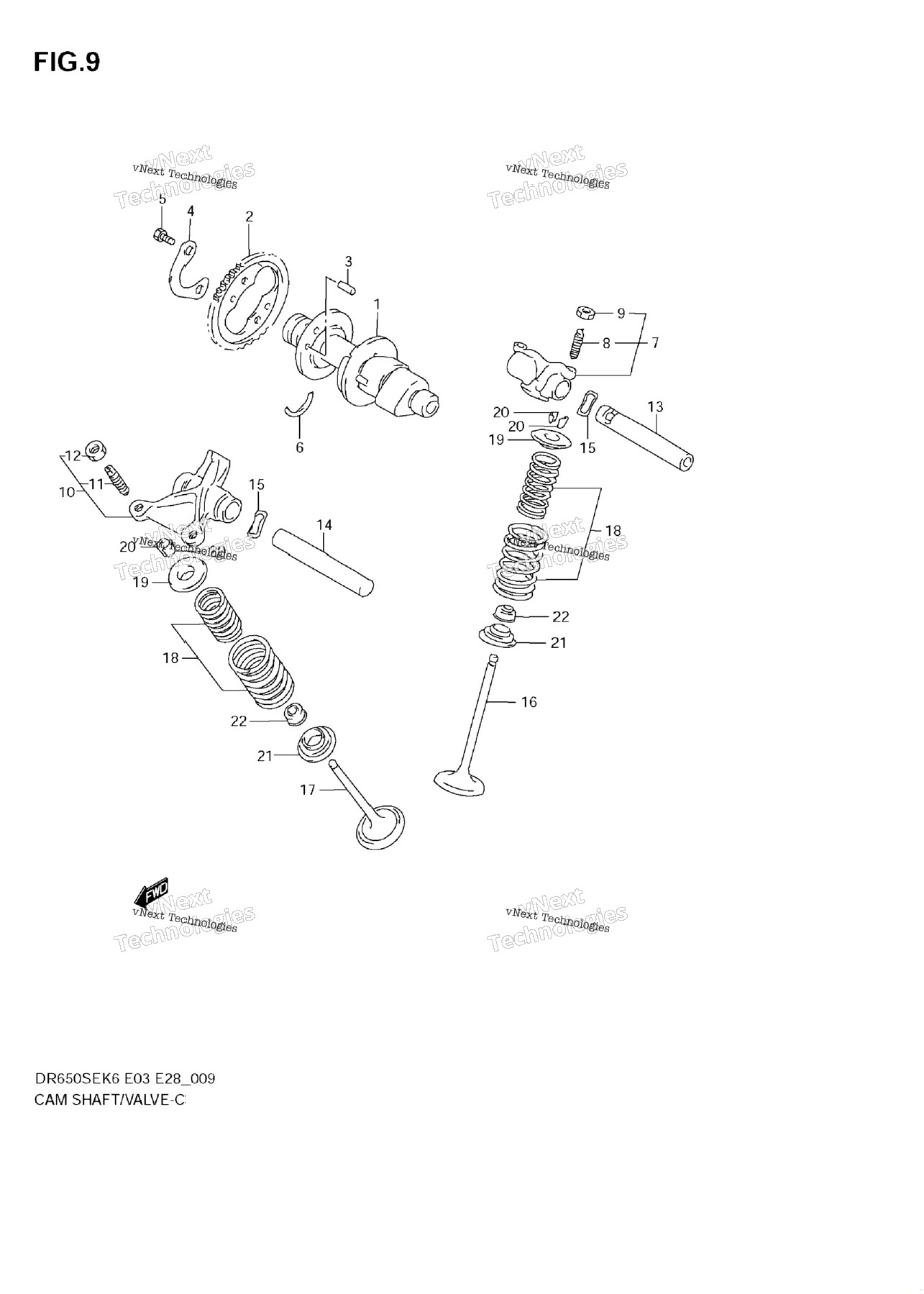

| 1 | 12710-32E01 | CAMSHAFT | 1 шт. | — | |
|
| 2 | 12741-32E00 | SPROCKET (NT:38) | 1 шт. | — | |
|
| 3 | 09261-05005 | PIN | 1 шт. | — | |
|
| 4 | 12747-44B00 | WASHER | 1 шт. | — | |
|
| 5 | 09100-06166 | BOLT (6X10.5) | 2 шт. | — | |
|
| 6 | 09390-22002 | C RING | 1 шт. | — | |
|
| 7 | 12840-32E00 | ARM,VALVE ROCKER,IN Includes Item(s) 8 - 9 | 1 шт. | — | |
|
| 10 | 12850-32E00 | ARM,VALVE ROCKER,EX Includes Item(s) 11 - 12 | 1 шт. | — | |
|
| 11 | 12842-38A00 | SCREW | 2 шт. | — | |
|
| 11 | 12842-38A00 | SCREW | 2 шт. | — | |
|
| 12 | 12843-32400 | .NUT, ADJUSTING SCREW | 2 шт. | — | |
|
| 12 | 12843-32400 | .NUT, ADJUSTING SCREW | 2 шт. | — | |
|
| 13 | 12861-14D50 | SHAFT, ROCKER ARM IN | 1 шт. | — | |
|
| 14 | 12871-14D50 | SHAFT, ROCKER ARM EX | 1 шт. | — | |
|
| 15 | 09164-12018 | WASHER | 2 шт. | — | |
|
| 16 | 12911-19B00 | VALVE, INTAKE | 2 шт. | — | |
|
| 17 | 12912-42A00 | VALVE, EXHAUST | 2 шт. | — | |
|
| 18 | 12920-32E00 | SPRING SET, VALVE | 4 шт. | — | |
|
| 19 | 12931-33201 | RETAINER | 4 шт. | — | |
|
| 20 | 12932-24400 | COTTER,VALVE | 8 шт. | — | |
|
| 21 | 12933-81400 | SEAT, VALVE | 4 шт. | — | |
|
| 22 | 09289-05015 | OIL SEAL (5.5X11X8.2) | 4 шт. | — | |
|
