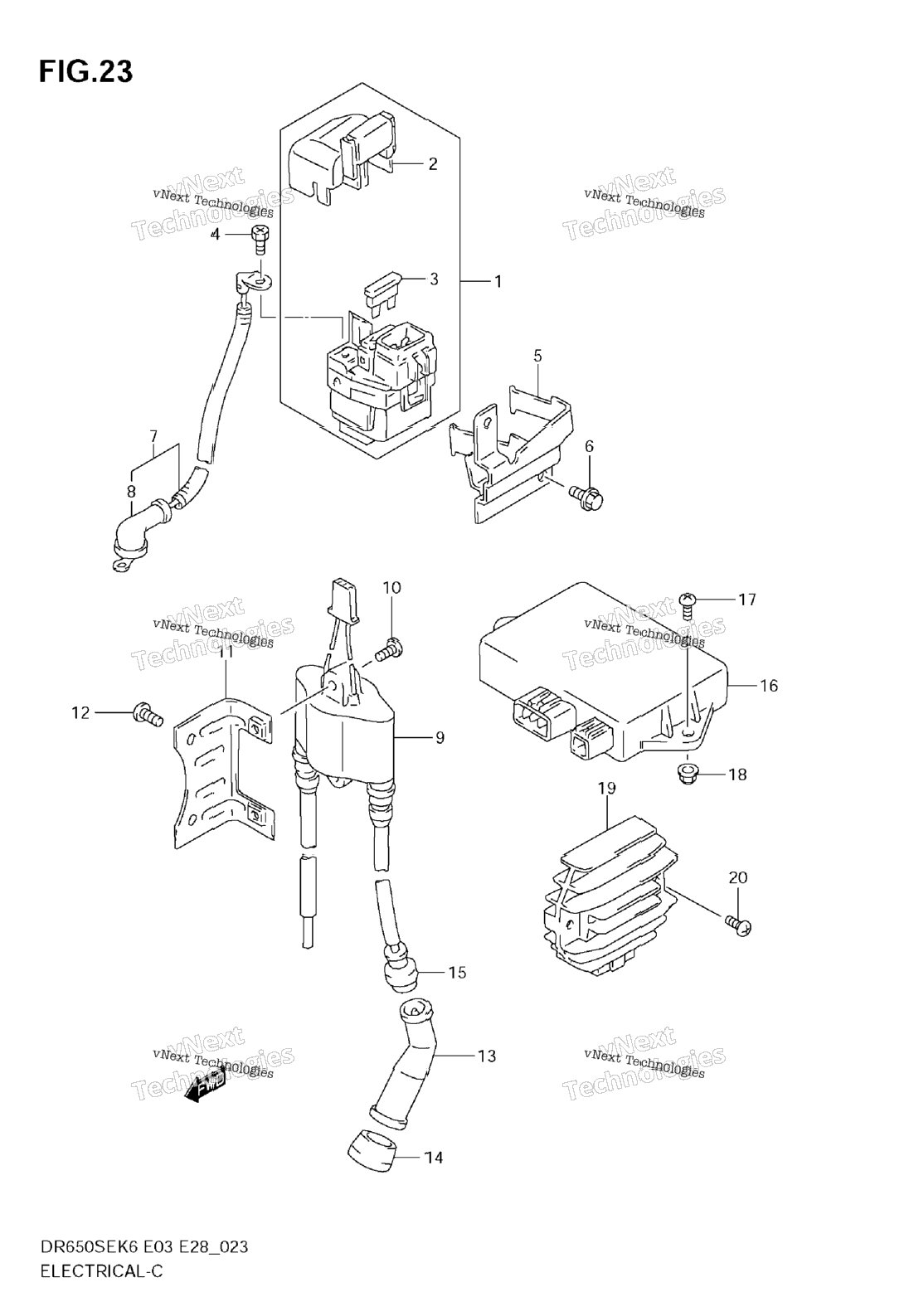

| 1 | 31800-26E00 | RELAY ASSY, STARTING MOTOR Includes Item(s) 2 - 3 | 1 шт. | — | |
|
| 2 | 31861-26E00 | COVER ASSY | 1 шт. | — | |
|
| 3 | 09481-30101 | FUSE (30A) | 2 шт. | — | |
|
| 4 | 09128-06013 | BOLT (6X8) | 2 шт. | — | |
|
| 5 | 31890-32E00 | BRACKET,STG MOT RLY | 0 шт. | — | |
|
| 6 | 09103-06078 | BOLT, STARTING MOTOR MODEL K6/K7 | 2 шт. | — | |
|
| 7 | 02162-0608B | BOLT, STARTING MOTOR MODEL K8/K9 | 2 шт. | — | |
|
| 8 | 33810-32E00 | WIRE,STARTER MOTOR Includes Item(s) 8 | 0 шт. | — | |
|
| 9 | 31861-48B10 | .CAP,STARTER MOTOR LEAD | 1 шт. | — | |
|
| 10 | 33410-32E00 | COIL ASSY,IGNITION | 1 шт. | — | |
|
| 11 | 02142-0625B | SCREW, IGNITION COIL | 2 шт. | — | |
|
| 12 | 33416-32E00 | BRACKET,IGNITION COIL | 1 шт. | — | |
|
| 13 | 02142-0610B | SCREW, BRACKET | 2 шт. | — | |
|
| 14 | 33510-43010 | CAP, SPARK PLUG OUTER | 2 шт. | — | |
|
| 15 | 33541-47D00 | SEAL,SPARK PLUG | 2 шт. | — | |
|
| 16 | 33542-38B00 | SEAL, HIGH TENSION CORD | 2 шт. | — | |
|
| 17 | 32900-32E10 | CDI UNIT | 1 шт. | — | |
|
| 18 | 02162-0620B | BOLT | 2 шт. | — | |
|
| 19 | 08319-3106B | NUT, CDI UNIT | 2 шт. | — | |
|
| 20 | 32800-32E00 | RECTIFIER ASSY | 1 шт. | — | |
|
| 21 | 02162-0620B | BOLT | 2 шт. | — | |
|
