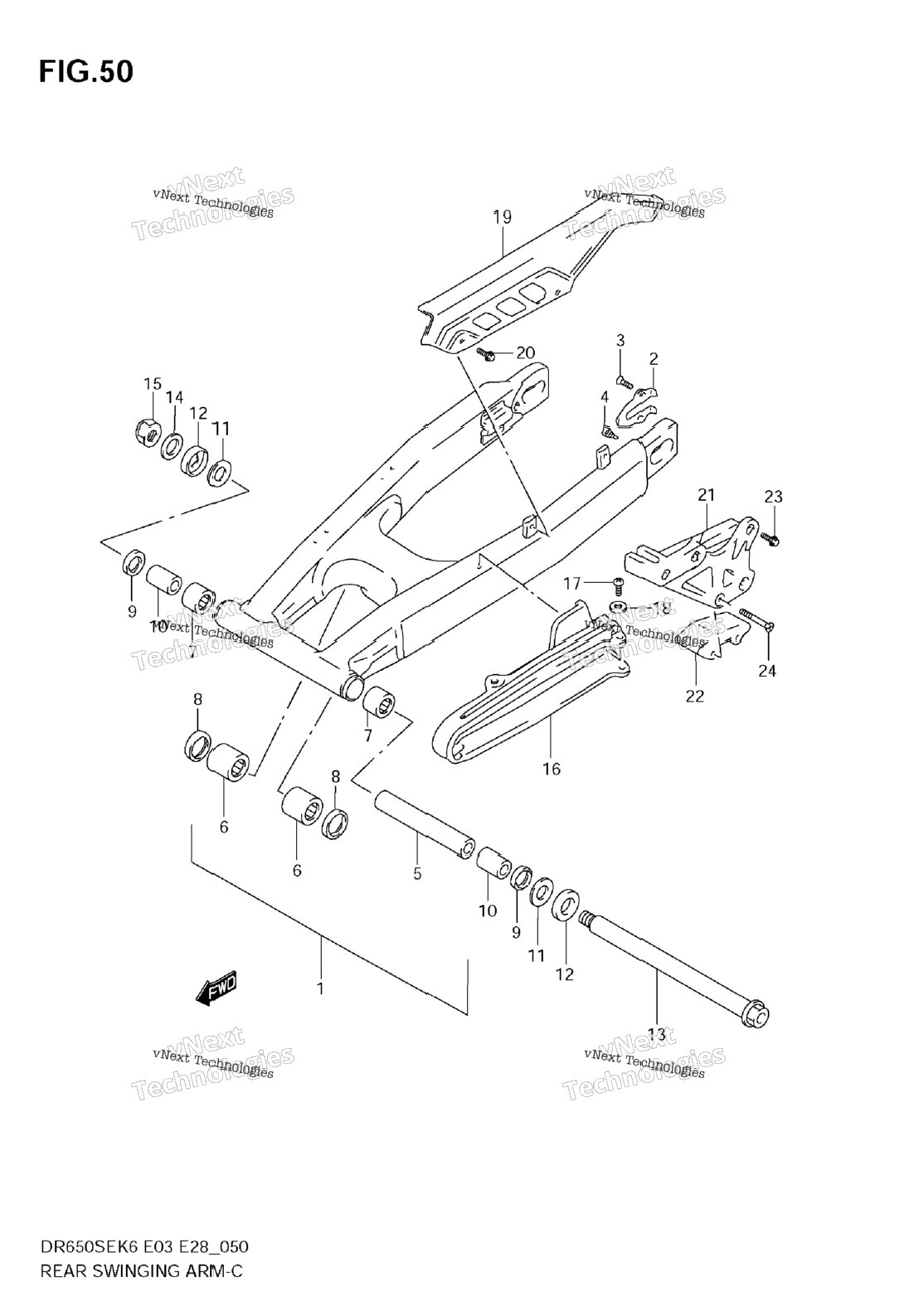

| 1 | 61000-32E00 | SWINGING ARM ASSY, REAR Includes Item(s) 2 - 7 | 1 шт. | — | |
|
| 2 | 61128-29E00 | .PLATE RR SWING ARM AXLE | 1 шт. | — | |
|
| 3 | 09126-05009 | SCREW (5X8) | 2 шт. | — | |
|
| 4 | 61431-13E00 | BOLT, STOPPER (10X17) | 2 шт. | — | |
|
| 5 | 61282-32E00 | SPACER, PIVOT | 0 шт. | — | |
|
| 6 | 09263-20071 | BEARING, ROD (20X27X23.5) | 2 шт. | — | |
|
| 7 | 09263-22017 | BEARING, PIVOT (22X29X30) | 2 шт. | — | |
|
| 8 | 09283-20031 | SEAL, ROD OIL (20X27X5) | 2 шт. | — | |
|
| 9 | 09285-22001 | SEAL, PIVOT OIL (22X29X4) | 2 шт. | — | |
|
| 10 | 61251-14D00 | SPACER, PIVOT BEARING | 2 шт. | — | |
|
| 11 | 08211-17341 | WASHER | 2 шт. | — | |
|
| 12 | 61262-28C10 | COVER, PIVOT DUST | 2 шт. | — | |
|
| 13 | 64711-08D00 | AXLE,REAR | 0 шт. | — | |
|
| 14 | 08322-0116B | WASHER | 1 шт. | — | |
|
| 15 | 09159-16007 | NUT | 1 шт. | — | |
|
| 16 | 61273-13E01 | BUFFER,CHAIN TOUCH DEFENSE | 1 шт. | — | |
|
| 17 | 02142-0612B | SCREW | 3 шт. | — | |
|
| 18 | 09169-06057 | WASHER | 3 шт. | — | |
|
| 19 | 61311-01A03 | CASE, CHAIN | 1 шт. | — | |
|
| 20 | 09116-06096 | BOLT (6X10) | 2 шт. | — | |
|
| 21 | 61340-15E00 | GUIDE, CHAIN | 1 шт. | — | |
|
| 22 | 61348-15E00 | DEFENSE, CHAIN GUIDE | 1 шт. | — | |
|
| 23 | 01550-0616B | .BOLT | 3 шт. | — | |
|
| 24 | 02122-0650B | SCREW, LOWER | 2 шт. | — | |
|
