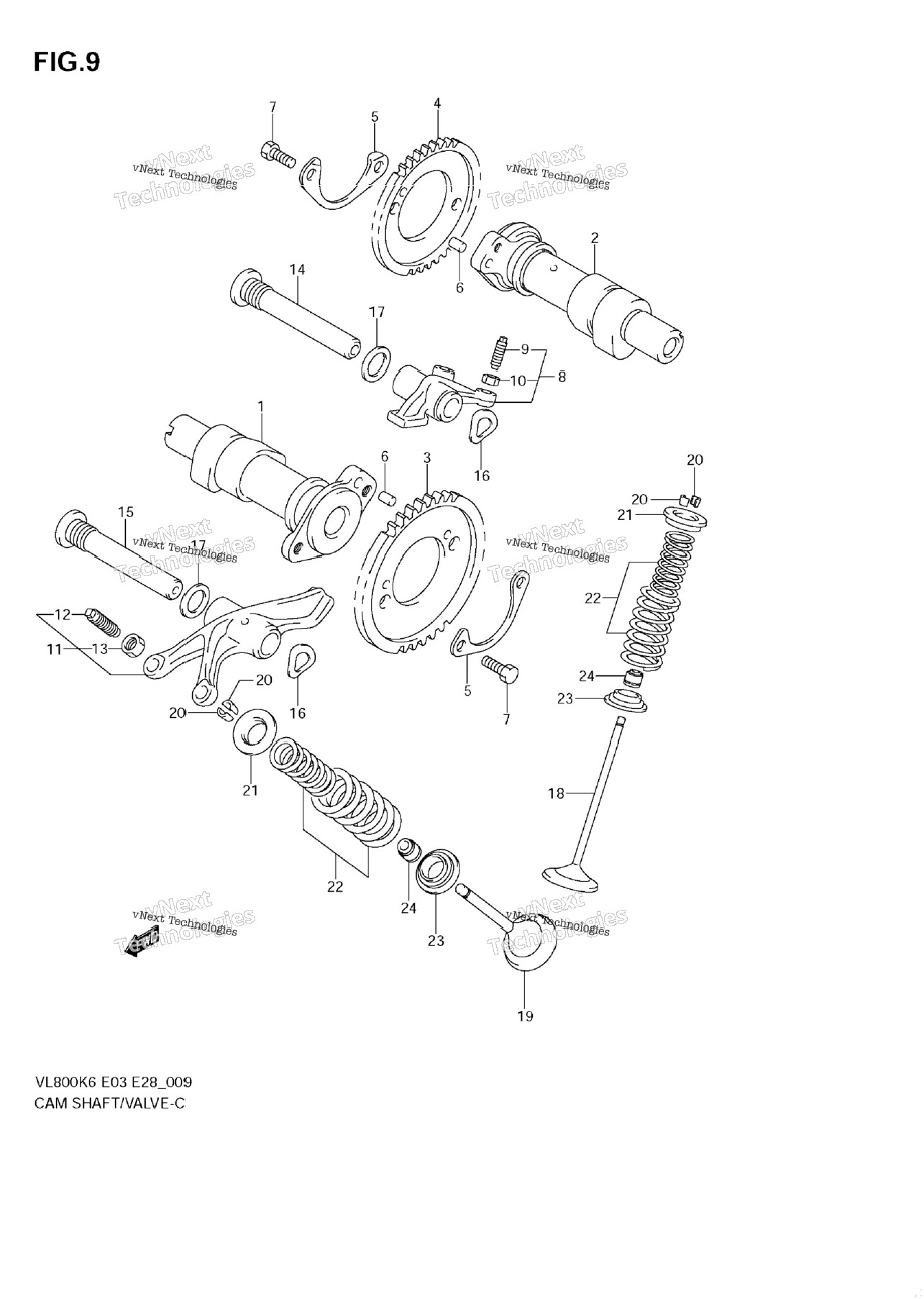

| 1 | 12711-41F00 | CAMSHAFT, FRONT | 1 шт. | — | |
|
| 2 | 12713-41F00 | CAMSHAFT, REAR | 1 шт. | — | |
|
| 3 | 12741-41F00 | SPROCKET, CAMSHAFT FRONT | 1 шт. | — | |
|
| 4 | 12741-37400 | SPROCKET, CAMSHAFT REAR (NT:4 | 0 шт. | — | |
|
| 5 | 12747-44001 | WASHER | 2 шт. | — | |
|
| 6 | 04221-05109 | PIN | 2 шт. | — | |
|
| 7 | 09111-06027 | BOLT (6X12.5) | 4 шт. | — | |
|
| 8 | 12840-38A10 | ARM, VALVE ROCKER INTAKE Includes Item(s) 9 - 10 | 2 шт. | — | |
|
| 11 | 12850-38A10 | ARM, VALVE ROCKER EXHAUST Includes Item(s) 12 - 13 | 2 шт. | — | |
|
| 12 | 12842-38A00 | SCREW | 4 шт. | — | |
|
| 12 | 12842-38A00 | SCREW | 4 шт. | — | |
|
| 13 | 12843-32400 | .NUT, ADJUSTING SCREW | 4 шт. | — | |
|
| 13 | 12843-32400 | .NUT, ADJUSTING SCREW | 4 шт. | — | |
|
| 14 | 12861-39G00 | SHAFT, VALVE ROCKER ARM INTAKE VL800CK6 MODEL K7/K8/K9 | 2 шт. | — | |
|
| 14 | 12861-38A01 | SHAFT, VALVE ROCKER ARM INTAKE VL800K6 | 0 шт. | — | |
|
| 15 | 12871-39G00 | SHAFT, VALVE ROCKER ARM EXHAUST VL800CK6 MODEL K7/K8/K9 | 0 шт. | — | |
|
| 15 | 12871-38A01 | SHAFT, VALVE ROCKER ARM EXHAUST VL800K6 | 0 шт. | — | |
|
| 16 | 09164-12018 | WASHER | 4 шт. | — | |
|
| 17 | 09168-14002 | .GASKET (13.8X18.8X4.8) | 4 шт. | — | |
|
| 18 | 12911-38A03 | VALVE, INTAKE | 4 шт. | — | |
|
| 19 | 12912-38A03 | VALVE, EXHAUST | 4 шт. | — | |
|
| 20 | 12932-24400 | COTTER,VALVE | 16 шт. | — | |
|
| 21 | 12931-33201 | RETAINER, SPRING | 8 шт. | — | |
|
| 22 | 12920-38A00 | SPRING SET, VALVE | 8 шт. | — | |
|
| 23 | 12933-33201 | SEAT, SPRING | 8 шт. | — | |
|
| 24 | 09289-05015 | OIL SEAL (5.5X11X8.2) | 8 шт. | — | |
|
