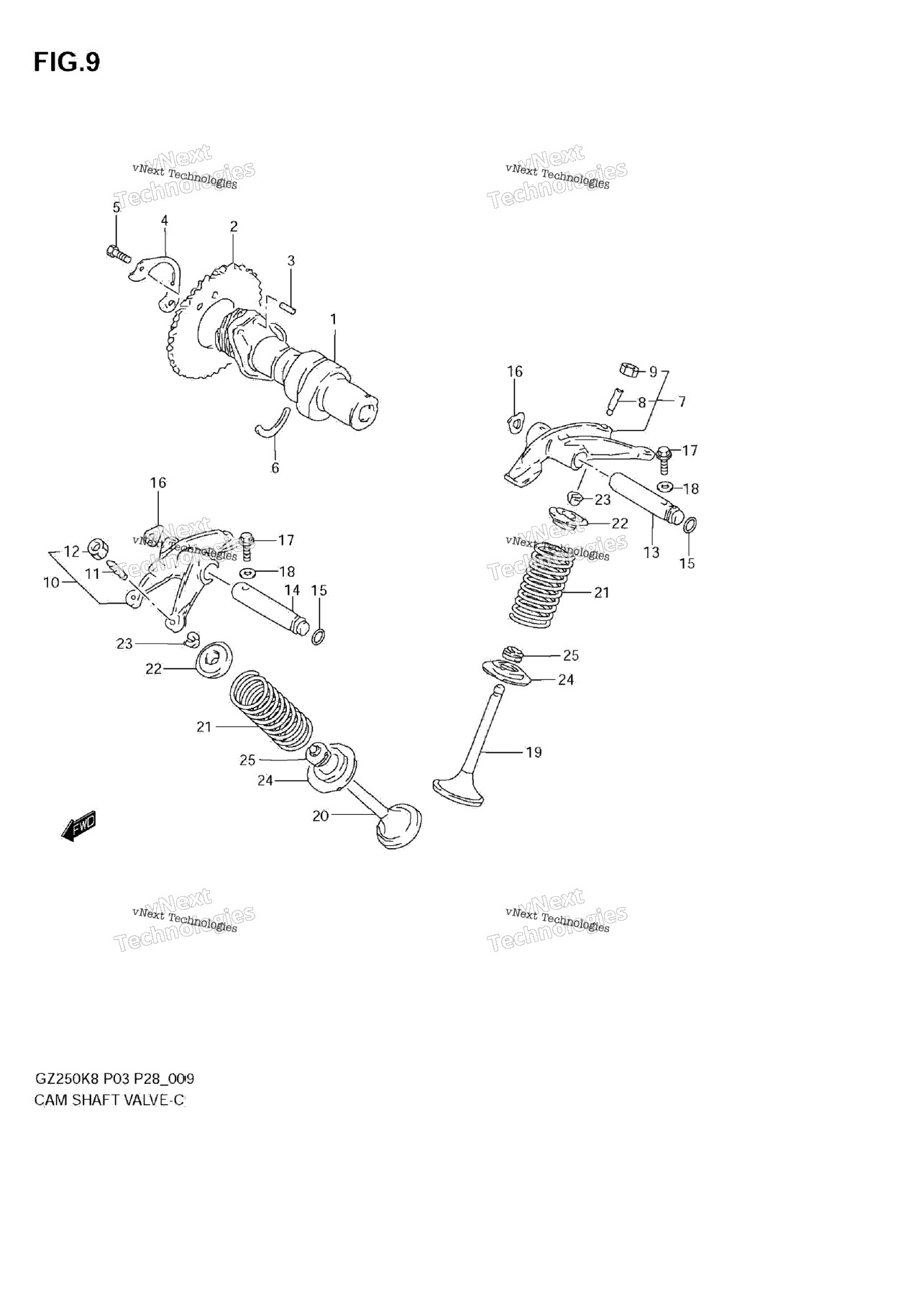

| 1 | 12711-13F00 | CAM SHAFT | 1 шт. | — | |
|
| 2 | 12741-37400 | SPROCKET, CAMSHAFT REAR (NT:4 | 0 шт. | — | |
|
| 3 | 04221-05109 | PIN | 1 шт. | — | |
|
| 4 | 12747-44001 | WASHER, SPROCKET | 1 шт. | — | |
|
| 5 | 09111-06027 | BOLT (6X12.5) | 2 шт. | — | |
|
| 6 | 09390-25003 | C RING | 1 шт. | — | |
|
| 7 | 12840-13F00 | ARM, VALVE ROCKER IN | 1 шт. | — | |
|
| 10 | 12850-13F00 | ARM, VALVE ROCKER EX | 1 шт. | — | |
|
| 11 | 12842-49201 | SCREW, TAPPET ADJUSTING | 2 шт. | — | |
|
| 11 | 12842-49201 | SCREW, TAPPET ADJUSTING | 2 шт. | — | |
|
| 12 | 12843-27A00 | NUT, TAPPET ADJUSTING | 2 шт. | — | |
|
| 12 | 12843-27A00 | NUT, TAPPET ADJUSTING | 2 шт. | — | |
|
| 13 | 12861-38200 | SHAFT, VALVE ROCKER ARM INTAKE | 0 шт. | — | |
|
| 14 | 12871-38200 | SHAFT, VALVE ROCKER ARM | 1 шт. | — | |
|
| 15 | 09280-09005 | .O RING (D:1.9,ID:8.6) | 2 шт. | — | |
|
| 16 | 09164-12018 | WASHER | 2 шт. | — | |
|
| 17 | 02162-0630B | BOLT | 0 шт. | — | |
|
| 18 | 09168-06023 | GASKET | 2 шт. | — | |
|
| 19 | 12911-38200 | VALVE, INTAKE | 2 шт. | — | |
|
| 20 | 12912-38201 | VALVE, EXHAUST | 2 шт. | — | |
|
| 21 | 12921-38211 | SPRING, VALVE | 4 шт. | — | |
|
| 22 | 12931-49201 | RETAINER, VALVE SPRING | 4 шт. | — | |
|
| 23 | 12932-49200 | COTTER, VALVE | 8 шт. | — | |
|
| 24 | 12933-38200 | SEAT, VALVE SPRING | 4 шт. | — | |
|
| 25 | 09289-05015 | OIL SEAL | 4 шт. | — | |
|
