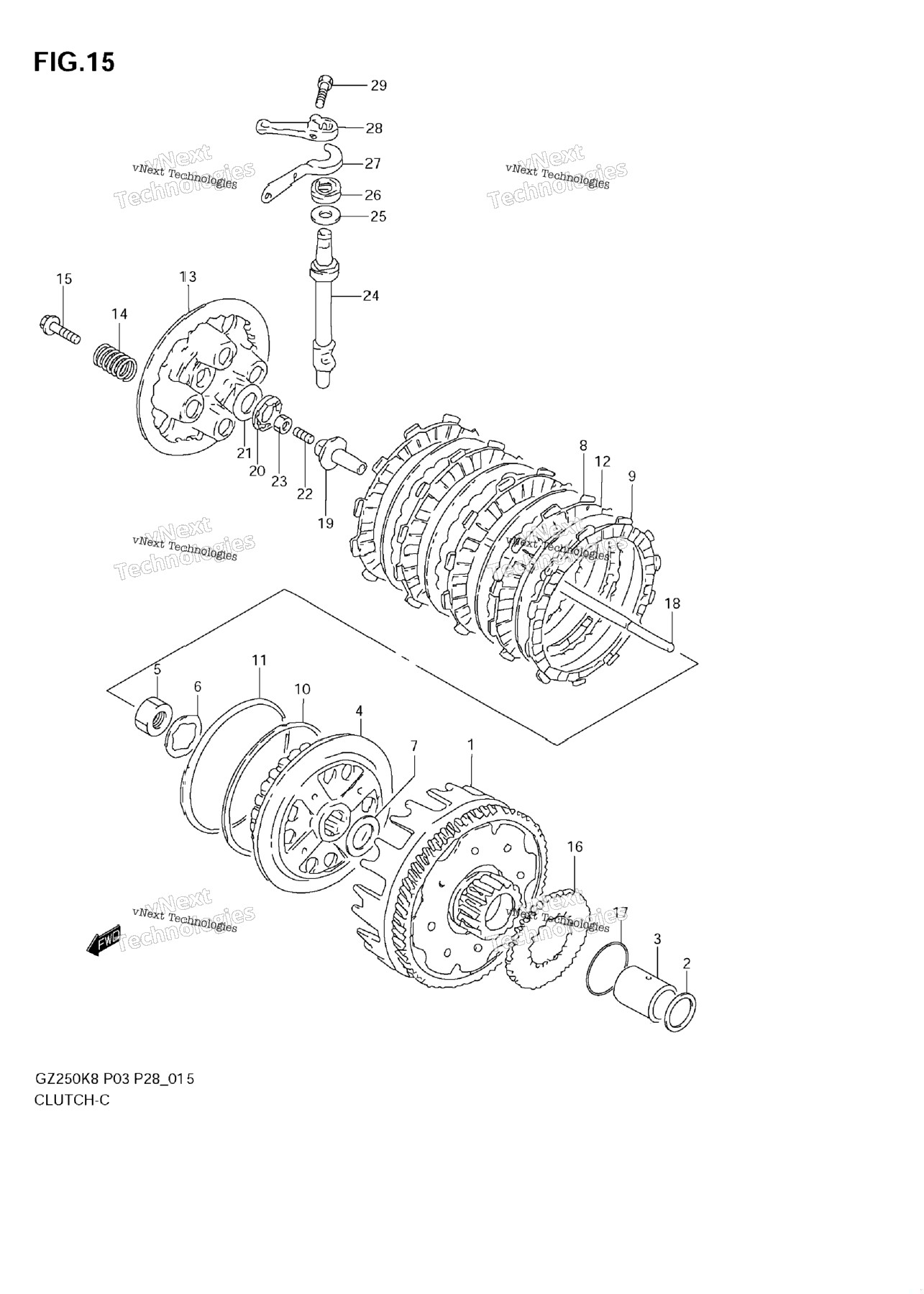

| 1 | 21200-38201 | GEAR ASSY, PRIMARY DRIVEN NT:68/16 | 1 шт. | — | |
|
| 3 | 09180-22024 | SPACER (22X28X37.5) | 0 шт. | — | |
|
| 4 | 21411-38201 | HUB, CLUTCH SLEEVE | 1 шт. | — | |
|
| 5 | 09140-22005 | NUT | 1 шт. | — | |
|
| 6 | 09167-22010 | LOCK WASHER | 1 шт. | — | |
|
| 7 | 08211-22363 | THRUST WASHER | 1 шт. | — | |
|
| 7 | 08211-22363 | THRUST WASHER | 1 шт. | — | |
|
| 8 | 21441-37430 | PLATE, CLUTCH DRIVE | 4 шт. | — | |
|
| 9 | 21442-37401 | PLATE, CLUTCH DRIVE (T:3.5) | 1 шт. | — | |
|
| 10 | 21471-37400 | SEAT, WAVE WASHER (T:1.4) | 1 шт. | — | |
|
| 11 | 09164-00004 | WASHER (110.5X119X0.90) | 1 шт. | — | |
|
| 12 | 21451-14A00 | PLATE, CLUTCH DRIVEN (T:1.6) | 4 шт. | — | |
|
| 13 | 21462-27A00 | DISC, CLUTCH PRESSURE | 1 шт. | — | |
|
| 14 | 21413-13F00 | SPRING, CLUTCH | 4 шт. | — | |
|
| 15 | 09116-06167 | BOLT (6X16) | 4 шт. | — | |
|
| 16 | 16321-38210 | GEAR, ENGINE OIL PUMP DRIVE NT:38 | 1 шт. | — | |
|
| 17 | 09380-50001 | CIRCLIP | 0 шт. | — | |
|
| 18 | 23110-38201 | ROD, CLUTCH PUSH | 1 шт. | — | |
|
| 19 | 23121-38201 | PIECE, CLUTCH PUSH | 1 шт. | — | |
|
| 20 | 09263-15003 | BEARING (15X28X2) | 1 шт. | — | |
|
| 21 | 09160-15045 | WASHER (15.5X28X1) | 1 шт. | — | |
|
| 22 | 09134-06010 | SCREW | 1 шт. | — | |
|
| 23 | 09140-06023 | NUT | 1 шт. | — | |
|
| 24 | 23122-38200 | CAM SHAFT, CLUTCH RELEASE | 0 шт. | — | |
|
| 25 | 09160-14054 | WASHER (14.5X22X1.0) | 1 шт. | — | |
|
| 26 | 09285-12002 | OIL SEAL (12X22X9) | 1 шт. | — | |
|
| 27 | 23117-38200 | PLATE, OIL SEAL | 1 шт. | — | |
|
| 28 | 23271-49100 | ARM, CLUTCH RELEASE | 1 шт. | — | |
|
| 29 | 01500-06207 | BOLT | 1 шт. | — | |
|
