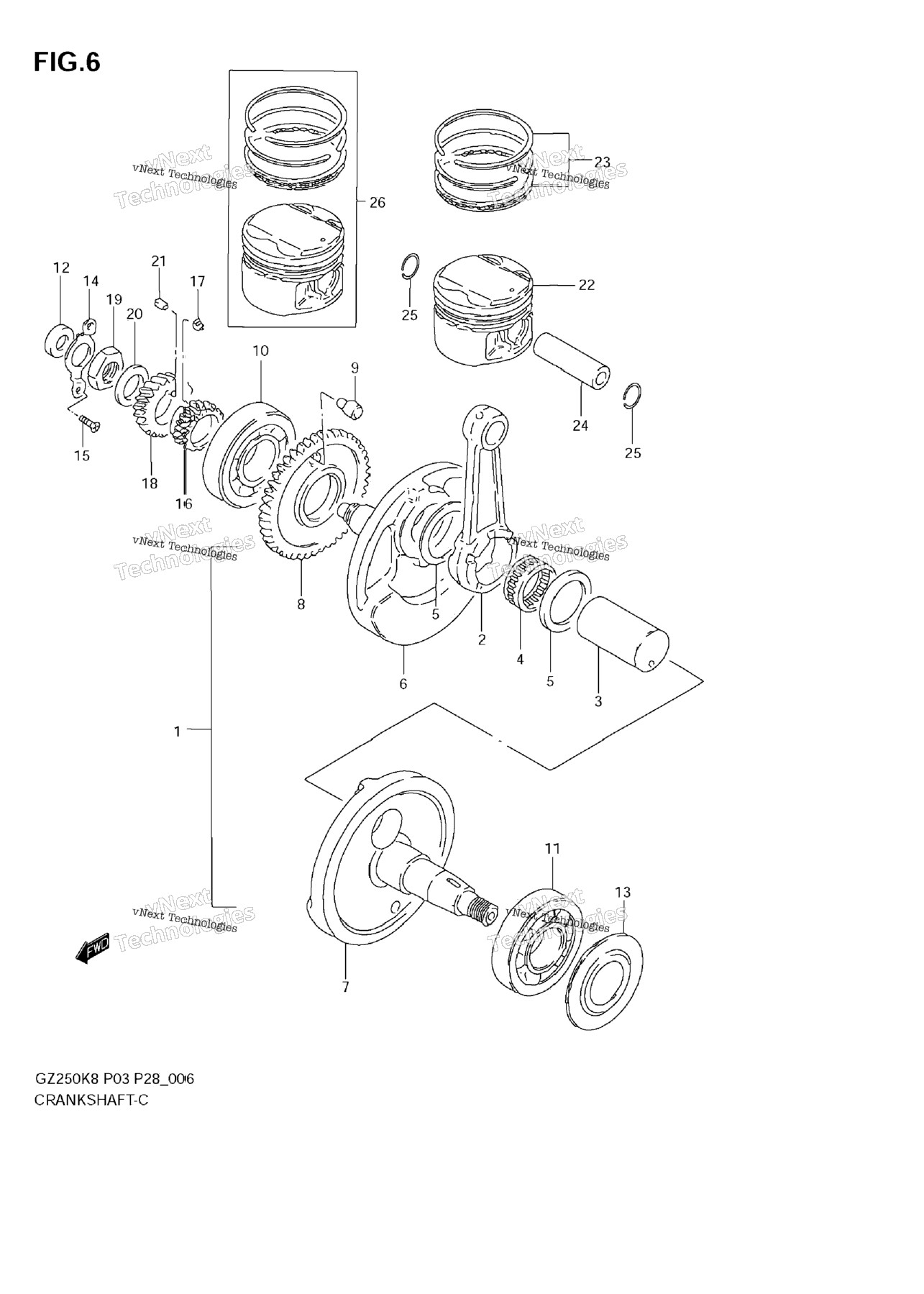

| 1 | 12200-26G01 | CRANKSHAFT ASSY | 0 шт. | — | |
|
| 2 | 12161-38201 | ROD, CONNECTING | 1 шт. | — | |
|
| 3 | 12211-38211 | PIN, CRANK | 1 шт. | — | |
|
| 4 | 09263-31012-0B0 | BEARING (31X39X21) | 0 шт. | — | |
|
| 5 | 09160-31002 | WASHER (31X48.5X1) | 2 шт. | — | |
|
| 6 | 12221-38200 | CRANKSHAFT, RH | 0 шт. | — | |
|
| 7 | 12261-26G00 | CRANKSHAFT, LH | 0 шт. | — | |
|
| 8 | 12661-38202 | GEAR, CRANK BALANCER DRIVE | 1 шт. | — | |
|
| 9 | 09209-12006 | PIN | 0 шт. | — | |
|
| 10 | 09262-30070 | BEARING (30X72X19) | 1 шт. | — | |
|
| 11 | 09262-35028 | BEARING (35X80X21) | 1 шт. | — | |
|
| 12 | 09282-14001 | OIL SEAL (14X26X6) | 1 шт. | — | |
|
| 13 | 12521-38300 | WASHER, CRANKSHAFT OIL SEALING | 1 шт. | — | |
|
| 14 | 12548-38200 | RETAINER, CRANKSHAFT OIL SEAL | 1 шт. | — | |
|
| 15 | 02122-0510B | SCREW | 0 шт. | — | |
|
| 16 | 12731-38200 | SPROCKET, CAM CHAIN DRIVE | 0 шт. | — | |
|
| 17 | 12749-32400 | KEY, SPROCKET | 1 шт. | — | |
|
| 18 | 21111-38200 | GEAR, PRIMARY DRIVE (NT:21) | 1 шт. | — | |
|
| 19 | 09140-20008 | NUT | 1 шт. | — | |
|
| 20 | 09164-20003 | WASHER | 1 шт. | — | |
|
| 21 | 09421-07002 | KEY | 1 шт. | — | |
|
| 22 | 12111-38201-0F0 | PISTON | 1 шт. | — | |
|
| 23 | 12140-49280 | RING SET, PISTON | 1 шт. | — | |
|
| 24 | 12151-15501 | PIN, PISTON | 1 шт. | — | |
|
| 25 | 09381-18002 | SNAP RING | 2 шт. | — | |
|
| 26 | 12100-38210-050 | PISTON SET (OS:0.5) OPT | 1 шт. | — | |
|
