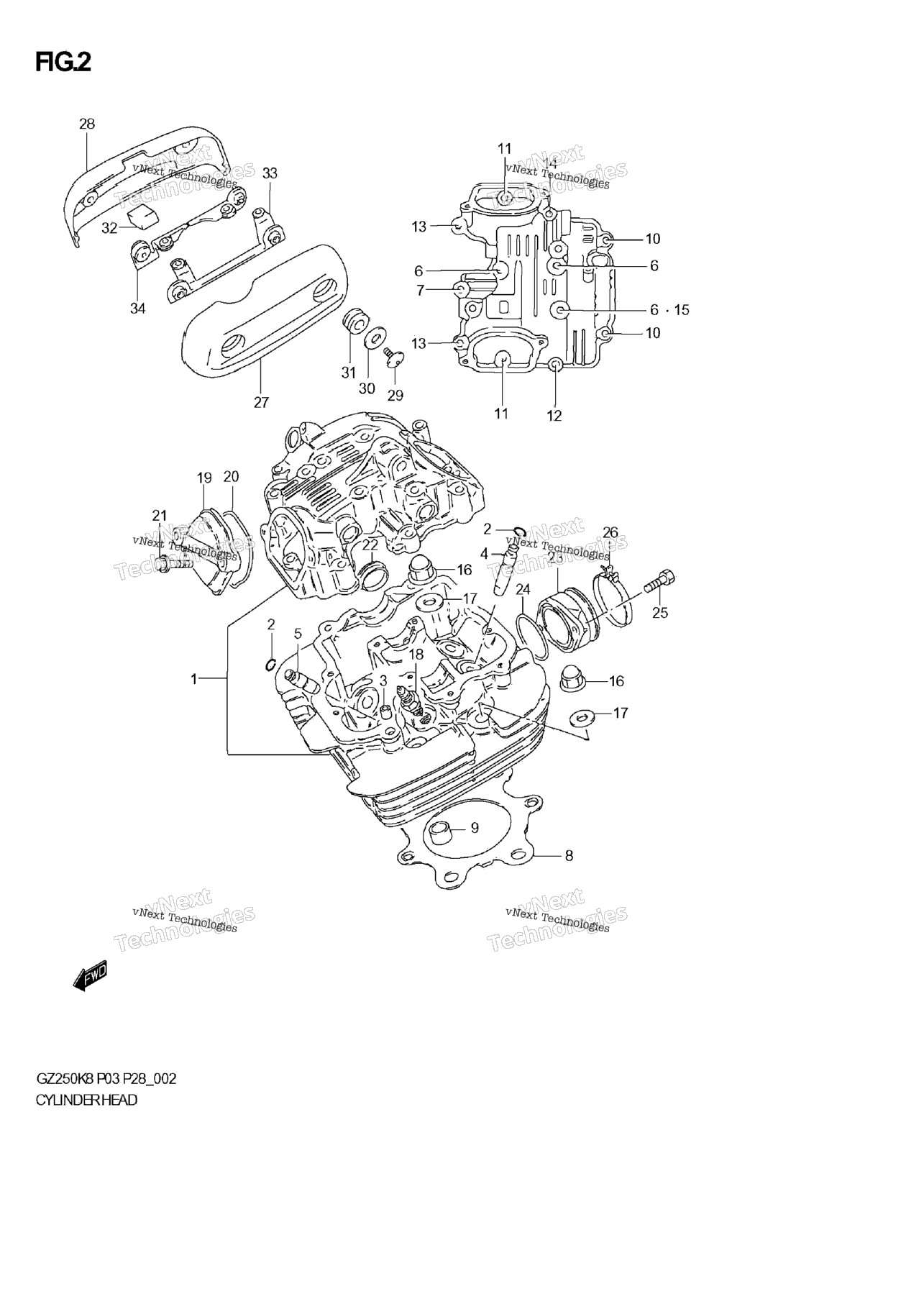

| 1 | 11100-25D02 | HEAD ASSY, CYLINDER | 1 шт. | — | |
|
| 2 | 09381-10004 | .RING,SNAP (10X85) | 4 шт. | — | |
|
| 3 | 09206-08001 | PIN (6.2X8X11) | 2 шт. | — | |
|
| 4 | 11115-38270 | GUIDE, VALVE (OS: 0.3) OPT | 2 шт. | — | |
|
| 5 | 11115-05270 | GUIDE, VALVE (0S:0.3) OPT | 2 шт. | — | |
|
| 8 | 11141-25D11 | GASKET, CYLINDER HEAD | 1 шт. | — | |
|
| 9 | 04211-13189 | PIN | 2 шт. | — | |
|
| 10 | 09103-06148 | BOLT (6X120) | 2 шт. | — | |
|
| 11 | 01550-0630B | BOLT (L:30) | 1 шт. | — | |
|
| 11 | 01550-0630B | BOLT (L:30) | 2 шт. | — | |
|
| 12 | 01550-0645B | BOLT (GREEN) | 0 шт. | — | |
|
| 13 | 01550-0650B | BOLT (GREEN) | 0 шт. | — | |
|
| 14 | 01550-0660B | BOLT (GREEN) | 3 шт. | — | |
|
| 14 | 01550-0660B | BOLT (GREEN) | 1 шт. | — | |
|
| 15 | 09168-06023 | GASKET (5.8X13X1.2) | 1 шт. | — | |
|
| 16 | 09159-10026 | NUT | 4 шт. | — | |
|
| 17 | 09168-10017 | GASKET (10.5X22X2) | 4 шт. | — | |
|
| 18 | 09482-00399 | SPARK PLUG (DR8EA) | 1 шт. | — | |
|
| 18 | 09482-00223 | SPARK PLUG (X24ESR-U) | 1 шт. | — | |
|
| 19 | 11175-38202 | CAP, INSPECTION | 2 шт. | — | |
|
| 20 | 09280-55003 | O RING | 2 шт. | — | |
|
| 21 | 01550-0625B | BOLT (GREEN) | 4 шт. | — | |
|
| 22 | 09241-30004 | PLUG | 1 шт. | — | |
|
| 23 | 13110-13F00 | PIPE, INTAKE | 1 шт. | — | |
|
| 24 | 09280-40010 | O RING (D:2.4, ID:39.7) | 1 шт. | — | |
|
| 25 | 02122-0616B | SCREW | 2 шт. | — | |
|
| 26 | 09402-48208 | CLAMP | 1 шт. | — | |
|
| 27 | 11171-13F00 | CAP, CYLINDER HEAD COVER LH | 1 шт. | — | |
|
| 28 | 11172-13F00 | CAP, CYLINDER HEAD COVER RH | 1 шт. | — | |
|
| 29 | 11178-12F10 | BOLT, HEAD COVER CAP | 4 шт. | — | |
|
| 30 | 09160-06134 | WASHER, HEAD COVER (6.5X24X1.6 | 1 шт. | — | |
|
| 31 | 09320-13015 | CUSHION | 3 шт. | — | |
|
| 32 | 11178-13F00 | DAMPER, HEAD CAP RH | 0 шт. | — | |
|
| 33 | 11179-13F01 | BRACKET, HEAD CAP LH | 1 шт. | — | |
|
| 34 | 11179-13F11 | BRACKET, HEAD CAP RH | 1 шт. | — | |
|
