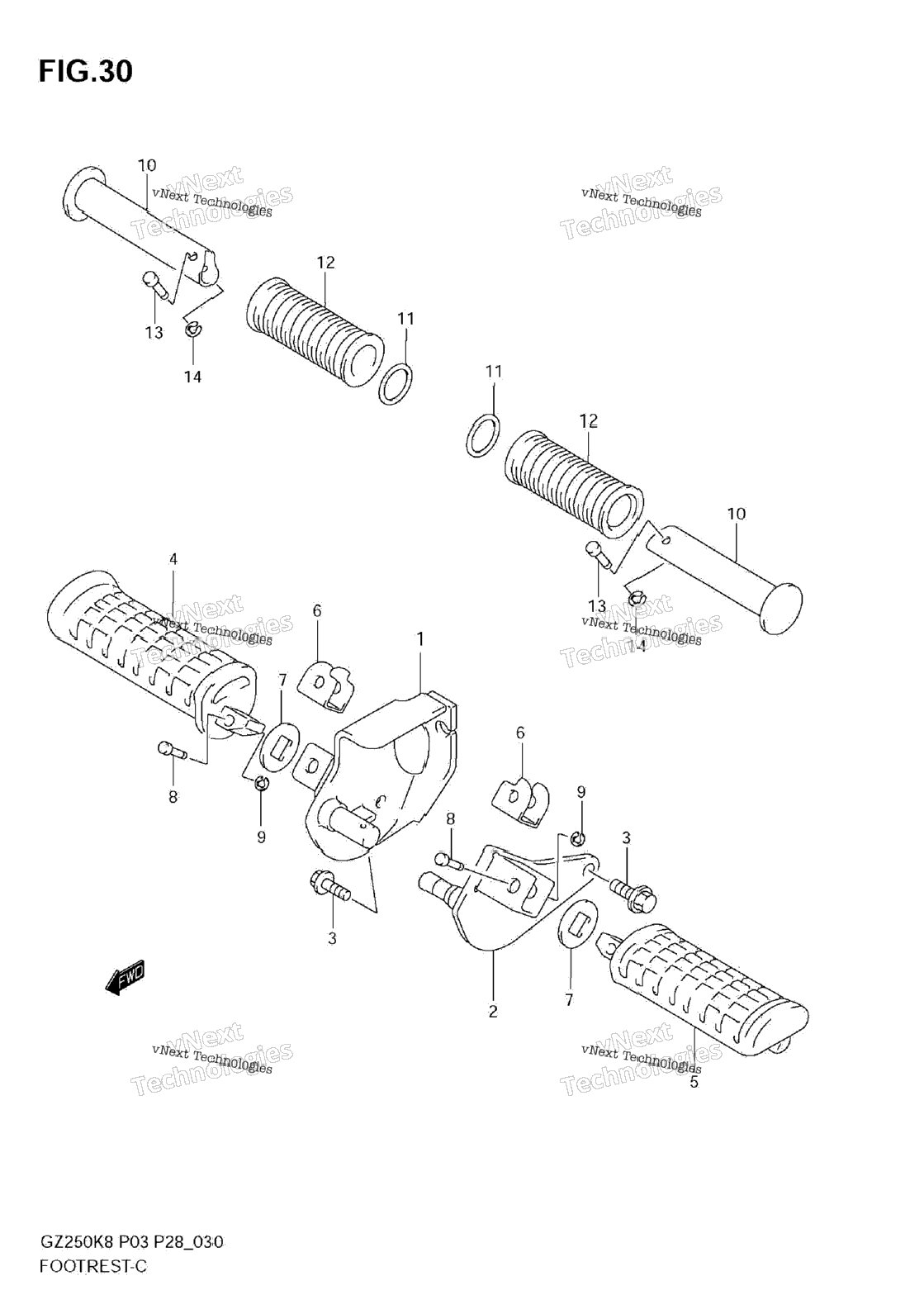

| 1 | 43510-13FA0-EE3 | BRACKET, FRONT FOOTREST RH | 1 шт. | — | |
|
| 2 | 43520-13FA0-EE3 | BRACKET, FRONT FOOTREST LH | 1 шт. | — | |
|
| 3 | 01550-0820B | BOLT | 4 шт. | — | |
|
| 4 | 43550C12FA0JE0Z | RUBBER, FRONT FOOTREST RH | 1 шт. | — | |
|
| 5 | 43560C12FA0JE0Z | RUBBER, FRONT FOOTREST LH | 1 шт. | — | |
|
| 6 | 43570-04F00 | CUSHION, FRONT FOOTREST | 2 шт. | — | |
|
| 7 | 43631-34A01 | WASHER, FOOTREST RUBBER | 2 шт. | — | |
|
| 8 | 09208-06008 | PIN | 2 шт. | — | |
|
| 10 | 43610-03001 | BAR, PILLION FOOTREST | 2 шт. | — | |
|
| 11 | 09160-19024 | WASHER (19.5X32X2.0) | 2 шт. | — | |
|
| 12 | 43612-0AE00 | RUBBER, PILLION FOOTREST | 0 шт. | — | |
|
| 13 | 43636-25D00 | PIN, PILLION FOOTREST | 2 шт. | — | |
|
| 14 | 08332-1104B | E RING | 2 шт. | — | |
|
| 14 | 08332-1104B | E RING | 2 шт. | — | |
|
