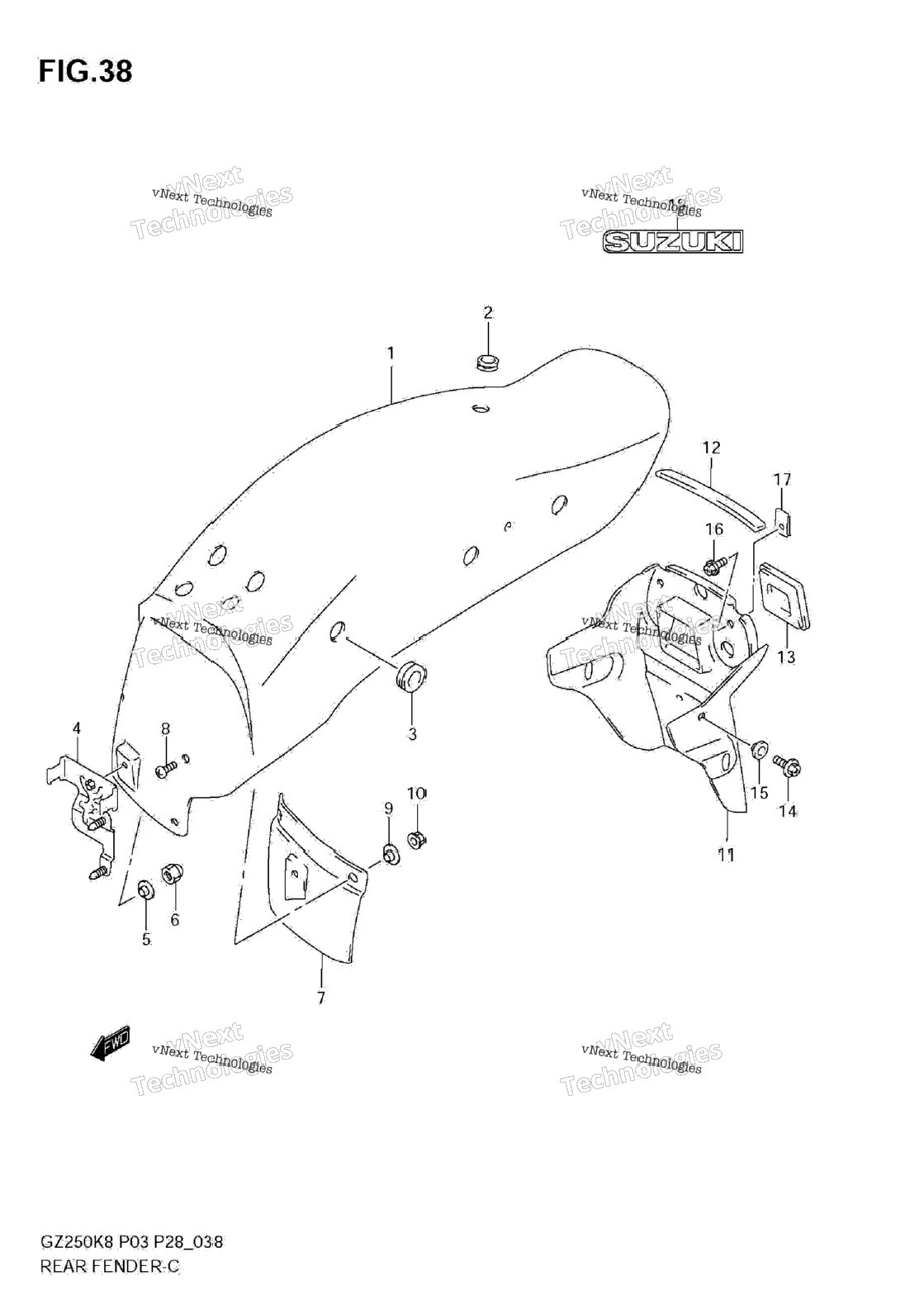

| 1 | 63111-12F00-YAY | FENDER, REAR (BLACK) | 1 шт. | — | |
|
| 2 | 63111-12F00-YHG | FENDER, REAR (GRAY) MODEL K8 | 1 шт. | — | |
|
| 3 | 63111-12F00-YC3 | FENDER, REAR (WHITE) MODEL K9/L0 | 0 шт. | — | |
|
| 4 | 09320-13015 | CUSHION, UPPER | 1 шт. | — | |
|
| 5 | 63118-12F00 | CUSHION, SIDE | 0 шт. | — | |
|
| 6 | 63140-13F00 | BRACKET, REAR FENDER | 0 шт. | — | |
|
| 7 | 09689-06055 | WASHER | 0 шт. | — | |
|
| 8 | 08313-1006B | NUT | 2 шт. | — | |
|
| 9 | 63331C12F00J000 | MUD GUARD, REAR FENDER | 1 шт. | — | |
|
| 10 | 02142-0616B | .SCREW | 2 шт. | — | |
|
| 11 | 09169-06055 | WASHER | 2 шт. | — | |
|
| 12 | 08316-1006B | NUT | 2 шт. | — | |
|
| 13 | 63311C12F00J000 | EXTENSION, REAR FENDER | 0 шт. | — | |
|
| 14 | 63312-48E00 | CUSHION, EXTENSION | 1 шт. | — | |
|
| 15 | 63191-48E00 | CAP, EXTENSION | 1 шт. | — | |
|
| 16 | 02162-0612B | BOLT, SIDE | 2 шт. | — | |
|
| 17 | 09689-06055 | WASHER | 0 шт. | — | |
|
| 18 | 02162-0616B | BOLT, REAR | 2 шт. | — | |
|
| 19 | 47153-19C01 | NUT, REAR FENDER EXT. | 2 шт. | — | |
|
| 20 | 68171-12F00-YD8 | EMBLEM "SUZUKI" (SILVER) FOR YAY, YHG | 0 шт. | — | |
|
| 21 | 68171-12F00-YU8 | EMBLEM "SUZUKI" (GRAY) FOR YC3 | 0 шт. | — | |
|
