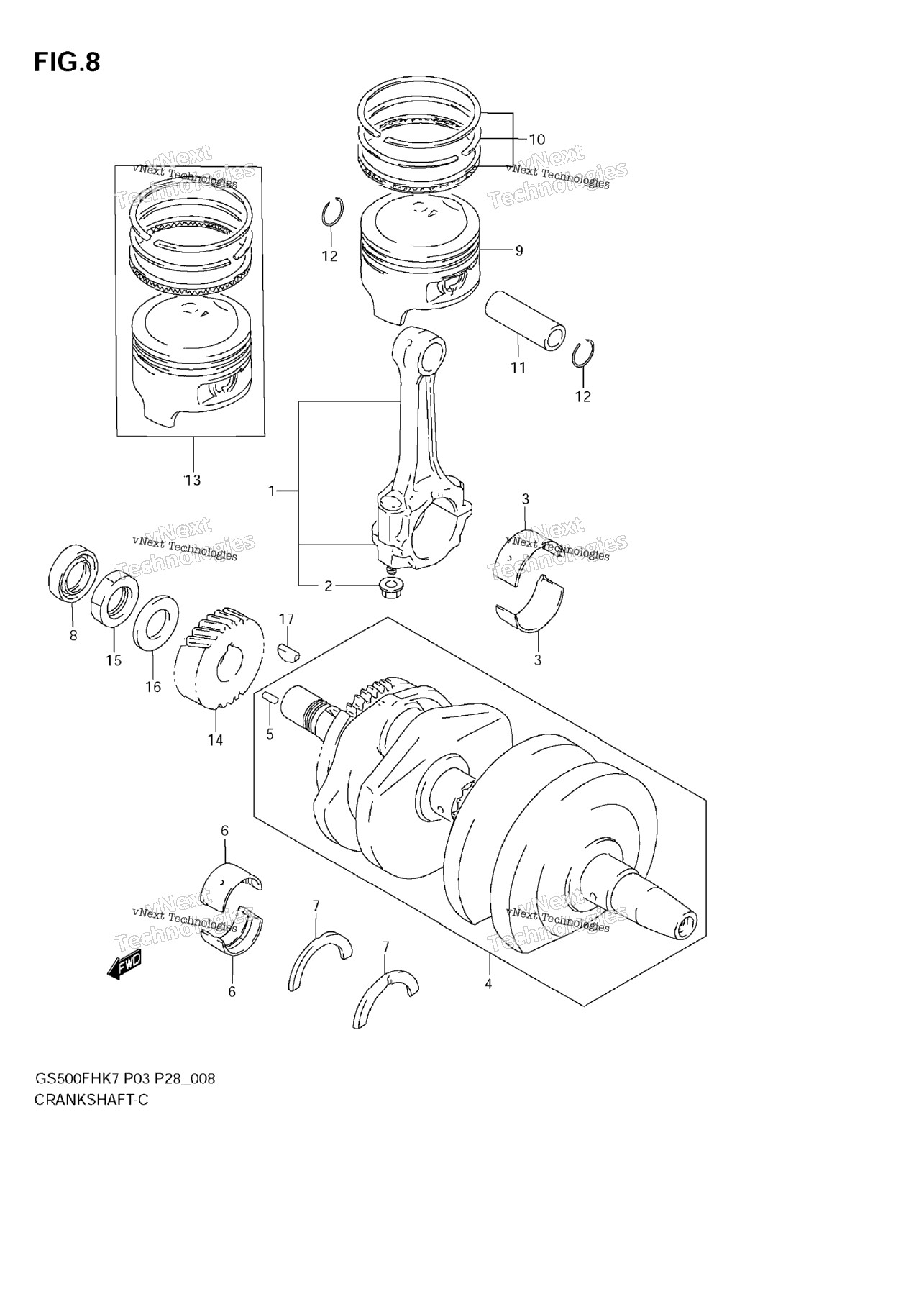

| 1 | 12160-44101 | ROD ASSY, CONNECTING Includes Item(s) 2 | 2 шт. | — | |
|
| 2 | 09159-08033 | NUT | 4 шт. | — | |
|
| 3 | 12164-01D01-0B0 | BEARING, CRANK PIN (BLACK) | 4 шт. | — | |
|
| 3 | 12164-01D01-0C0 | BEARING, CRANK PIN (BROWN) | 4 шт. | — | |
|
| 3 | 12164-01D01-0A0 | BEARING, CRANK PIN (GREEN) | 4 шт. | — | |
|
| 3 | 12164-01D01-0D0 | BEARING, CRANK PIN (YELLOW) | 4 шт. | — | |
|
| 4 | 12220-01D02 | CRANKSHAFT Includes Item(s) 5 | 0 шт. | — | |
|
| 5 | 09202-03016 | PIN | 1 шт. | — | |
|
| 6 | 12229-01D01-0B0 | BEARING, CRANKSHAFT (BLACK) | 8 шт. | — | |
|
| 6 | 12229-01D01-0C0 | BEARING, CRANKSHAFT (BROWN) | 8 шт. | — | |
|
| 6 | 12229-01D01-0A0 | BEARING, CRANKSHAFT (GREEN) | 8 шт. | — | |
|
| 6 | 12229-01D01-0D0 | BEARING, CRANKSHAFT (YELLOW) | 8 шт. | — | |
|
| 7 | 12228-44106 | BEARING, THRUST | 2 шт. | — | |
|
| 8 | 09283-22015 | OIL SEAL, RH (22X40X8) | 1 шт. | — | |
|
| 9 | 12111-01D01-0F0 | PISTON | 2 шт. | — | |
|
| 10 | 12140-01D20 | RING SET, PISTON | 2 шт. | — | |
|
| 11 | 12151-45501 | PIN, PISTON | 2 шт. | — | |
|
| 12 | 09381-18002 | CIRCLIP | 4 шт. | — | |
|
| 13 | 12100-01D00-050 | PISTON SET (OS:0.5) OPT | 2 шт. | — | |
|
| 14 | 21111-44100 | GEAR, PRIMARY DRIVE (NT:28) | 0 шт. | — | |
|
| 15 | 09140-24007 | NUT | 1 шт. | — | |
|
| 16 | 09164-25001 | WASHER | 0 шт. | — | |
|
| 17 | 08341-31059 | KEY | 1 шт. | — | |
|
