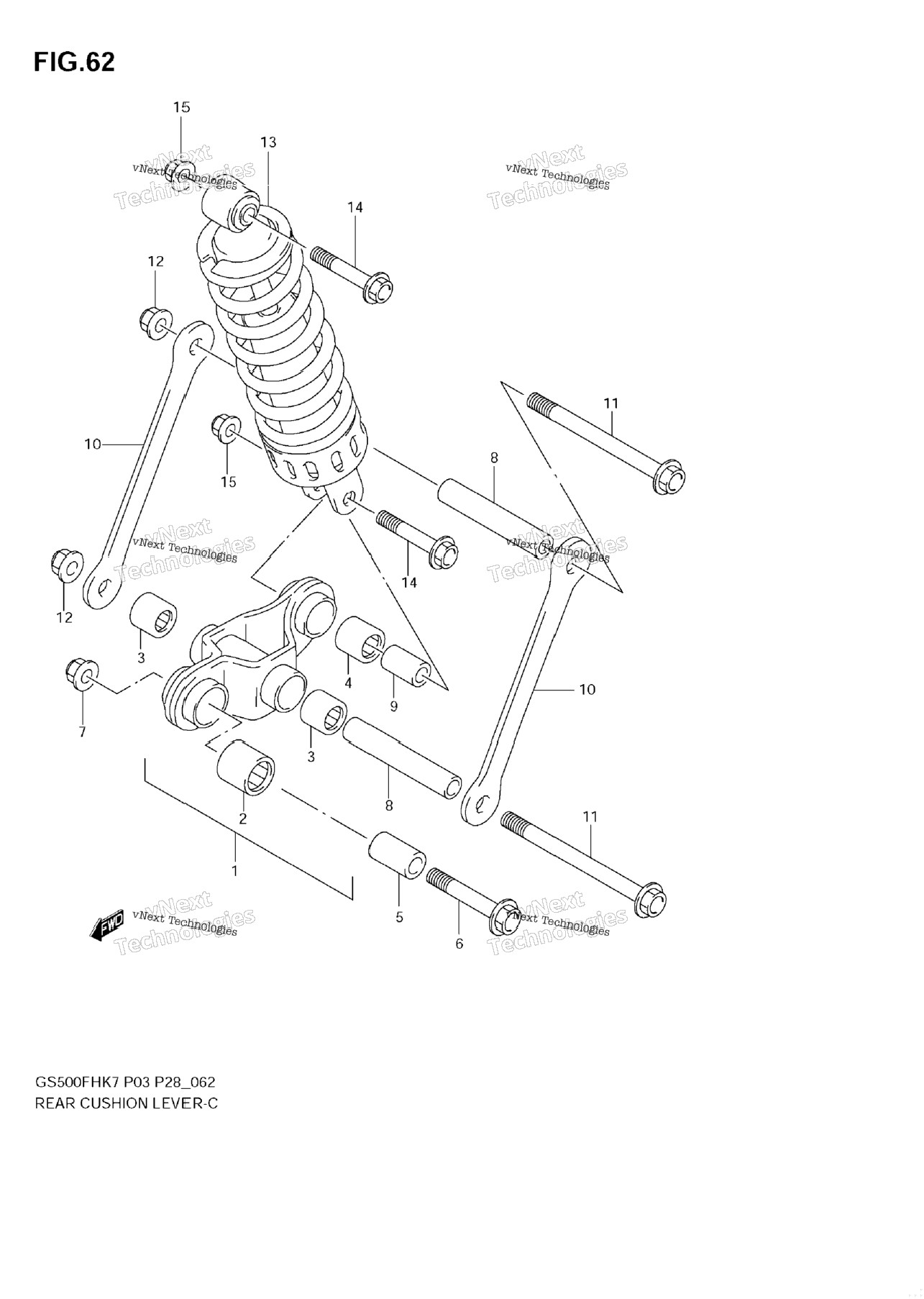

| 1 | 62601-0BE00 | LEVER SET, REAR CUSHION Includes Item(s) 2 - 4 | 0 шт. | — | |
|
| 2 | 09263-20064 | BEARING, FRONT (20X27X26) | 1 шт. | — | |
|
| 3 | 09263-17037 | BEARING (17X24X25) | 2 шт. | — | |
|
| 4 | 09263-17034 | BEARING, REAR (17X24X26) | 1 шт. | — | |
|
| 5 | 62684C01D00J000 | SPACER, FRONT (12X20X30) | 1 шт. | — | |
|
| 6 | 09103-12042 | BOLT, FRONT (12X57) | 1 шт. | — | |
|
| 7 | 09319-3112A | NUT | 0 шт. | — | |
|
| 8 | 09180-12125 | SPACER, CENTER (12X17X89) | 2 шт. | — | |
|
| 9 | 62684C01D10J000 | SPACER, REAR (10X17X30) | 1 шт. | — | |
|
| 10 | 62641C01D02J000 | ROD, REAR CUSHION | 2 шт. | — | |
|
| 11 | 09103C12041J000 | BOLT, CENTER (12X118) | 2 шт. | — | |
|
| 12 | 08319-3112A | NUT | 2 шт. | — | |
|
| 13 | 62100-01D21 | ABSORBER ASSY, REAR SHOCK | 1 шт. | — | |
|
| 14 | 09103-10213 | BOLT (10X52) | 2 шт. | — | |
|
| 15 | 08319-3110A | NUT | 2 шт. | — | |
|
